12" LED Light Bar - 36W Flood/Spot Combo + 2,160 Lumens + IP68 Waterproof
Maximum Light in a Minimum Footprint — The 12" LED Bar Built for Tight Spaces
Stop sacrificing visibility just because you have limited mounting real estate. This 12" LED light bar from 50 Caliber Racing packs 2,160 lumens of 6000K white light into a compact package through 12 high-output 3-watt LEDs in a flood and spot combo beam. Built to IP68 standards — fully submersible — with a pivoting mount system and simple 2-wire install. Whether you are running it as a ditch light, a pod replacement, or a tight-space auxiliary bar, this unit delivers serious output without taking up serious space.
Why Riders Choose This Light Bar
- 36 Watts of Output — 12 LEDs at 3 watts each, punching well above its size class
- 2,160 Lumens at 6000K — Crisp daylight-white light that cuts through dust and darkness
- Flood + Spot Combo Beam — Wide flood coverage plus long-range spot throw in a single compact bar
- IP68 Waterproof Rating — Fully submersible, handles mud, rain, river crossings, and pressure washing
- 50,000 Hour Life Expectancy — Long-lasting LEDs that hold up through seasons of hard use
- Pivoting Mounting System — Adjustable aim angle right out of the box
- Simple 2-Wire Install — Straightforward wiring, no harness headaches
- 9-36V DC Compatible — Works on 12V and 24V electrical systems
Perfect For
💡 Ditch lights | 🏍️ A-arm mounts | 🚜 Truck and Jeep auxiliary lighting | 🏎️ Tight-space UTV builds | 🌊 Mud and water crossings
Complete Kit Includes
- ✓ 12" LED light bar
- ✓ Pivoting mounting hardware
- ✓ Free 50 Caliber Racing koozie
Technical Specifications

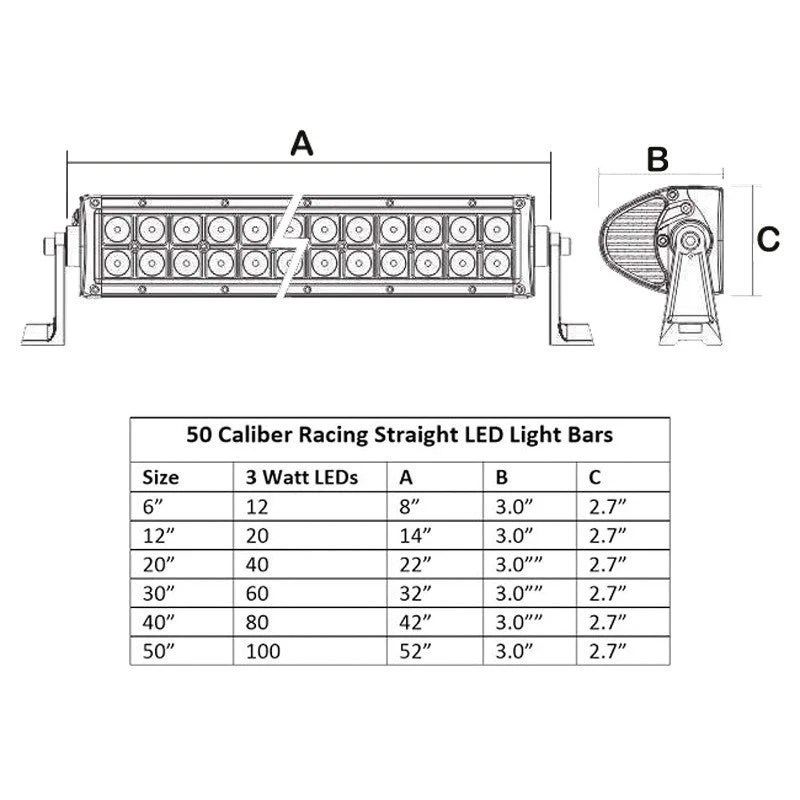

| Size | 12" (L) x 2.7" (H) x 3" (D) |
| Mount Width | 14" between side mounts |
| Total Wattage | 36W (12 x 3W LEDs) |
| Lumens | 2,160 Lumens |
| Color Temperature | 6000K |
| Beam Pattern | Flood + Spot Combo |
| Voltage | 9-36V DC (12V and 24V compatible) |
| Amperage | 4A at 12V / 2A at 24V |
| IP Rating | IP68 (fully submersible) |
| Life Expectancy | 50,000 hours |
| Wiring | 2-wire installation |
| Warranty | 1 Year |
Vehicle Fitment
- Universal fit — compatible with any vehicle with a 14" mounting span and 9-36V DC electrical system
Why Compact LED Bars Are the Smart Auxiliary Lighting Choice
Not every lighting application calls for a 40" bar across the roof. Ditch lights, A-arm mounts, bumper pods, and hood-edge positions all demand a compact, high-output unit that can be aimed precisely and mounted in tight spaces. The 12" bar hits that sweet spot — small enough to tuck into almost any mounting location, bright enough to make a real difference in your field of view. The IP68 rating means you do not have to baby it around water or mud, and the 50,000-hour life expectancy means you are not replacing it every season. Run one, run two, run four — the 2-wire install keeps your electrical system clean no matter how many you add.
Running two of these as ditch lights on my RZR. The output is impressive for the size. IP68 is legit — went through a full mud bog and they never flickered. — Verified Buyer
Mounted one on my front bumper as a spot light. Easy 2-wire install, great beam pattern. Exactly what I needed for a tight mounting spot. — Verified Buyer
100% Risk-Free With R1 Protect
- 30-Day Returns — Not the right fit? Send it back, no hassle
- Fast Shipping — In stock and ready to ship
- Expert Support — 801-899-2520 | Real UTV techs, not a call center
⚡ Ready to Add Serious Light in a Small Package?
In Stock Now
Join thousands of off-road riders who trust R1 Industries for compact, high-output lighting.
Stop compromising on lighting because of space. 2,160 lumens, IP68 rated — big output, small footprint.
Original: $49.98
-65%$49.98
$17.49
