12-Way LED Screw Fuse Block - 100A Input + Blown Fuse Indicator + ATO/ATC (6V-32V Universal)
12-Way LED Screw Fuse Block - 100A Input + Blown Fuse Indicator + ATO/ATC (6V-32V Universal)
Clean Up Your Electrical Build — 12 Protected Circuits in One Compact Block

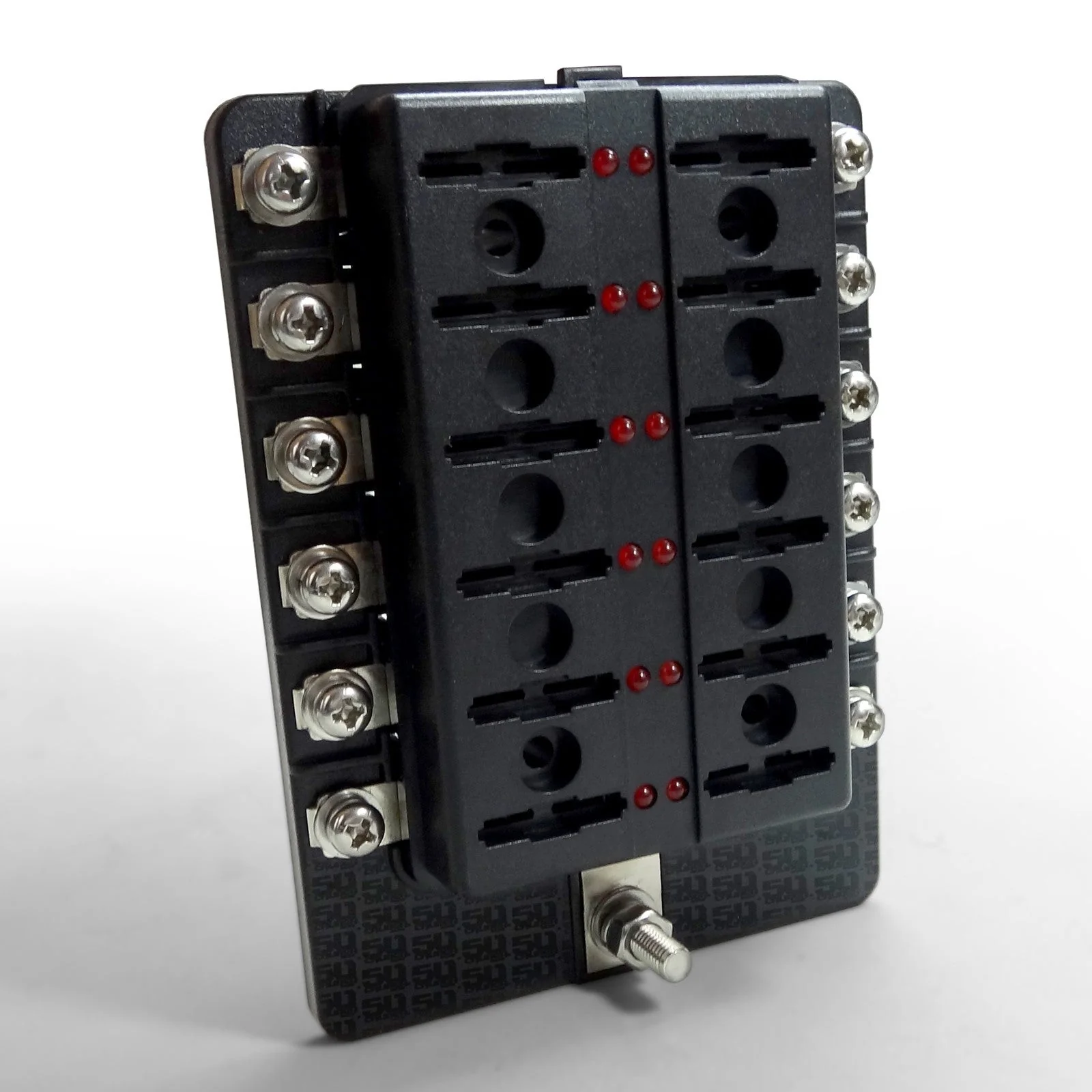

Stop running a rats nest of inline fuses and unprotected circuits. This 12-way screw fuse block from 50 Caliber Racing gives you a single, organized distribution point for up to 12 independent circuits with both positive and negative terminals on board. Each circuit is protected by a standard ATO/ATC screw fuse and equipped with a red LED that illuminates the moment a fuse blows — no more hunting through a dark cab trying to find the dead circuit. Rated for 6V, 12V, and 24V systems up to 32V max, it works across automotive, UTV, truck, and marine applications.
Why Builders Choose This Fuse Block
- 12 Independent Circuits — Enough capacity for lights, accessories, winch, audio, and more in a single block
- LED Blown Fuse Indicators — Red LEDs illuminate instantly when a fuse blows, making diagnosis fast and easy
- Positive and Negative Terminals — Full distribution board with both bus sides on board, no separate ground block needed
- 100A / 32V DC Input Rating — Handles serious electrical loads across 6V, 12V, and 24V systems
- 30A Max Per Circuit — Plenty of headroom for high-draw accessories like light bars and winches
- Standard ATO/ATC Screw Fuses — Common fuse type available everywhere, easy to replace in the field

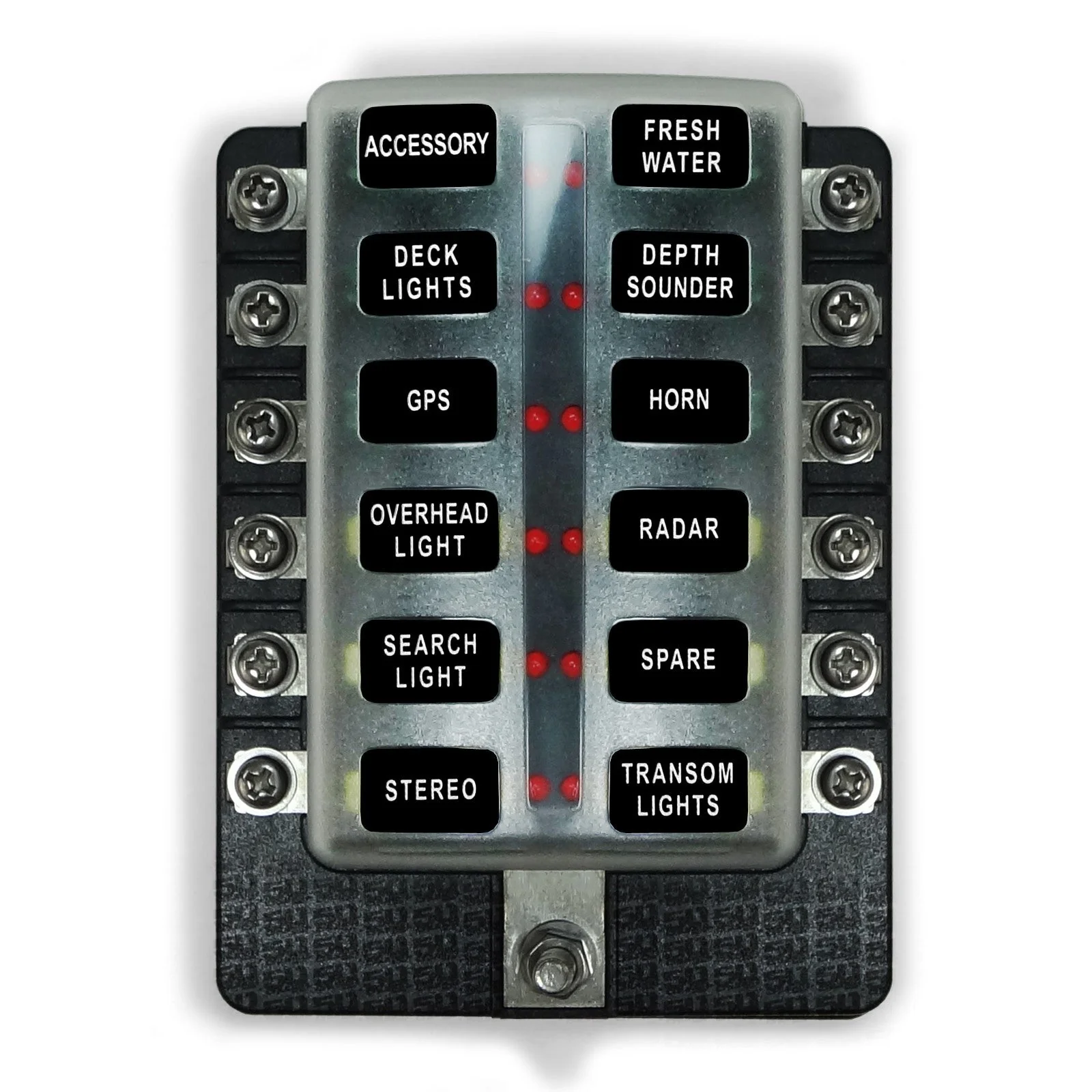

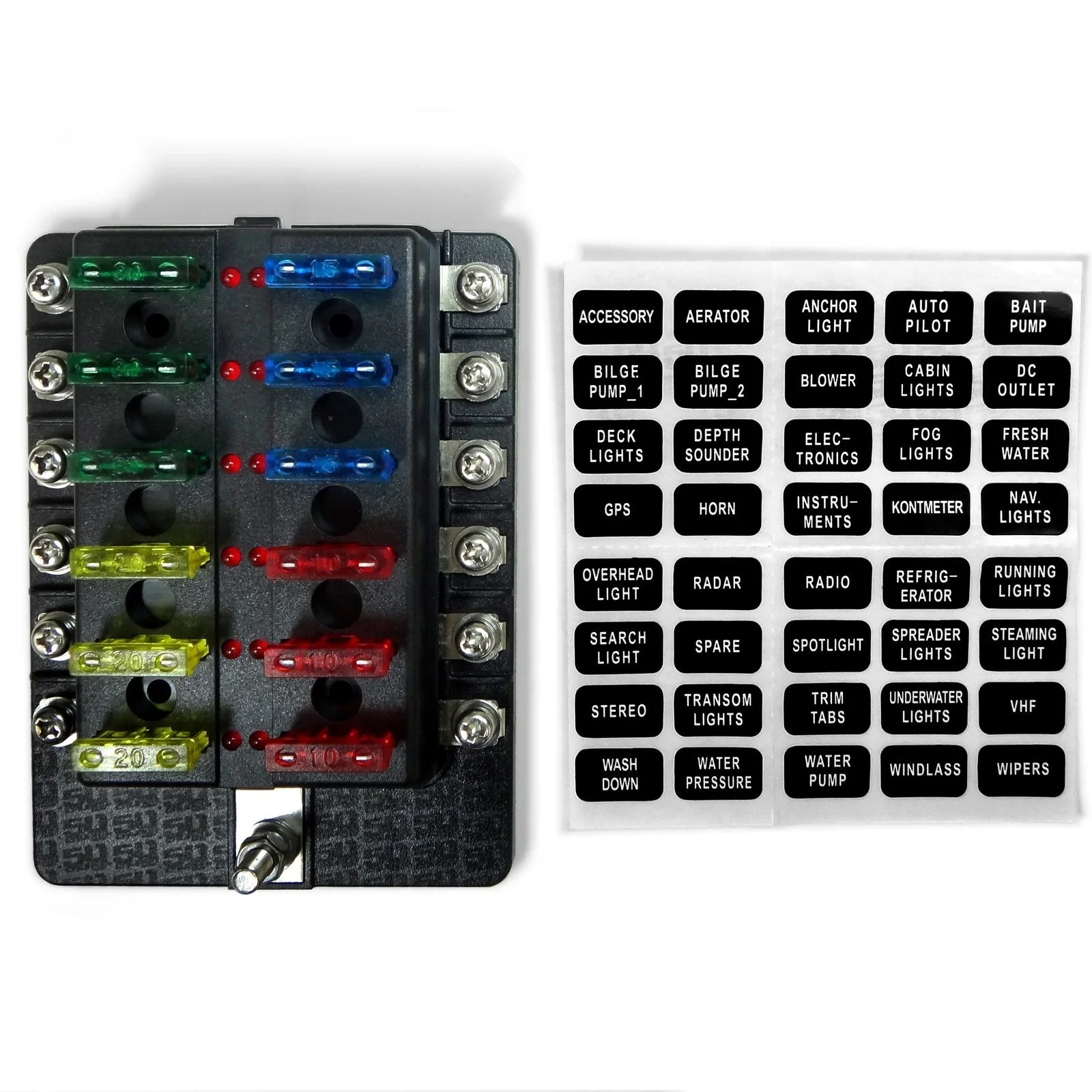

- Custom Labeled Circuits — Labeled sticker set included for easy circuit identification

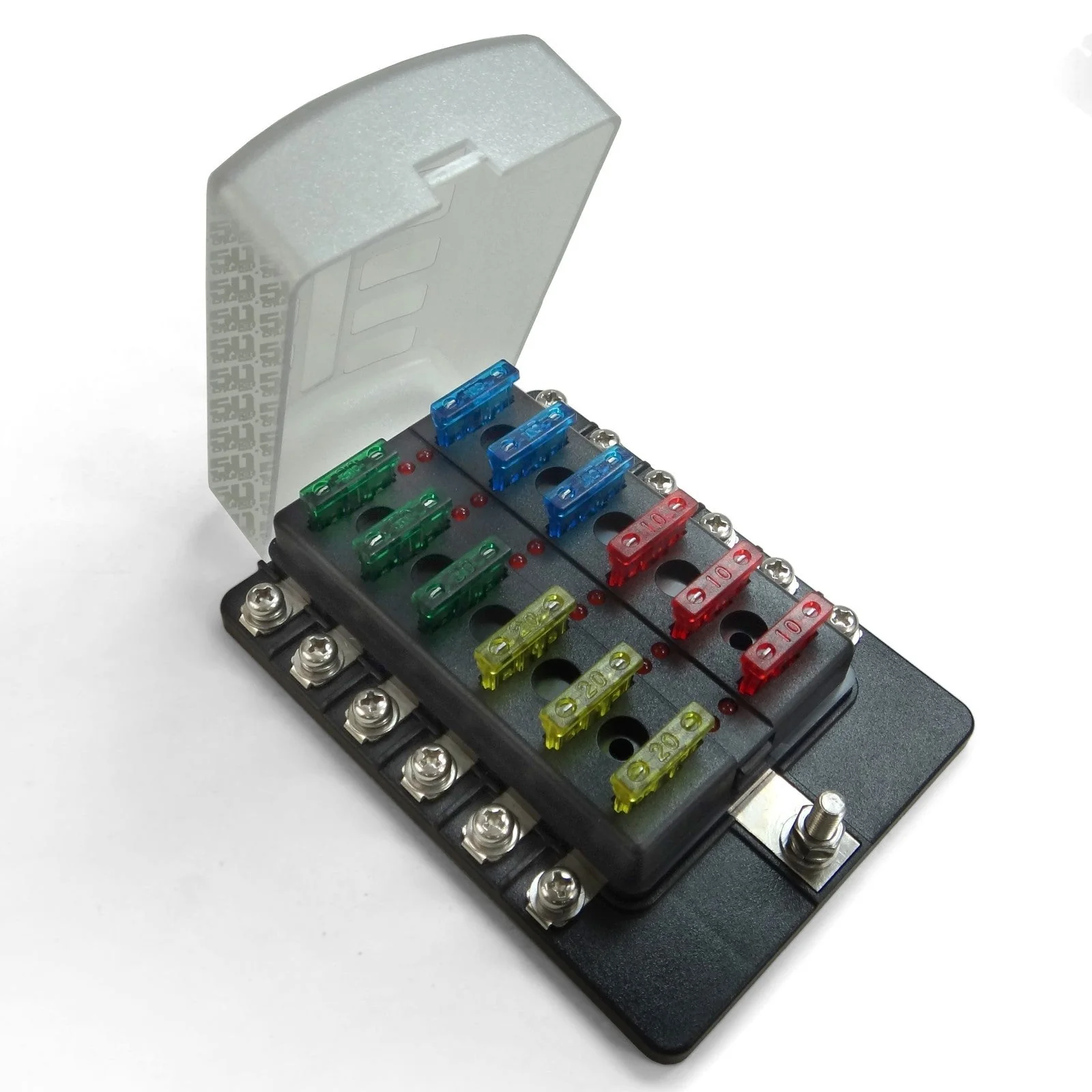

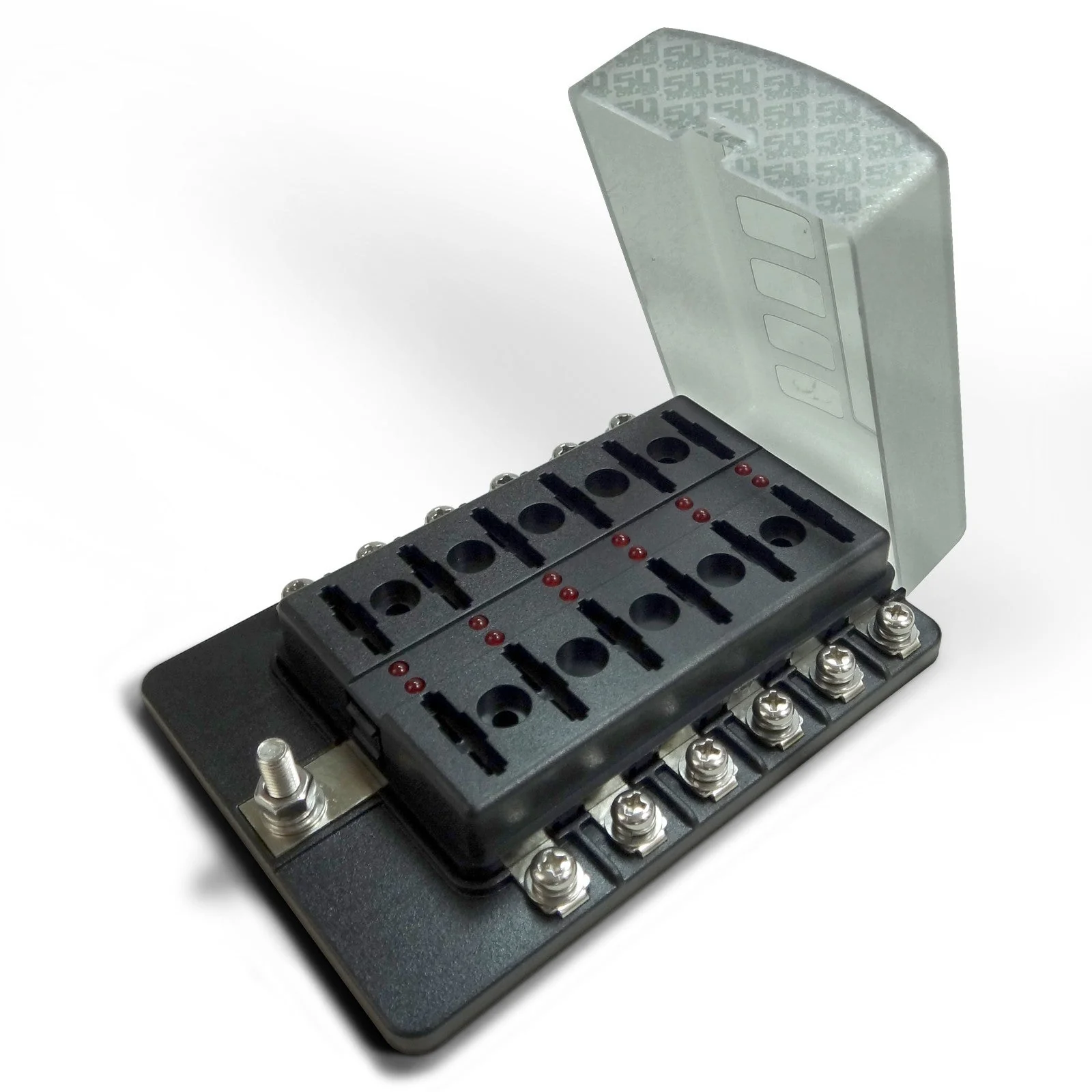

- Clear Cover Included — Protects fuses from moisture and debris
Perfect For
💡 UTV and off-road builds | 🚚 Truck and Jeep electrical upgrades | ⛵ Marine and boat wiring | 🔧 Custom accessory installs | 🏎️ Race vehicle electrical systems

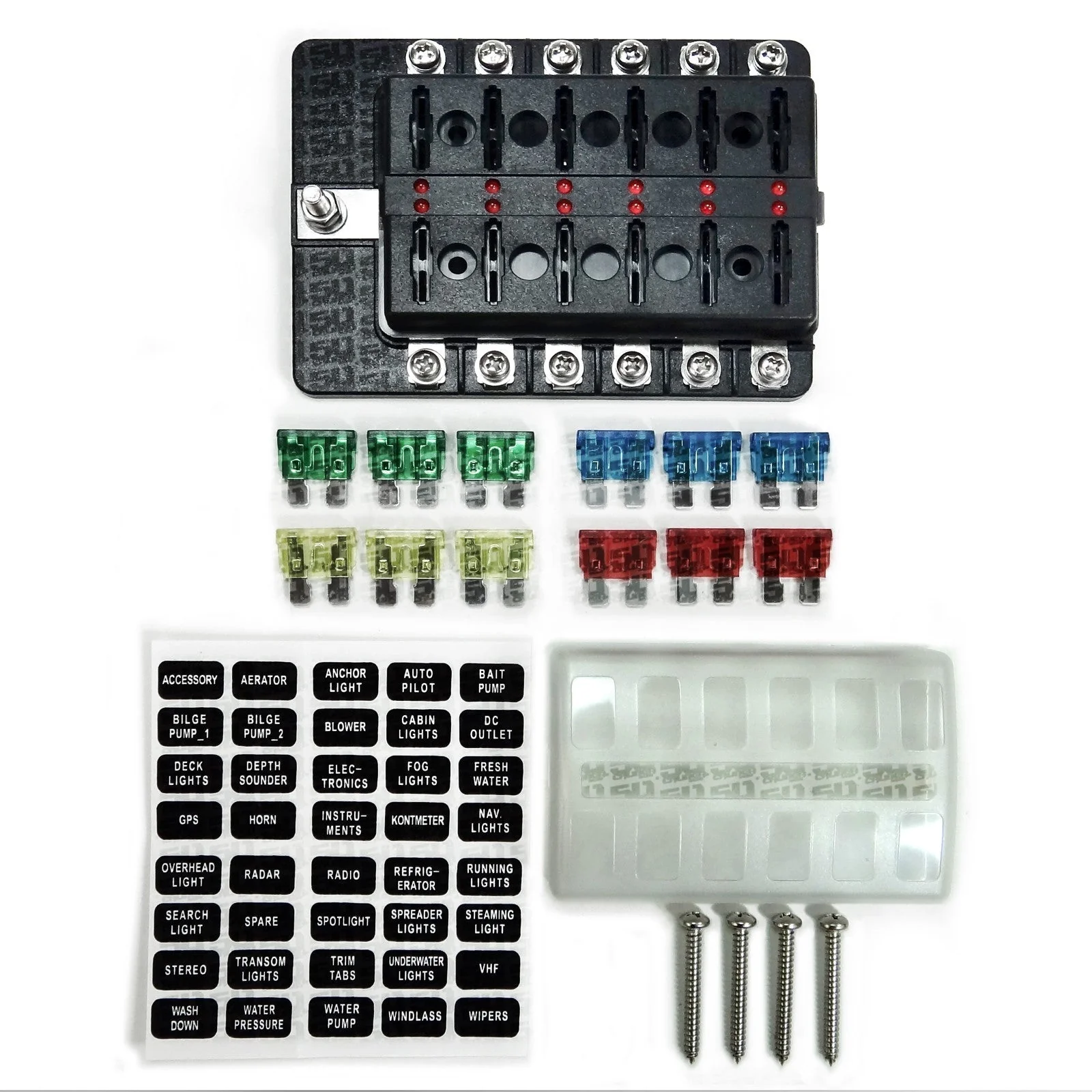

Complete Kit Includes
- ✓ 12-way screw fuse box base
- ✓ Clear protective cover
- ✓ Labeled sticker set
- ✓ 4 mounting screws
- ✓ Fuses: 10A (x3), 15A (x3), 20A (x3), 30A (x3)
Technical Specifications
| Circuits | 12-way |
| Terminal Input Rating | 100A / 32V DC max |
| Output Per Circuit | 30A max |
| Input Bus Wire Size | #4–6 AWG |
| Output Terminal Wire Size | #12–16 AWG |
| Fuse Type | Standard Screw Fuse (ATO / ATC) |
| Voltage Compatibility | 6V, 12V, 24V (32V max) |
| Dimensions | ~115mm x 85mm x 35mm (4.53" x 3.34" x 1.38") |
| LED Indicators | Red LED per circuit, illuminates on blown fuse |
Vehicle Fitment
- Universal — compatible with any 6V, 12V, or 24V DC electrical system up to 32V
Why a Dedicated Fuse Block Beats Inline Fuses Every Time
Inline fuses scattered throughout your wiring harness are a maintenance nightmare. They are hard to find, hard to replace in the field, and give you no visual indication of which circuit has failed. A centralized fuse block changes all of that. Every circuit is in one place, labeled, and protected. The LED indicators on this block mean you can diagnose a blown fuse in seconds instead of minutes — critical when you are on the trail at night and something stops working. The screw-type fuse holders are more secure than push-in designs and less prone to vibration-induced failures on rough terrain. If you are building a clean electrical system, this is the foundation it starts with.
Used this on my RZR build to consolidate all my accessory circuits. The LED indicators are a game changer — found a blown fuse in seconds on the trail. Clean install, solid build quality. — Verified Buyer
Installed in my truck for all my aftermarket accessories. Labeled stickers make it easy to know exactly which circuit is which. Way cleaner than running inline fuses everywhere. — Verified Buyer
100% Risk-Free With R1 Protect
- 30-Day Returns — Not the right fit? Send it back, no hassle
- Fast Shipping — In stock and ready to ship
- Expert Support — 801-899-2520 | Real UTV techs, not a call center
⚡ Ready to Clean Up Your Electrical System?
In Stock Now
Join thousands of builders who trust R1 Industries for organized, reliable electrical components.
Stop chasing inline fuses. 12 protected circuits, LED indicators, everything labeled — build it right the first time.
Original: $24.99
-65%$24.99
$8.75
