Chromoly Uniball Cups with Snap Ring
50 Caliber Racing Heavy Duty Chromoly Uniball Cups

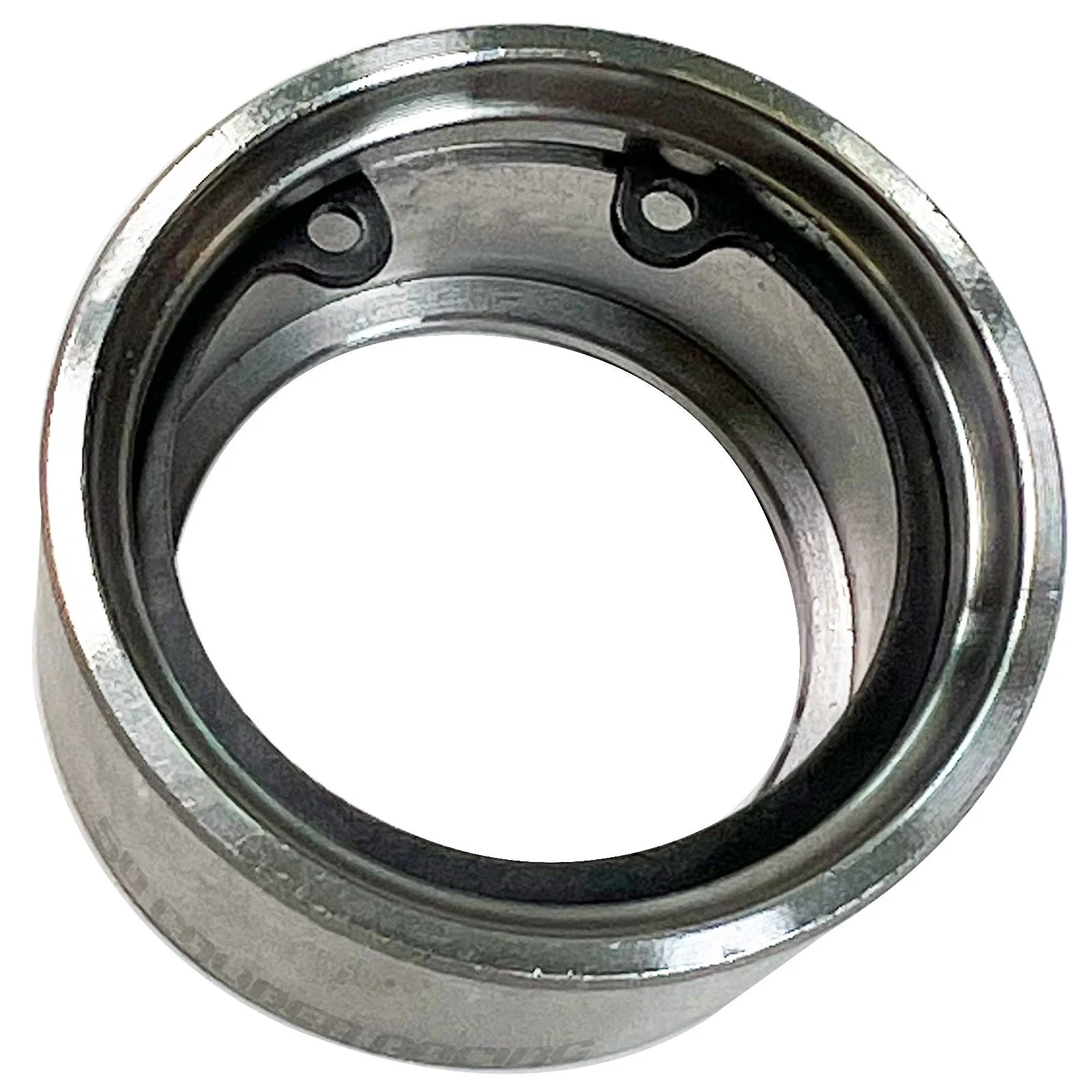

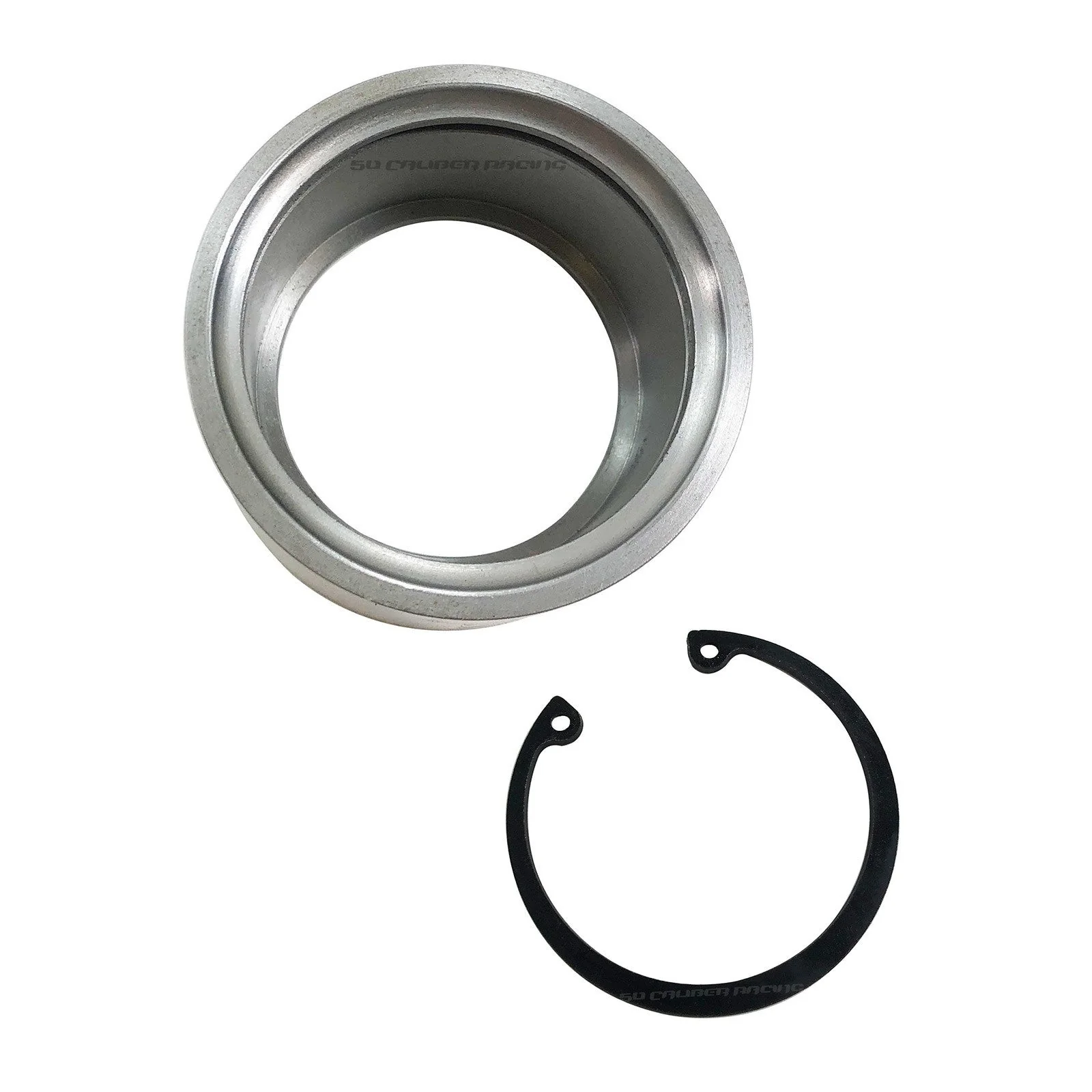

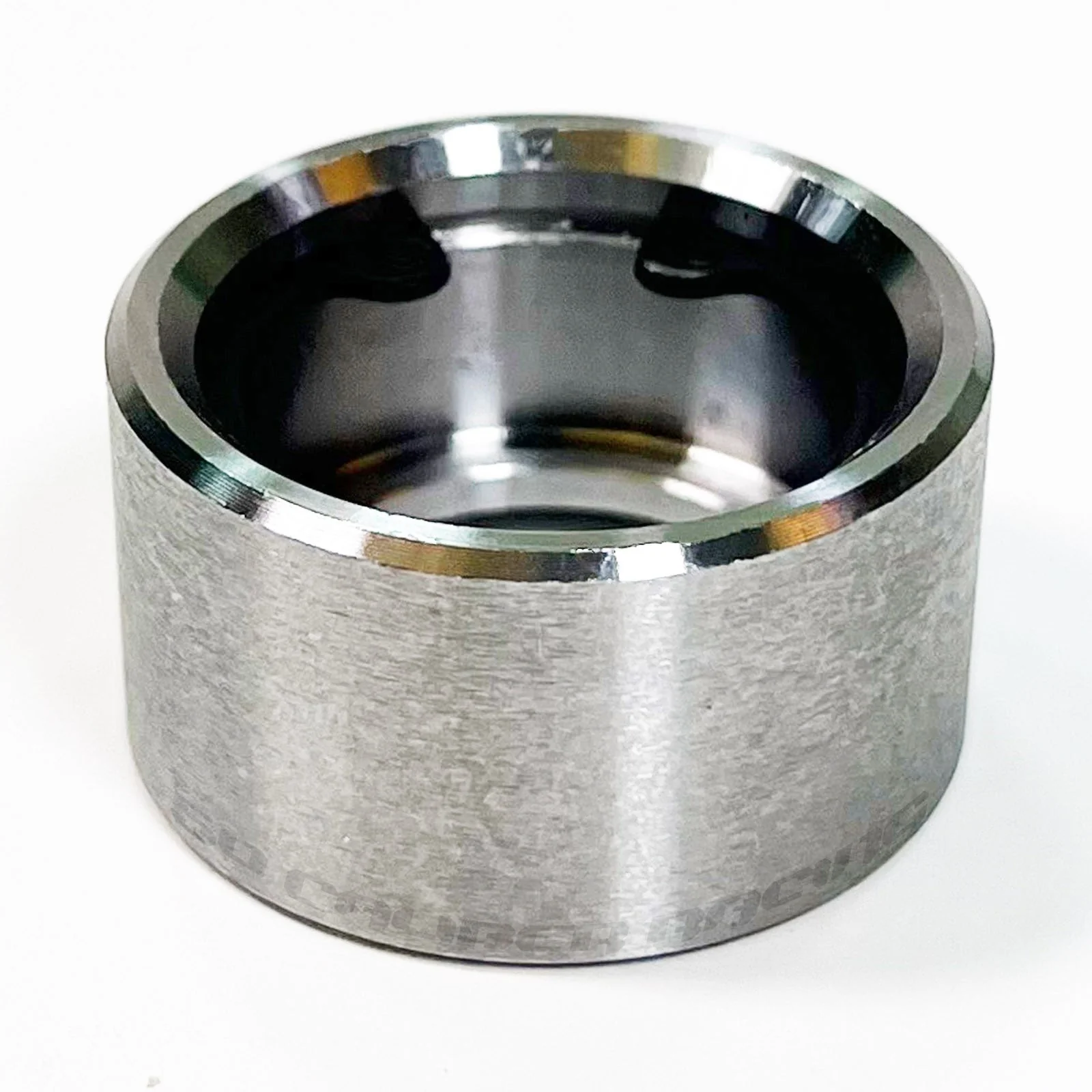

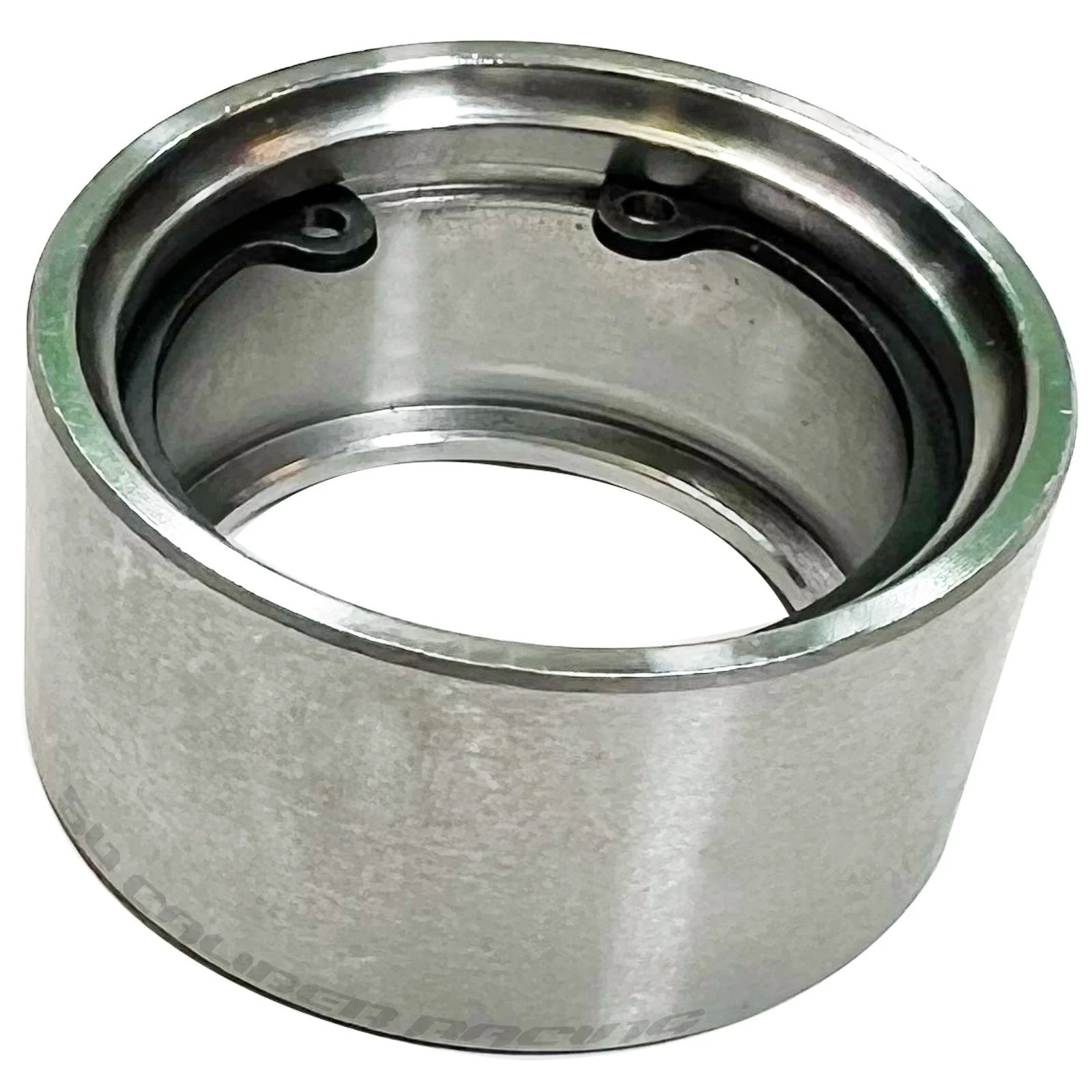

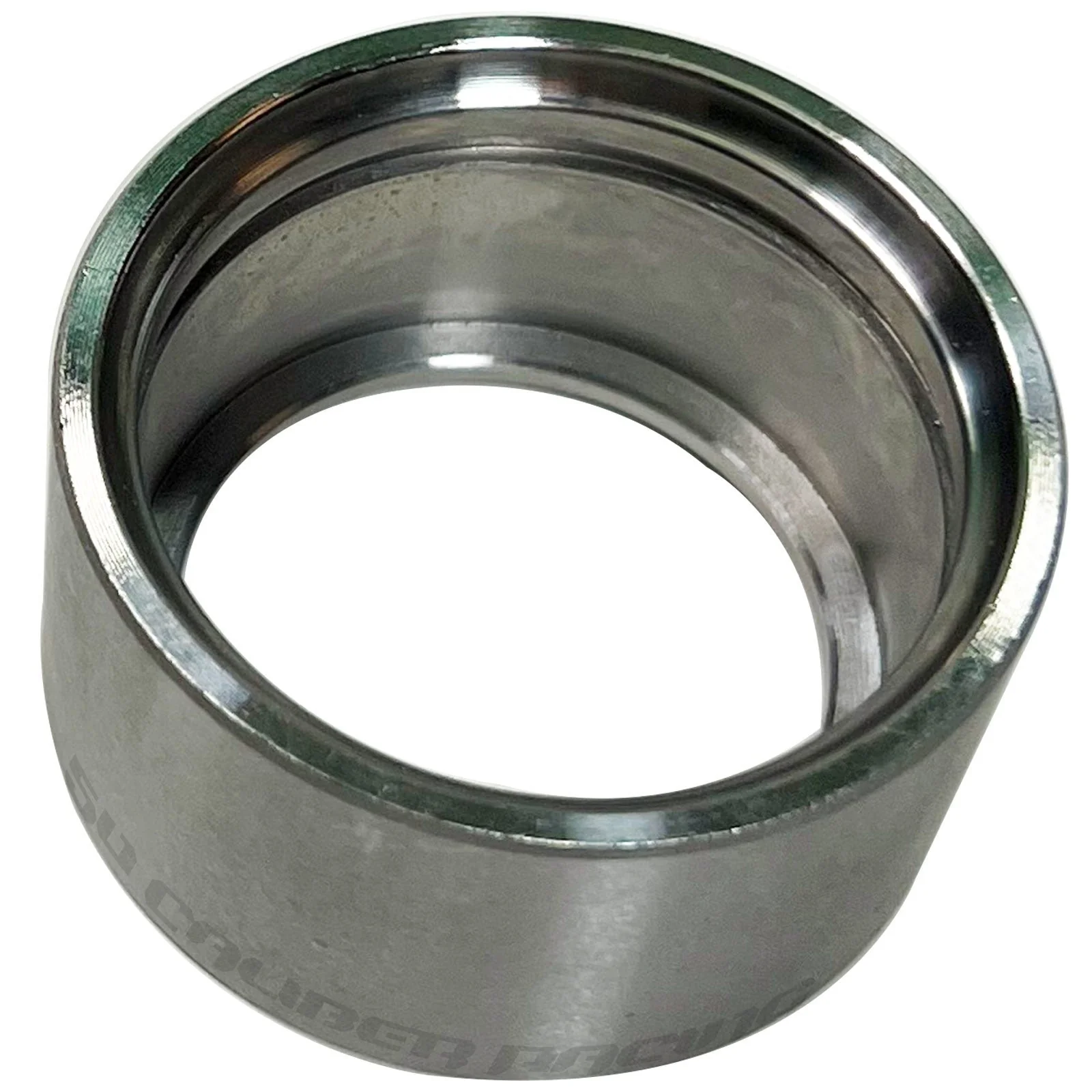

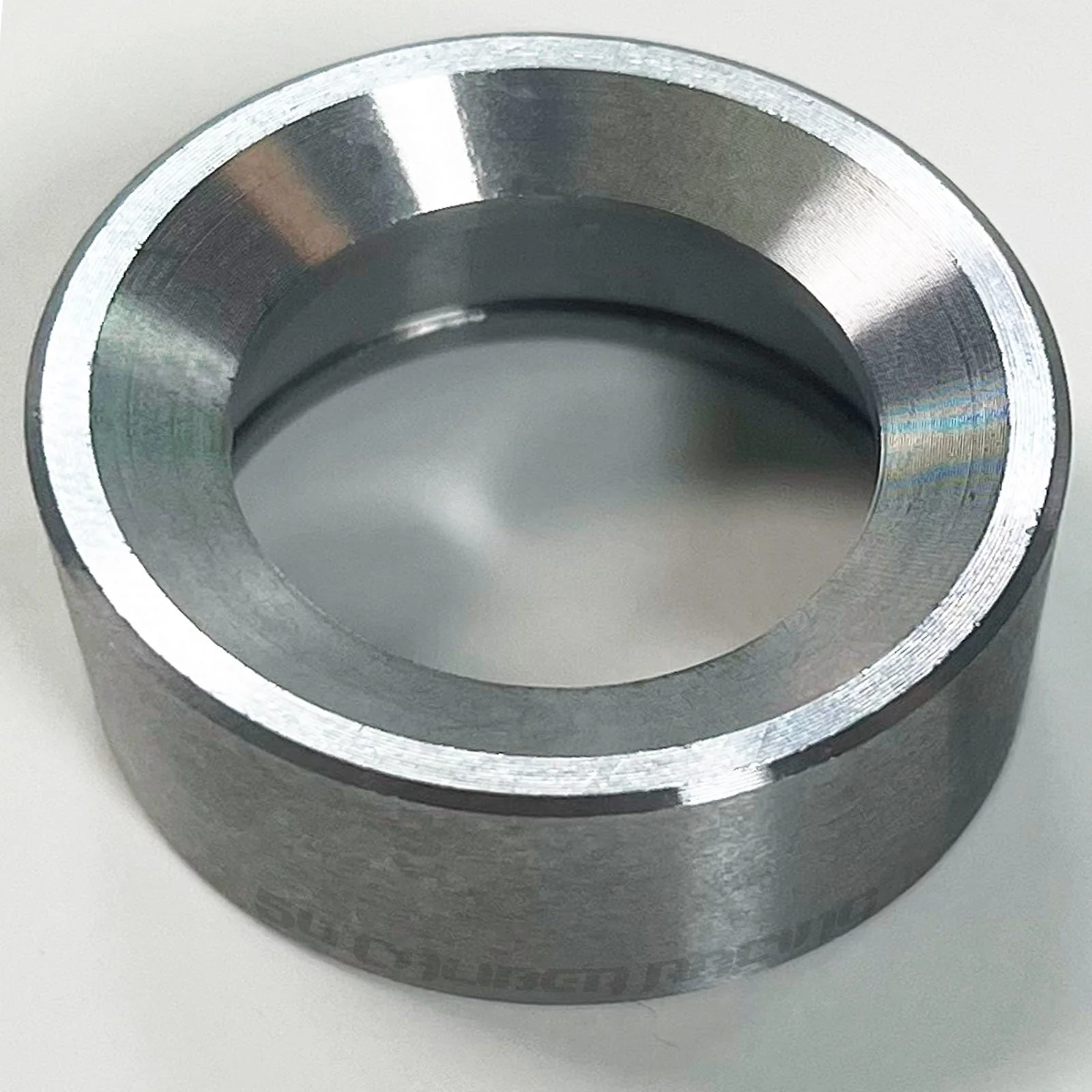

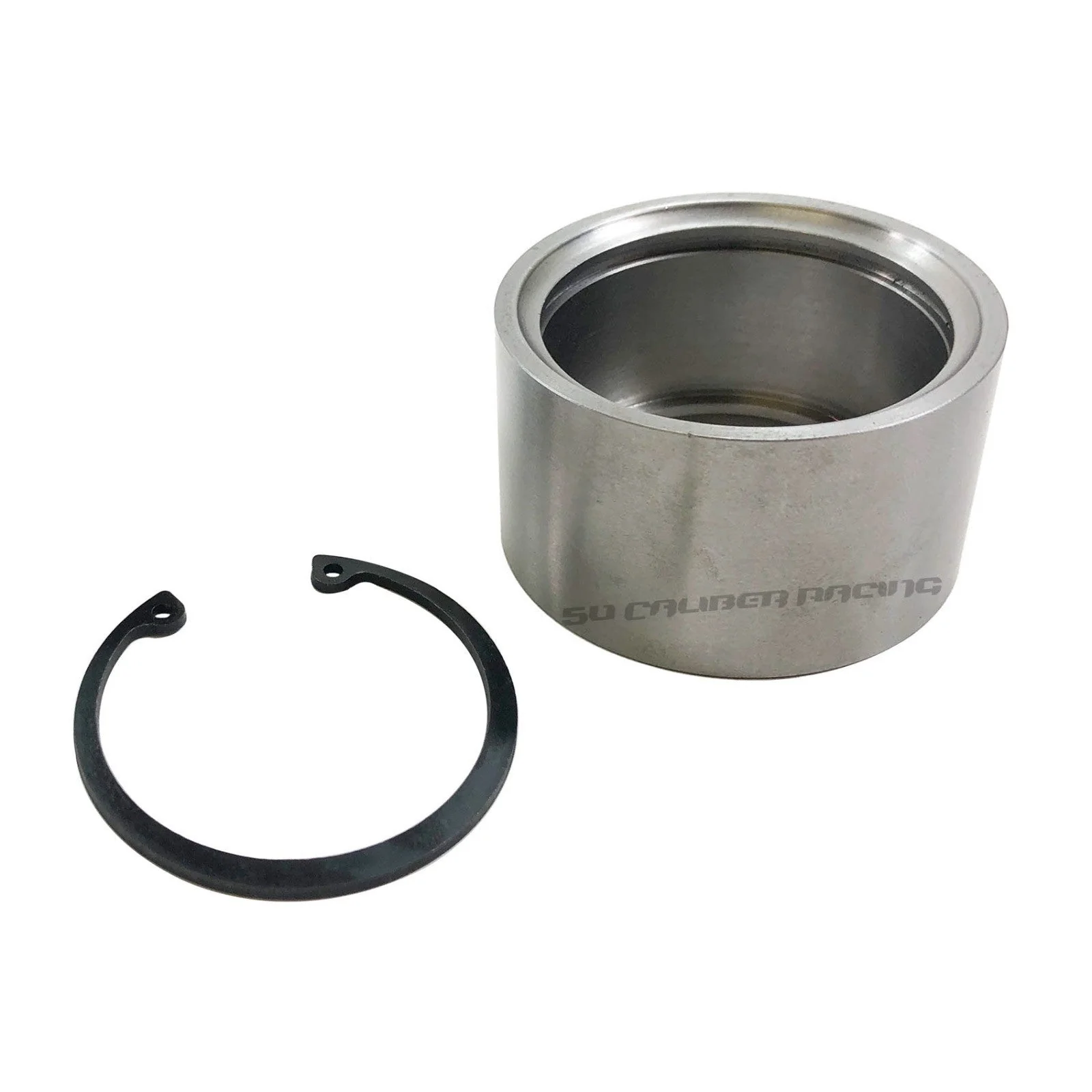

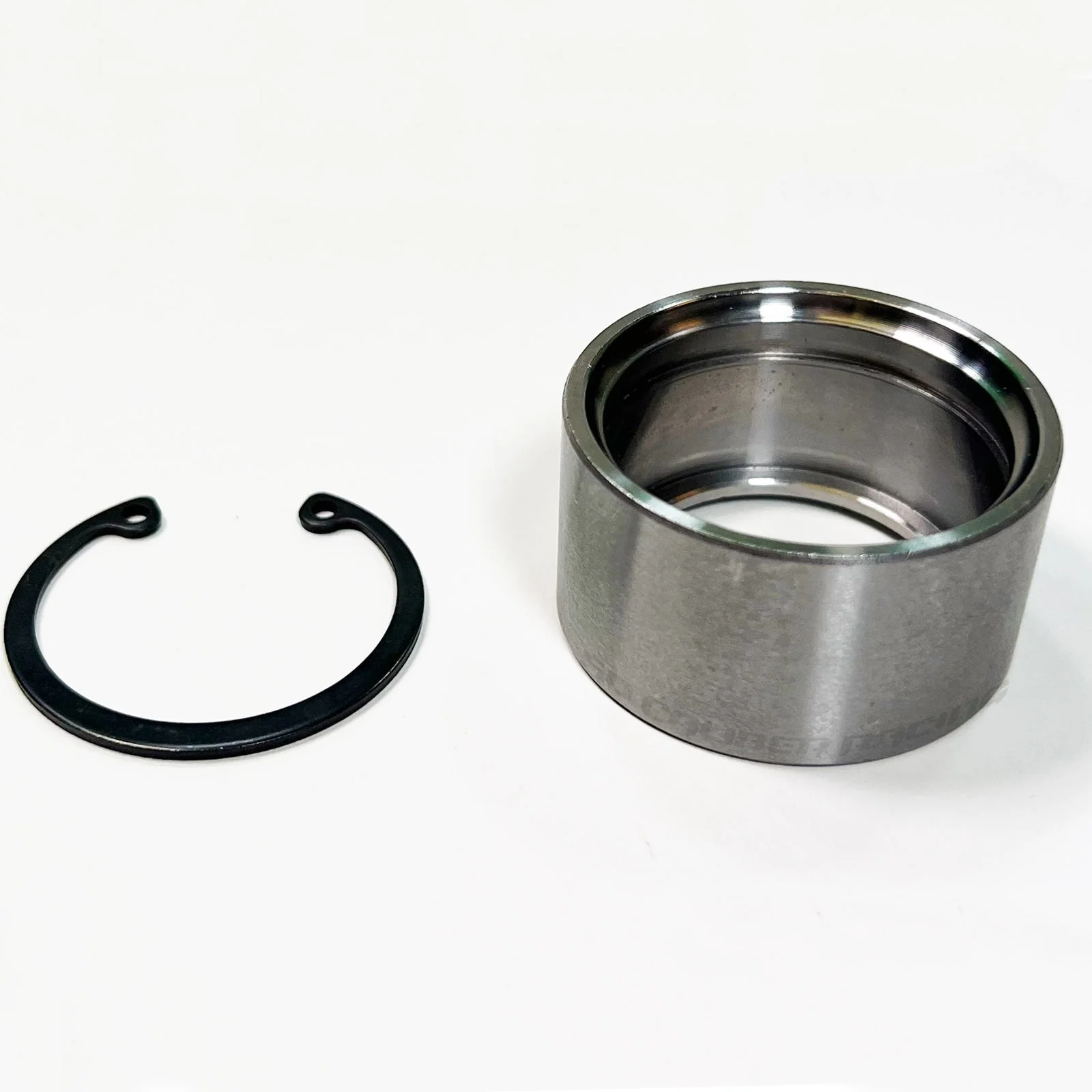

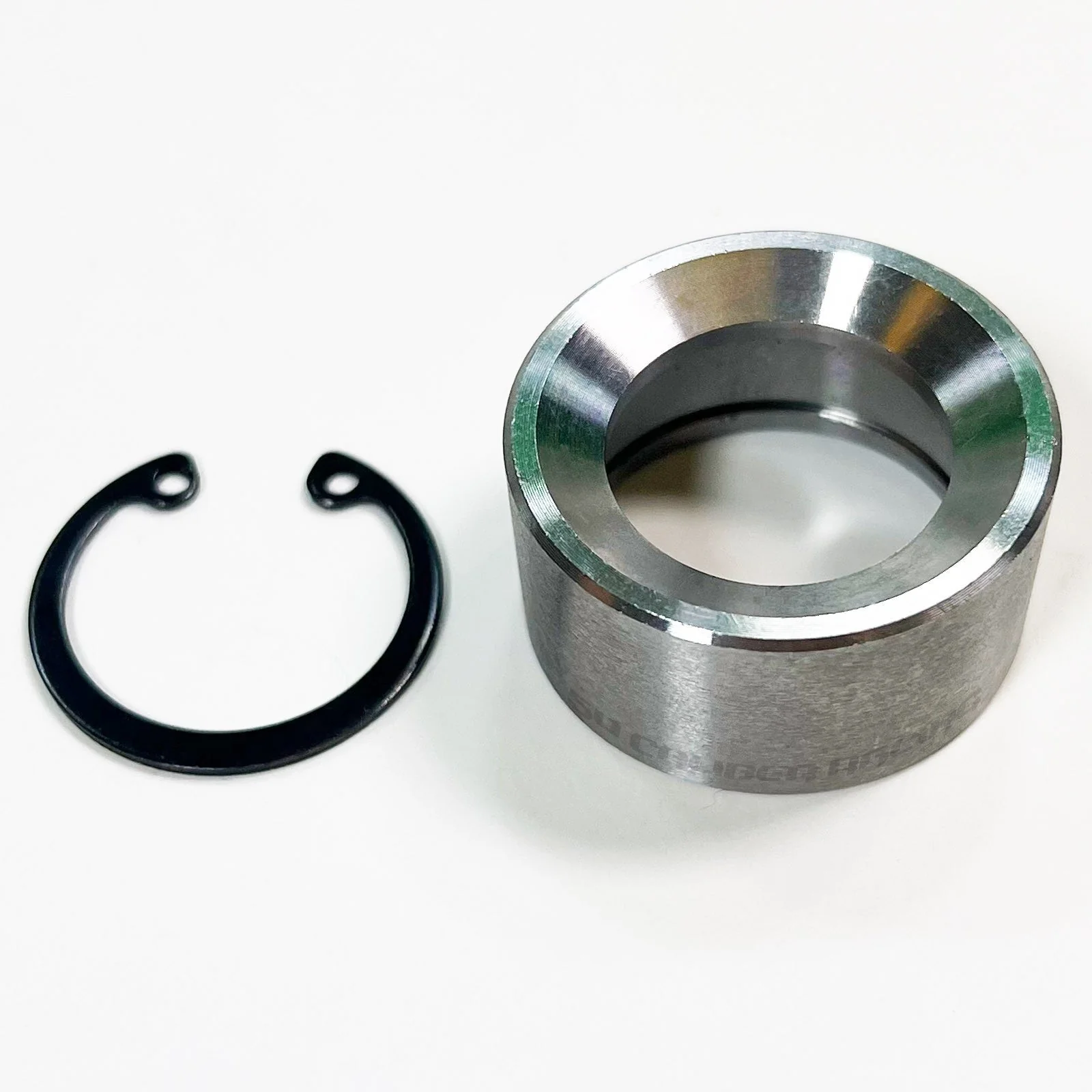

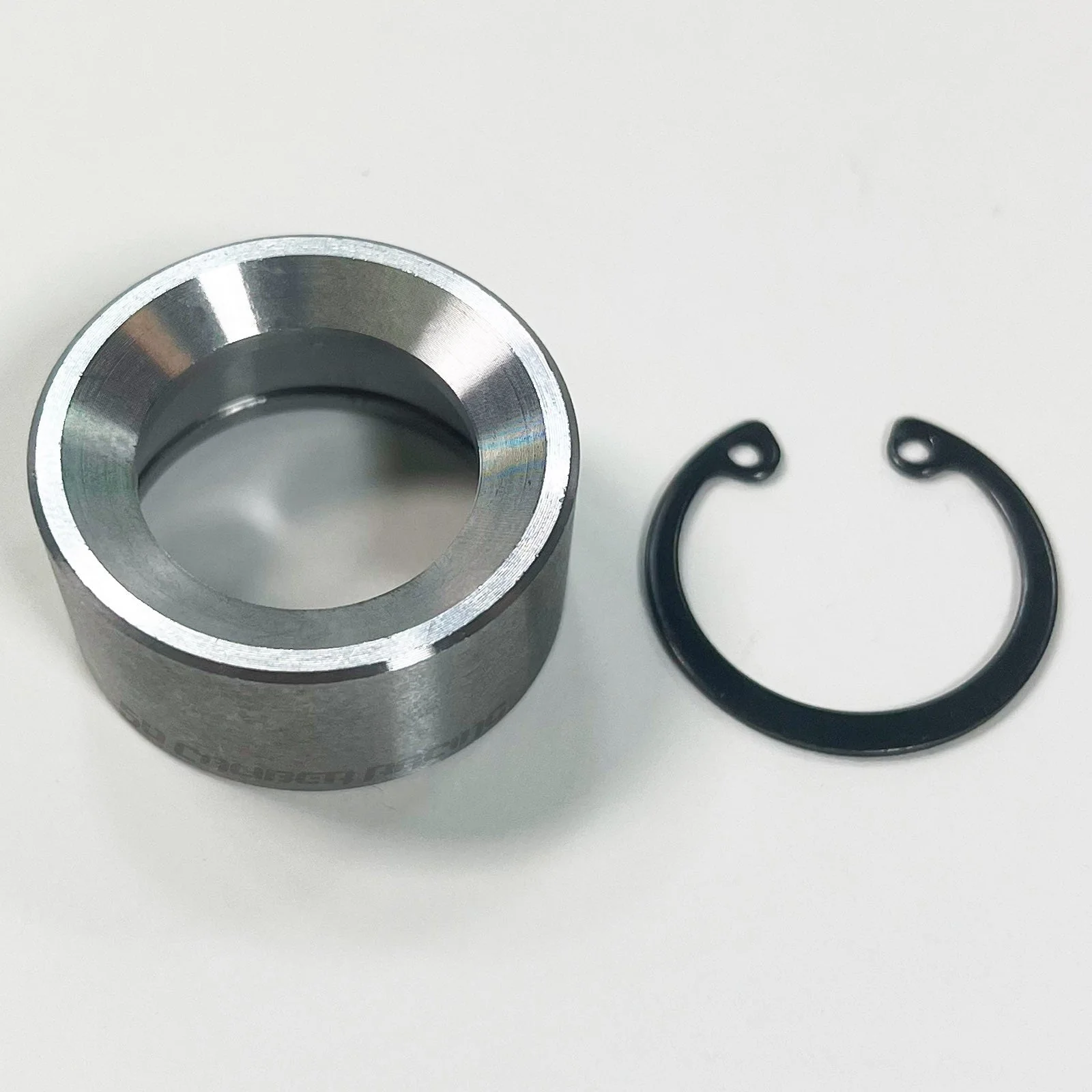

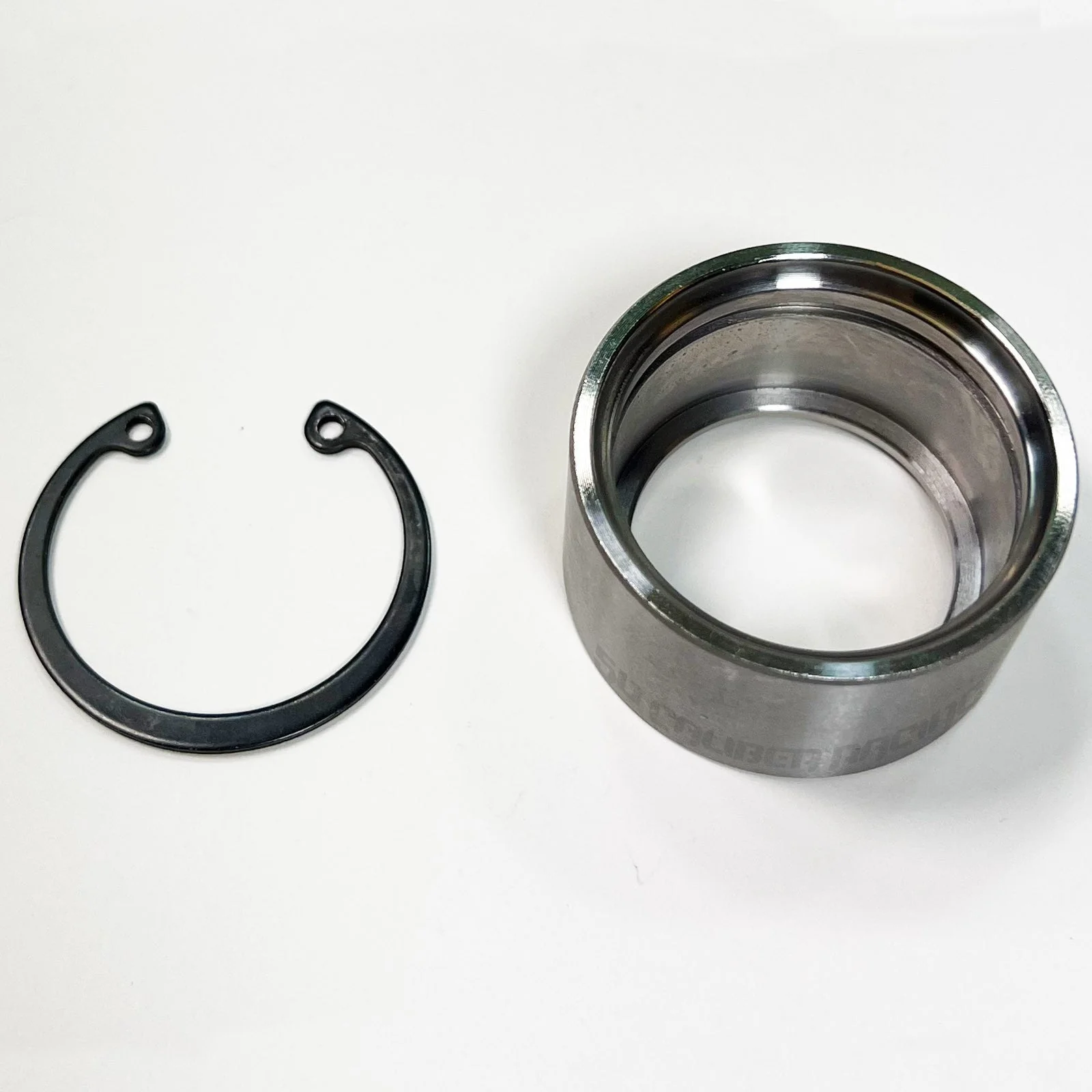

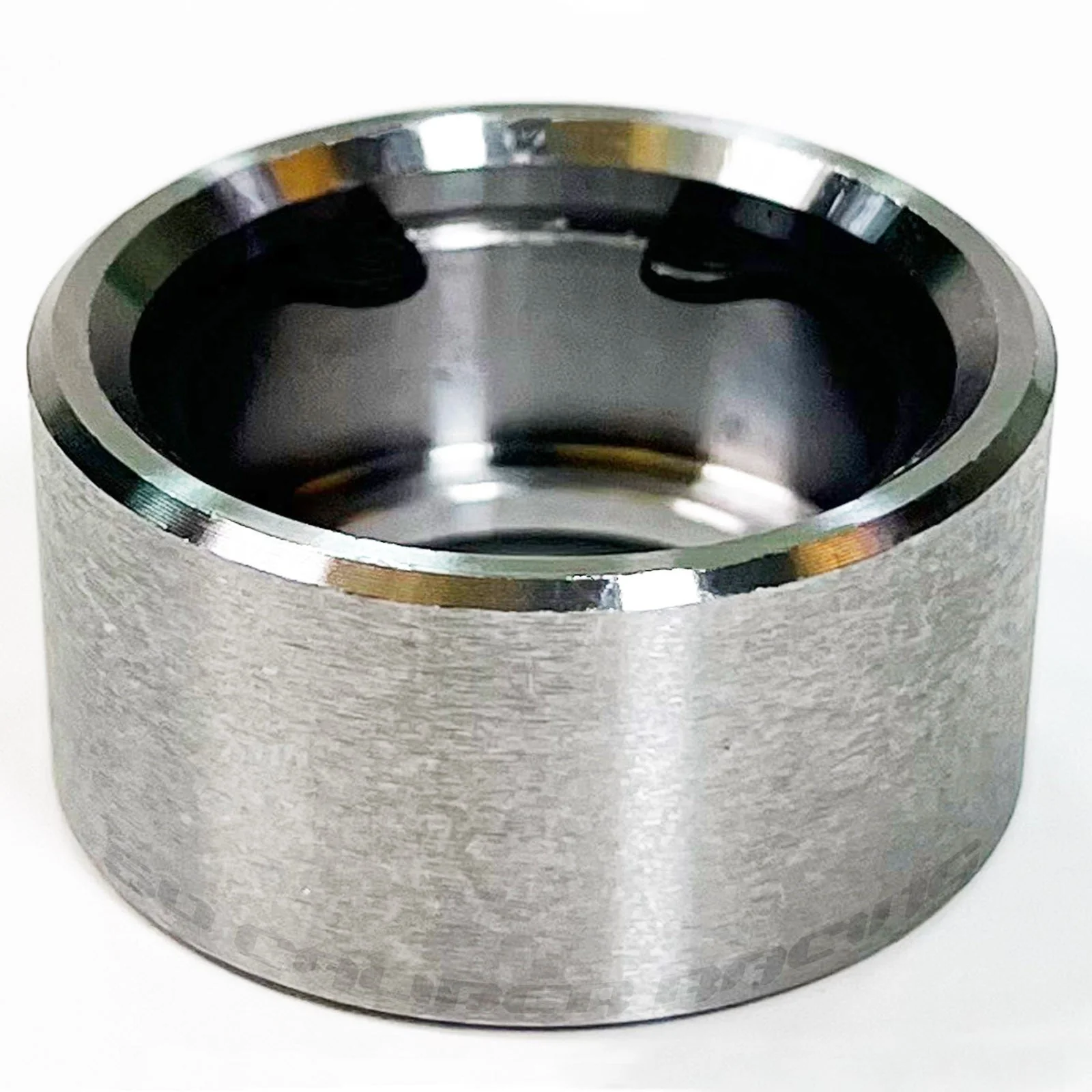

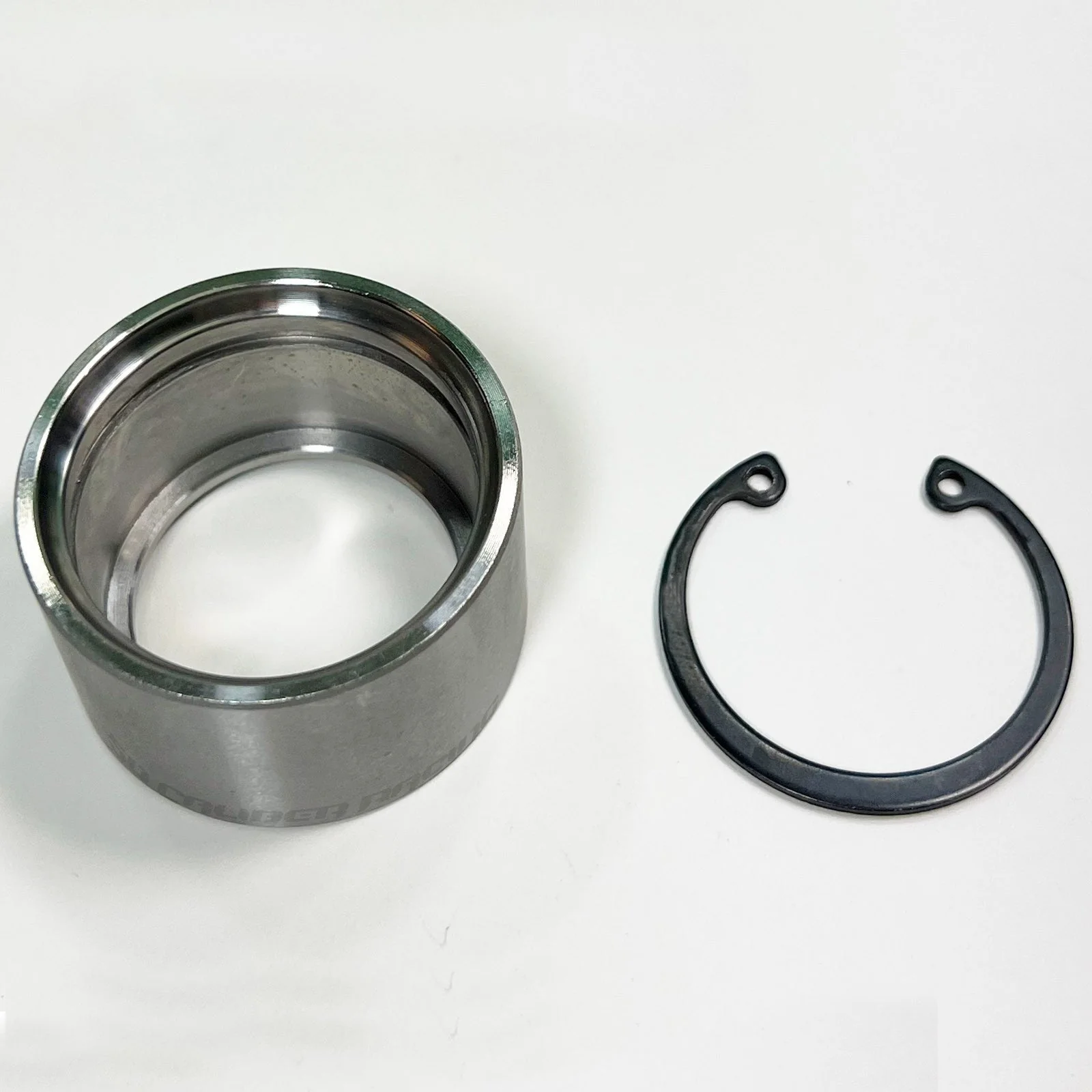

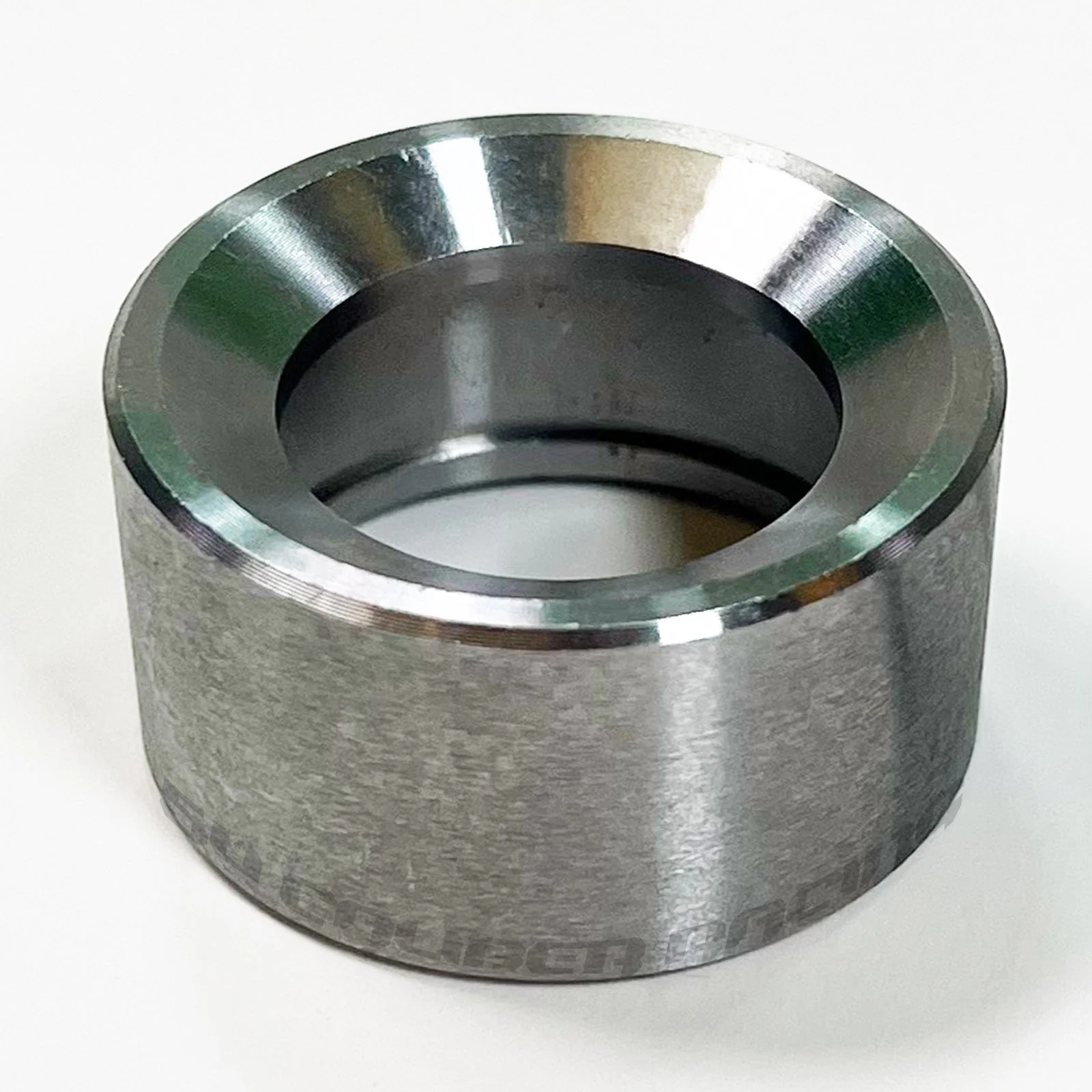

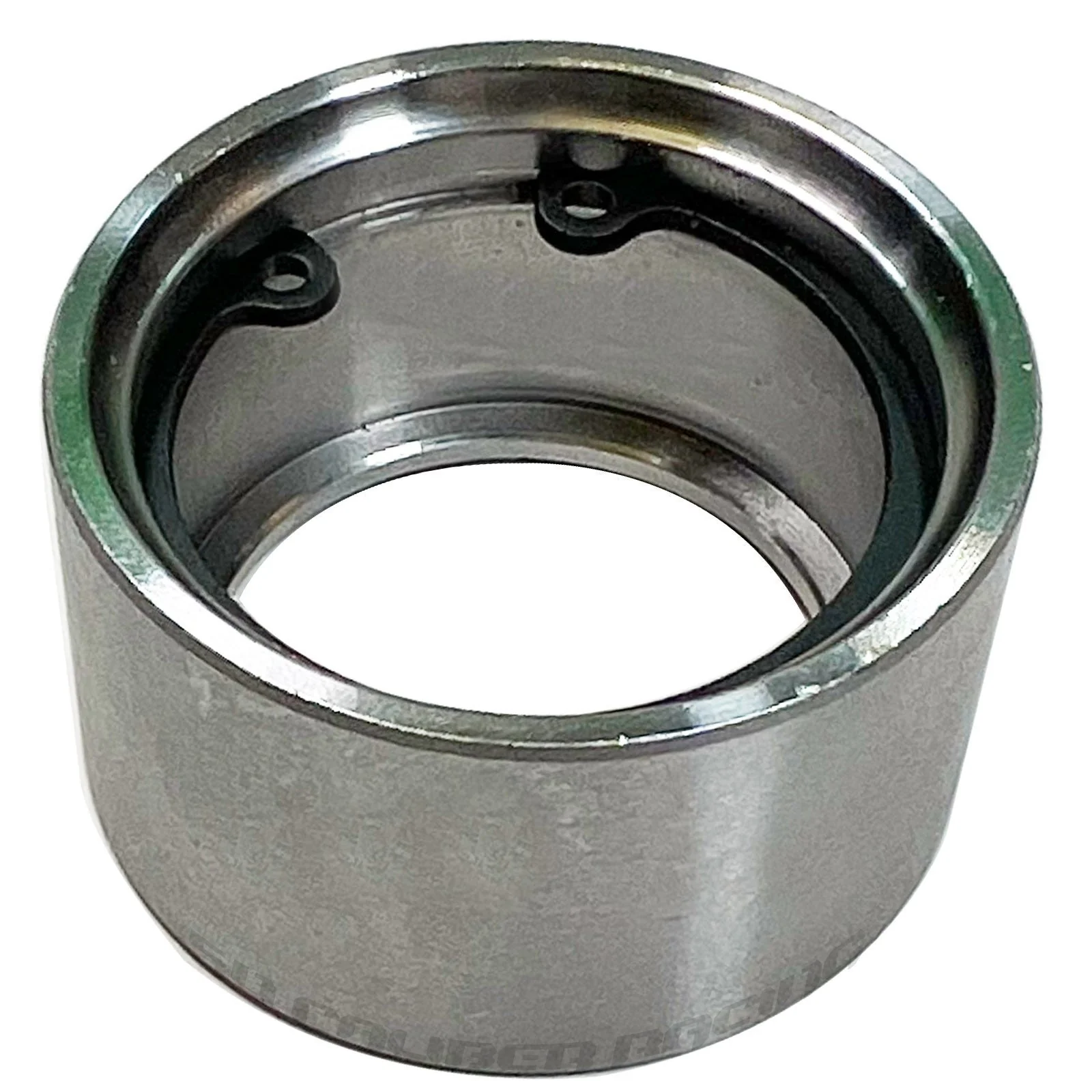

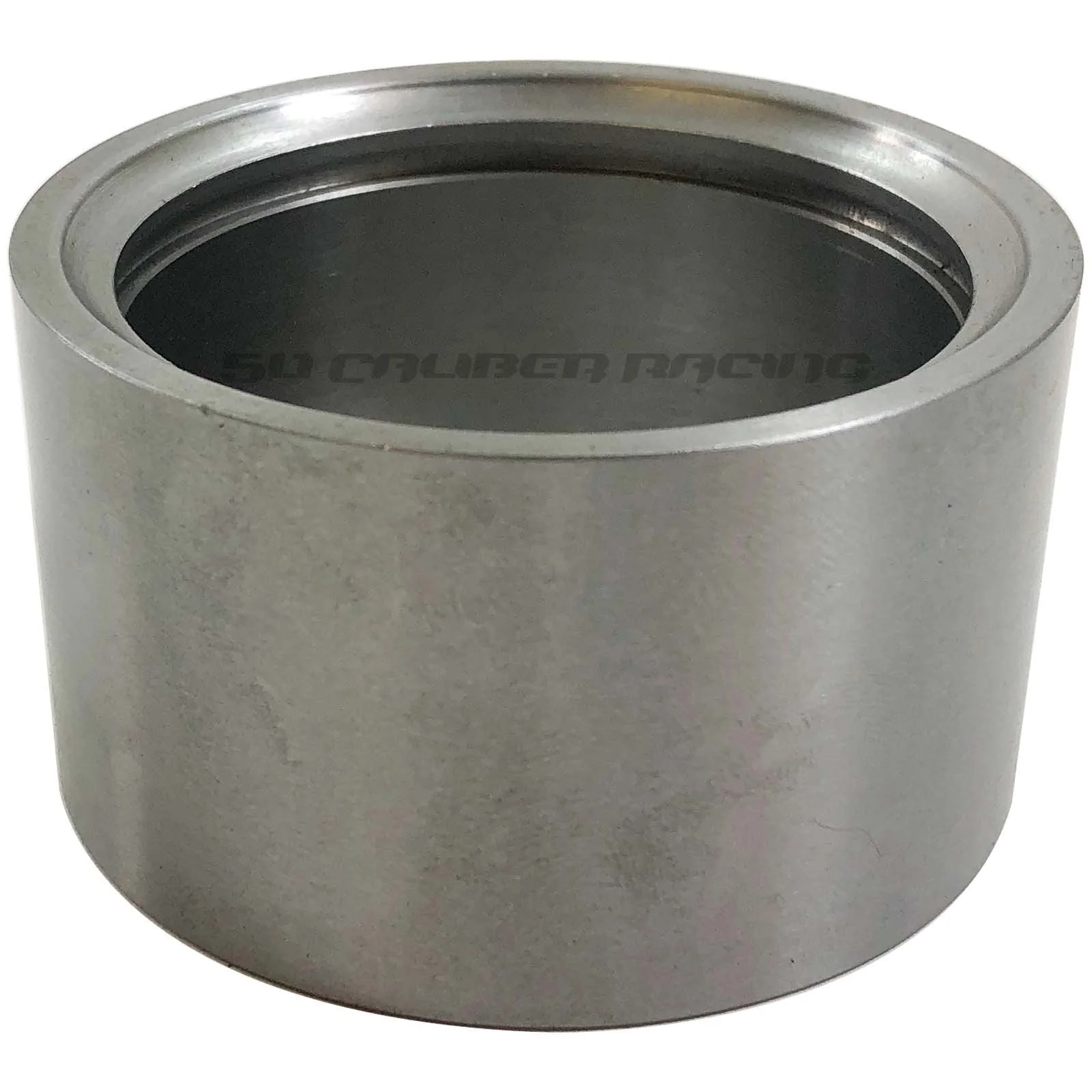

Our uniball cups are made from 4130 Chromoly steel for maximum strength, making them perfect for use in fabricating chassis and suspension components like A-arms and radius rods. Each precision machined cup includes a matching spring steel snap ring retainer. Available in several sizes to fit most any off road or race application. Compatible with uniball spherical bearings made by 50 Caliber Racing and many other popular manufacturers.
Specifications:
- 4130 Chromoly Steel
- Precision machined

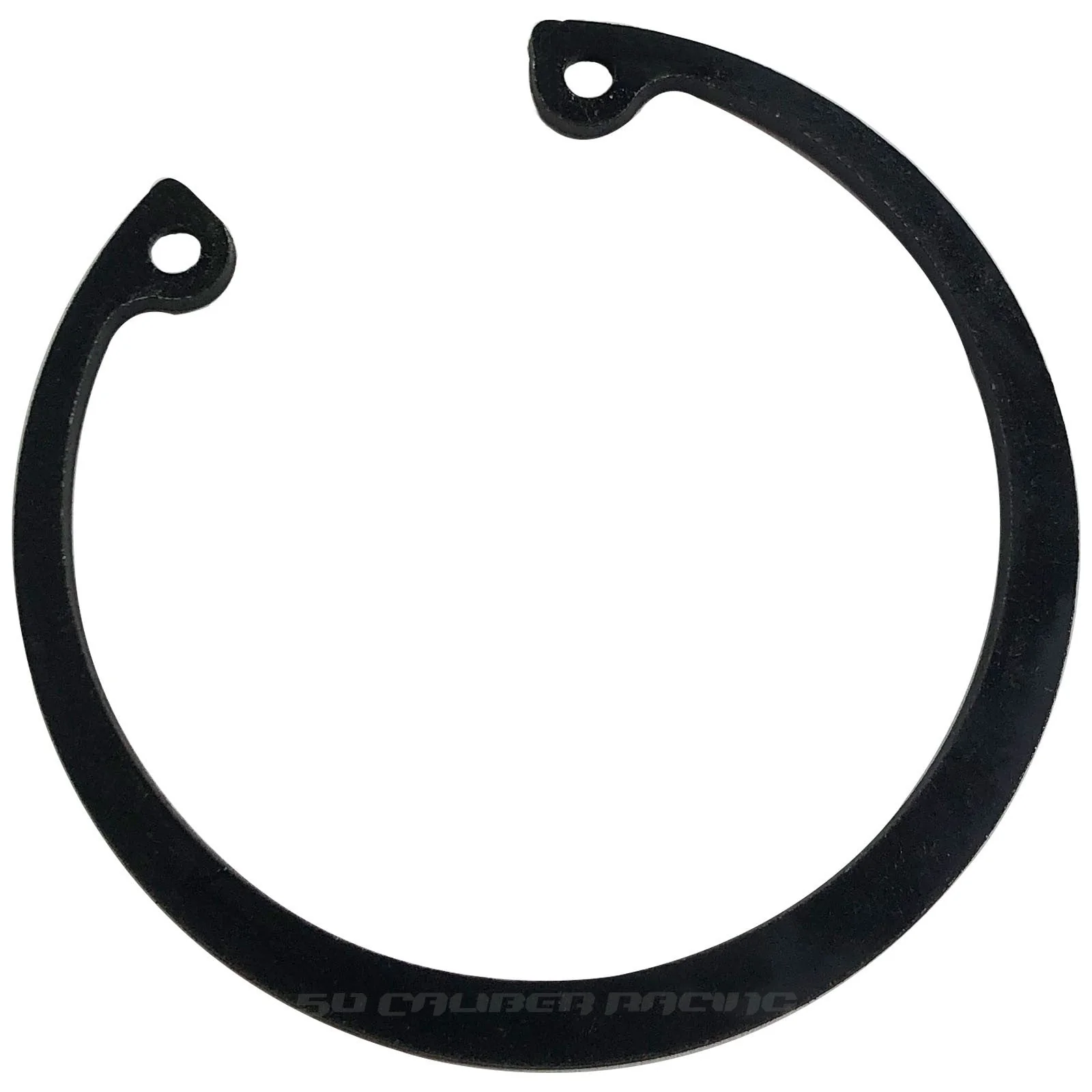

- High quality snap ring retainer included
- Several sizes available
- Compatible with standard size uniball bearings
Available in sizes compatible with .5", .75", 1", 1.25" and 1.5" bore uniball spherical bearings. We also offer compatible uniballs and complete kits here.

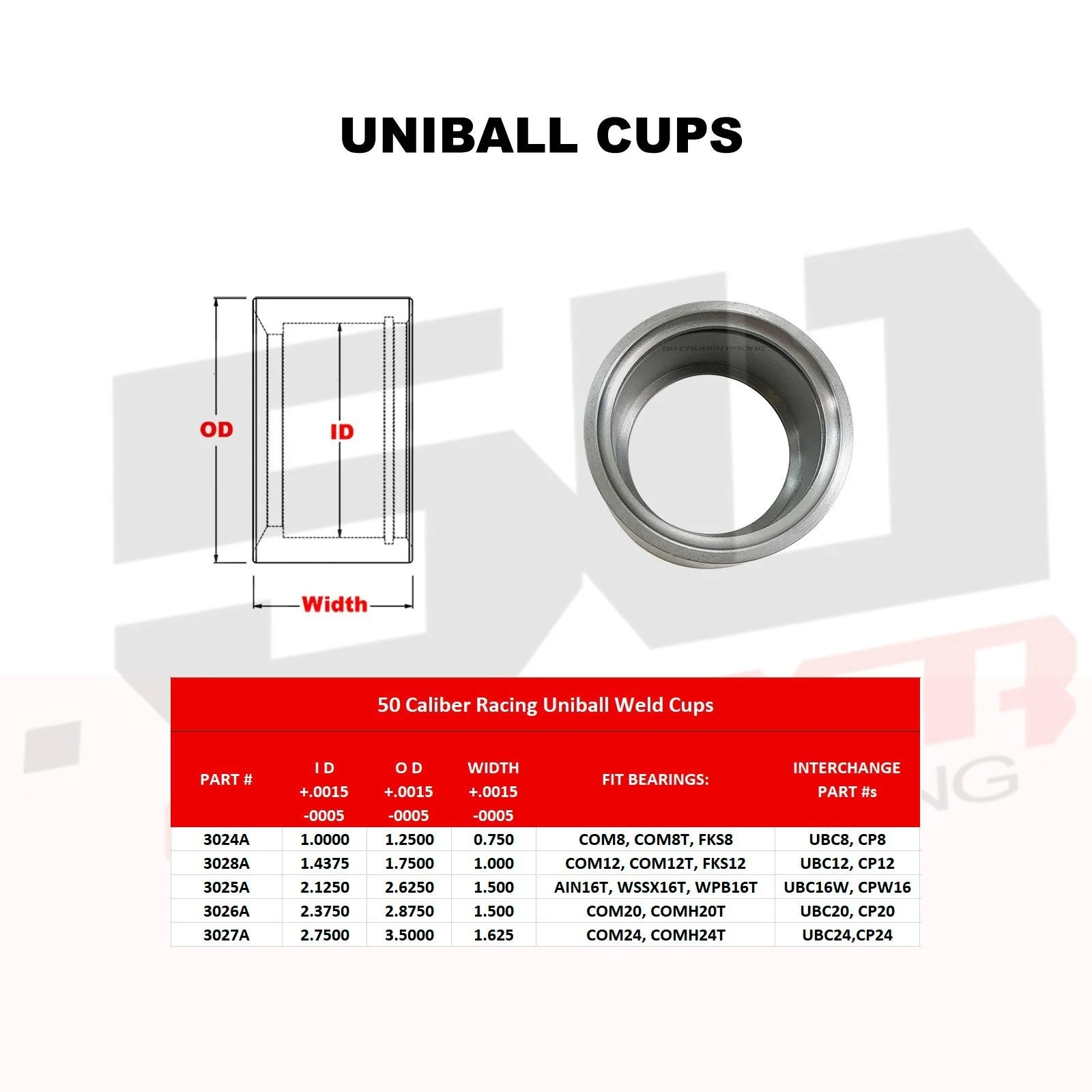

| Part # | Inside Diameter | Outside Diameter | Width | Fit Bearings: | Interchange Part #s |

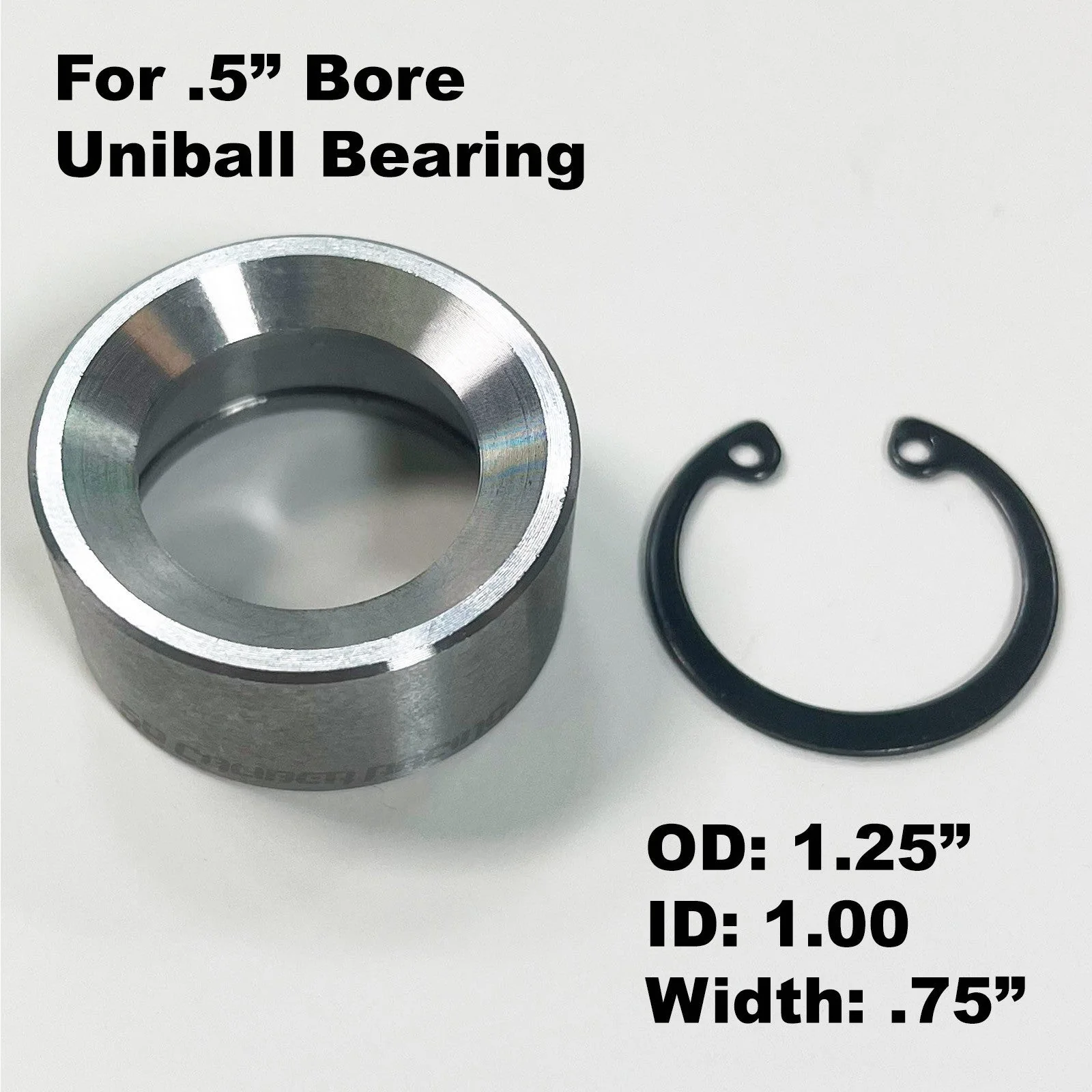

| 3024A (for .5" Bore Uniball) | 1.000" | 1.250" | .750" | COM8, COM8T | UBC8, CP8 |

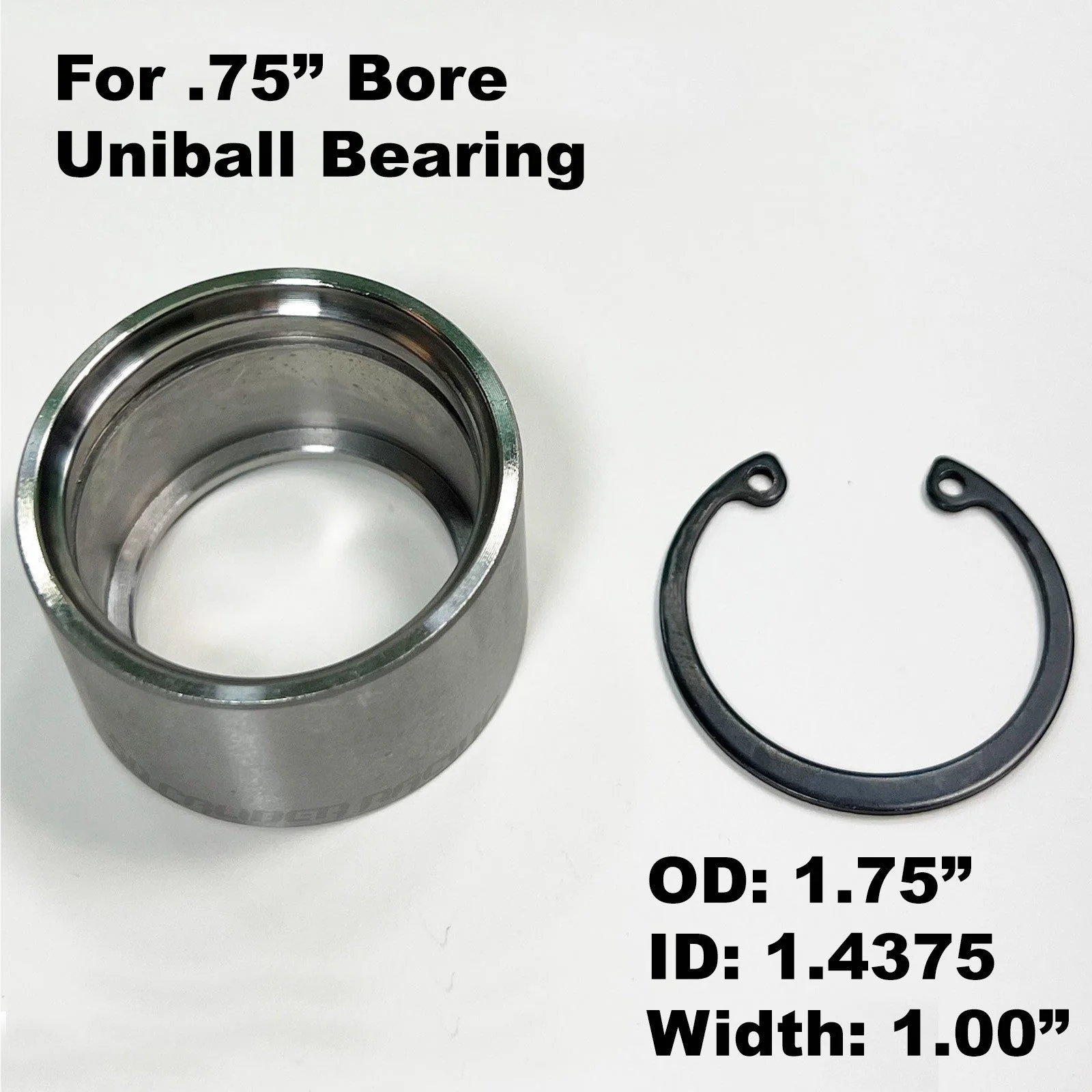

| 3028A (for .75" Bore Uniball) | 1.4375" | 1.750" | 1.00" | COM12, COM12T, FKS12 | UBC12, CP12 |

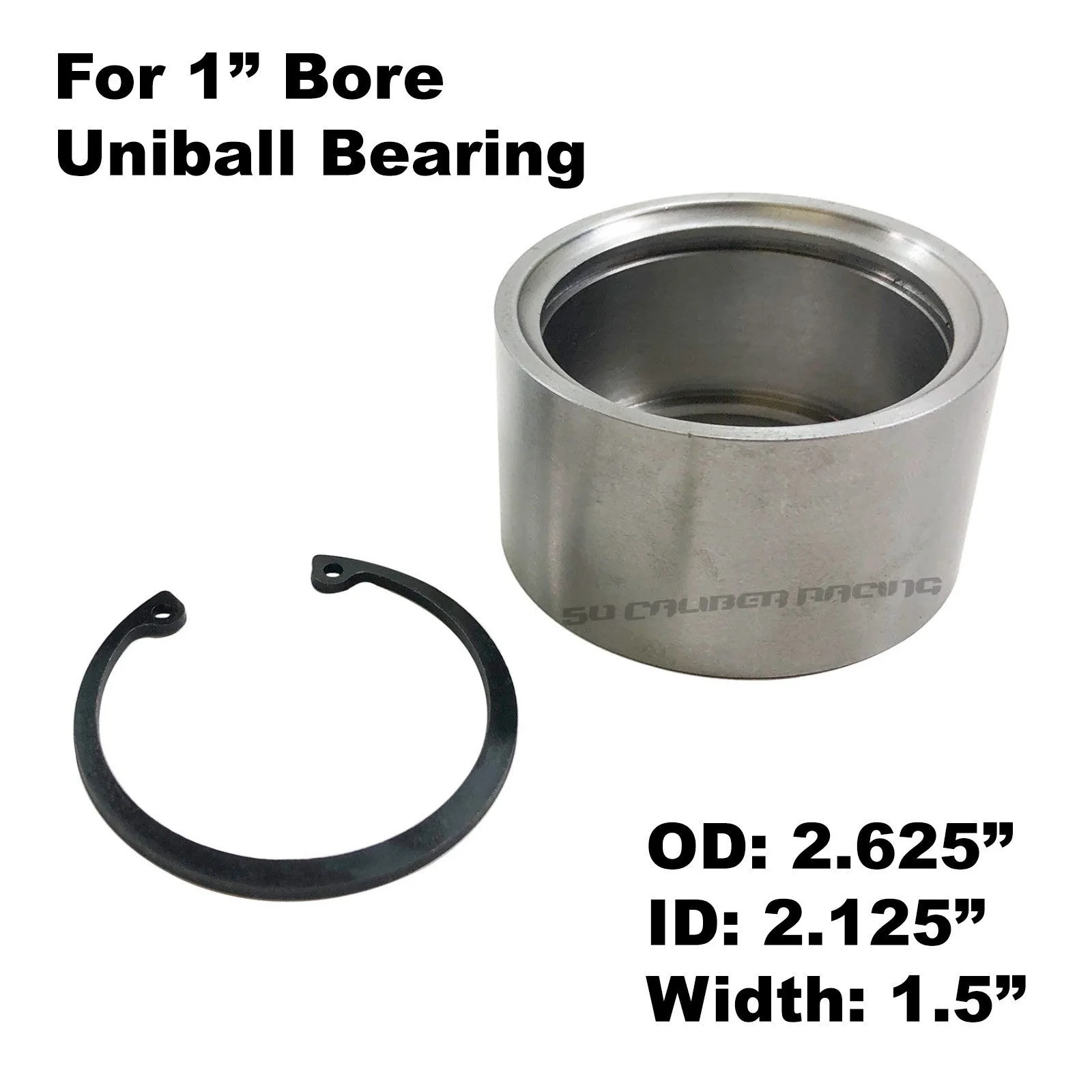

| 3025A (for 1" Bore Uniball) | 2.125" | 2.625" | 1.500" | AIN16T, WSSX16T, WPB16T | UBC16W, CPW16 |

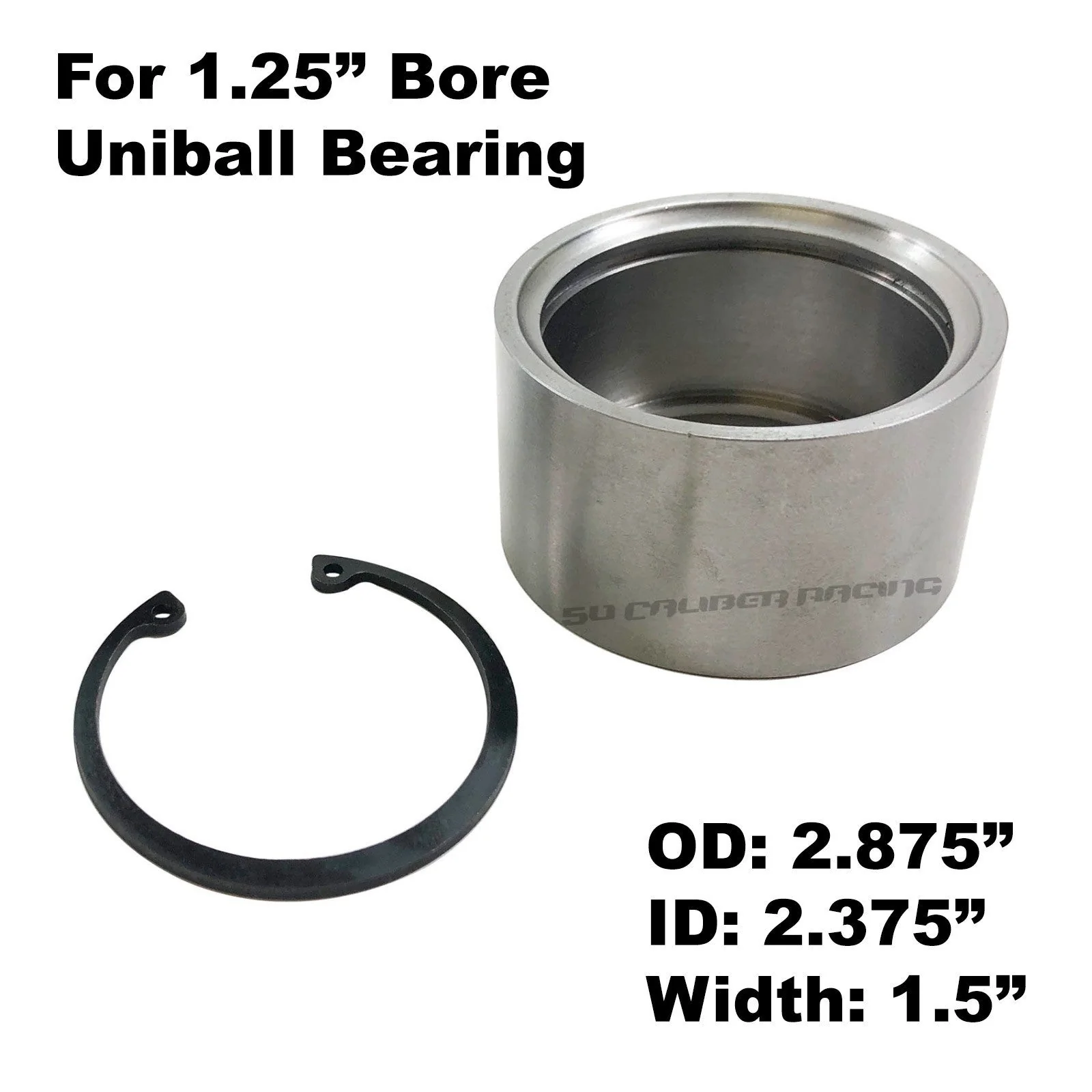

| 3026A (for 1.25" Bore Uniball) | 2.375" | 2.875" | 1.500" | COMH20, COM20T | UBC20, CP20 |

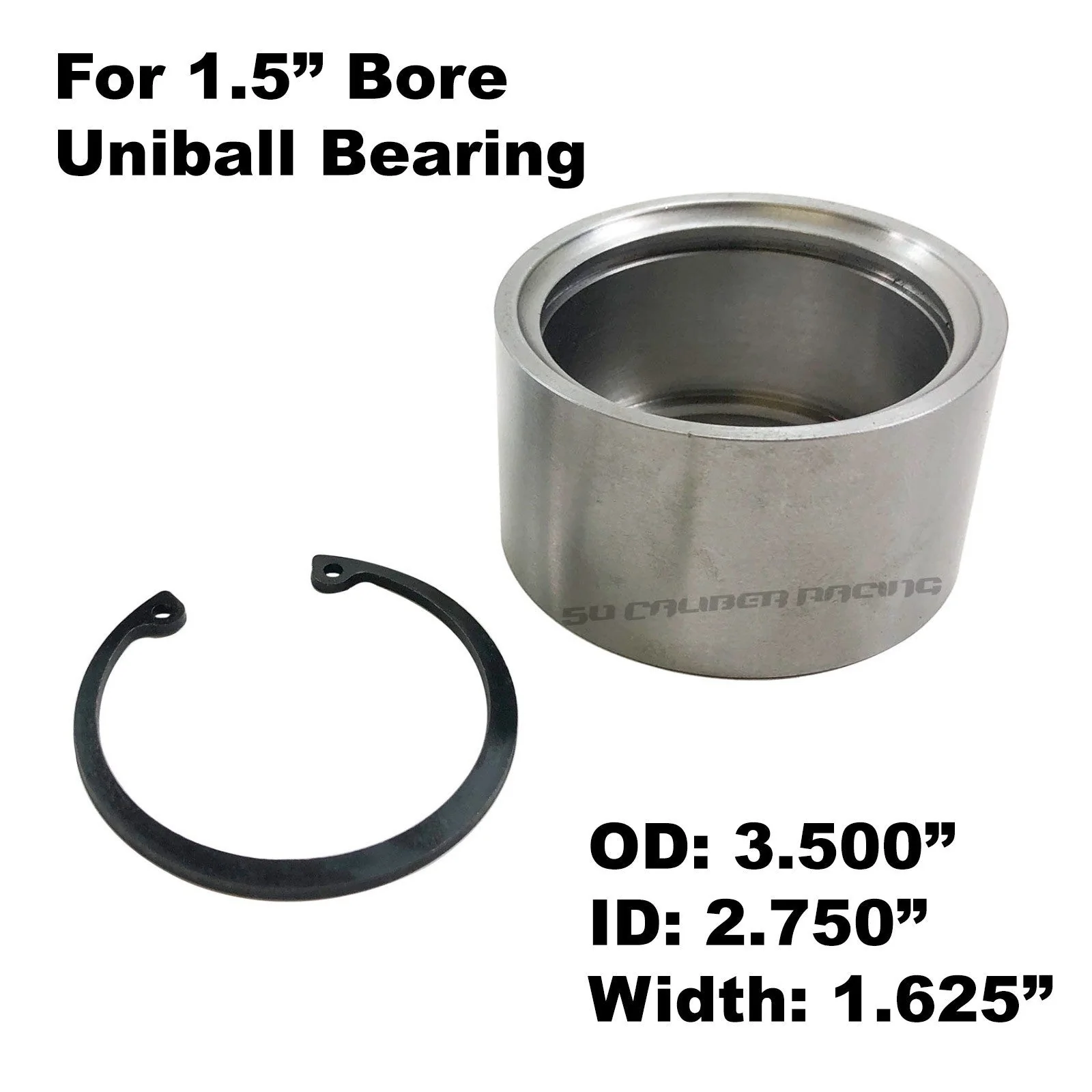

| 3027A (for 1.5" Bore Uniball) | 2.750" | 3.500" | 1.625" | COMH24, COM24T | UBC20, CP24 |
Original: $25.99
-65%$25.99
$9.10
