Ford F150 Raptor (2017-2021) - Behind The Grille 30" LED Light Bar - Clear Lens

Overview

The Heretic Behind The Grille 30" LED light bar - Clear Lens is the best option for your Ford F150 Raptor's grille. This high performance 6-series amber LED light bar is  designed and assembled in the USA, housed in CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. This light bar is optimal for use under clear night conditions. With brackets included this becomes a 32" Behind the Grille LED Light Bar.

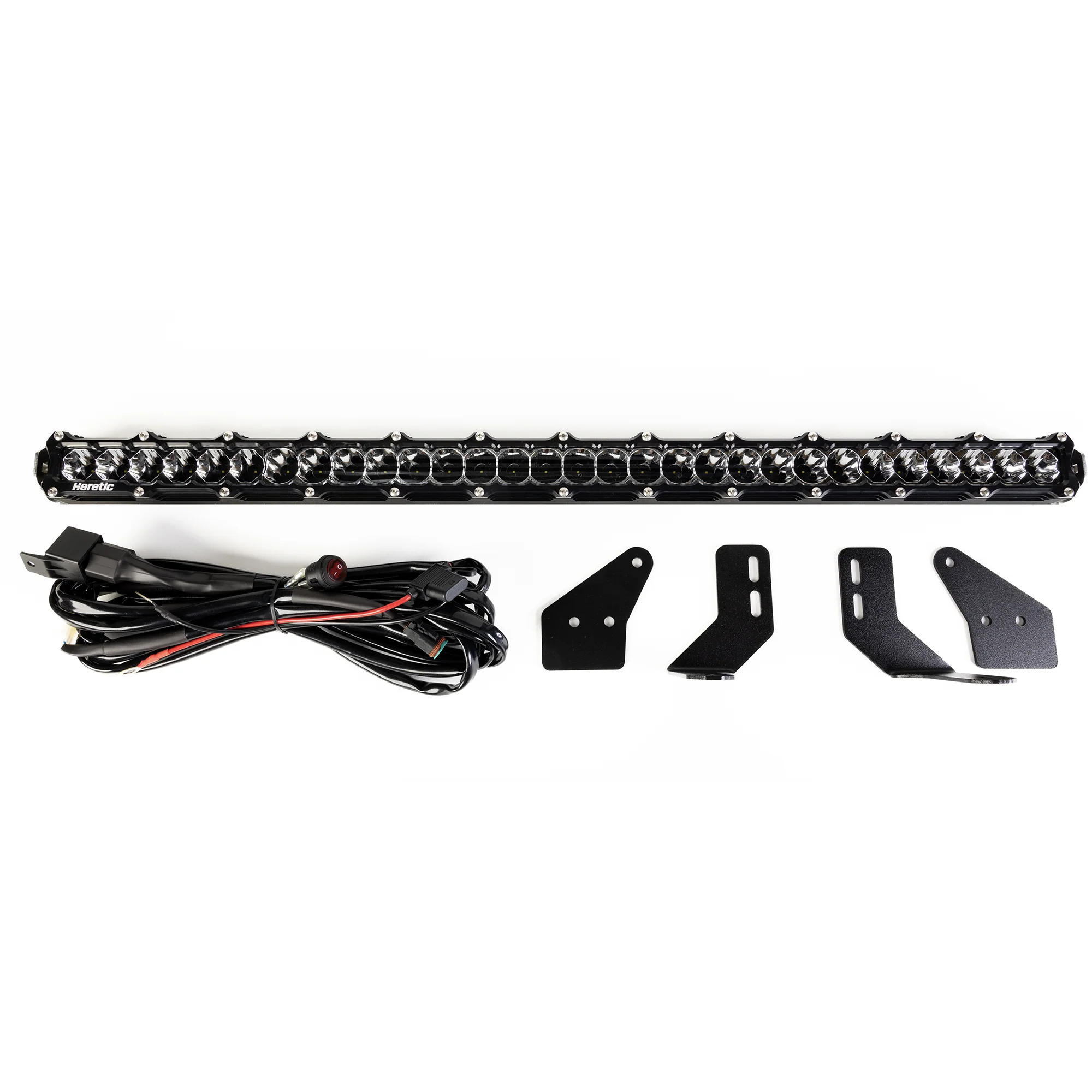

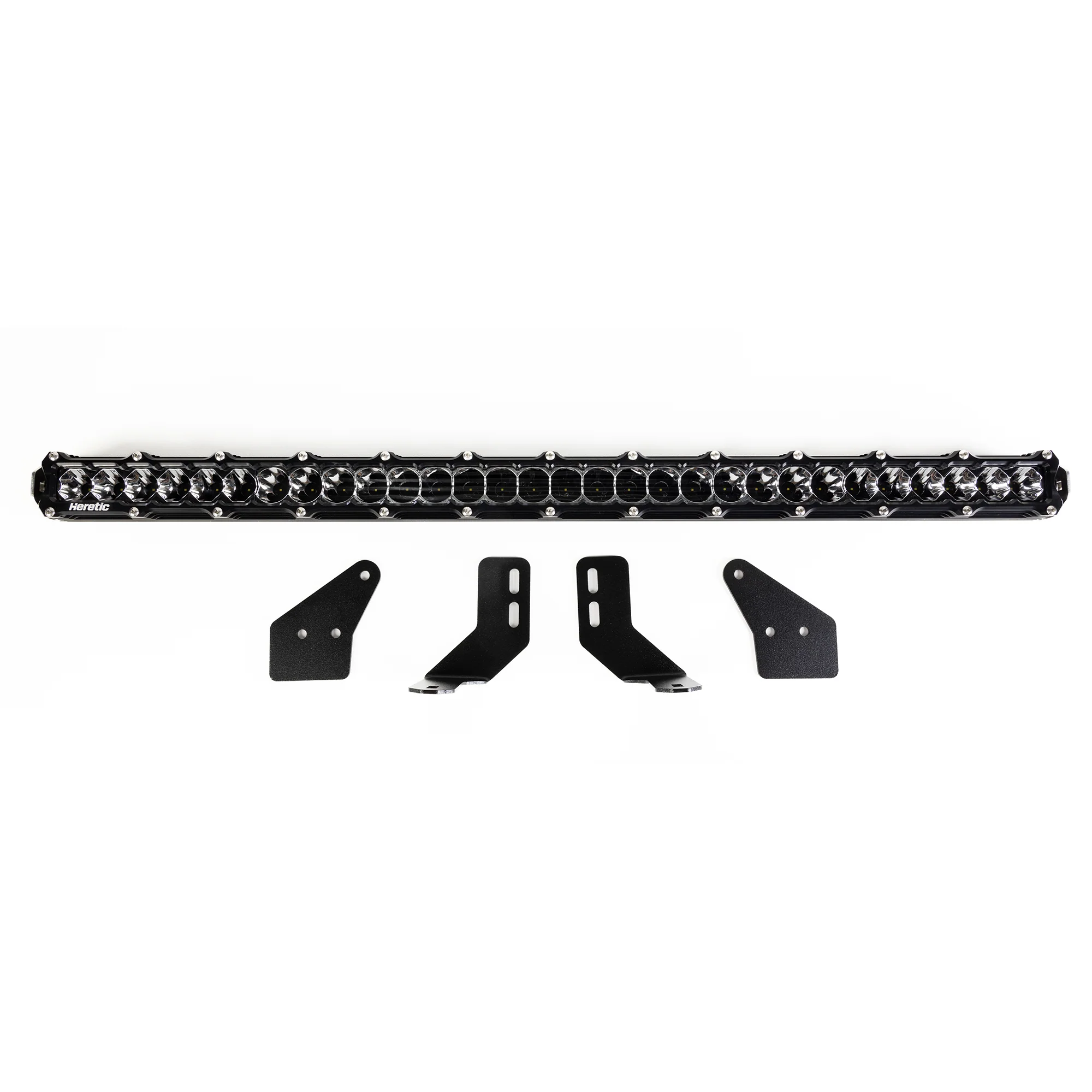

Kit Includes

• 30in Light Bar W/ Clear Lens
• Powder Coated Stainless Steel Brackets
• Mounting Hardware
• Wire Harness

Install Video

Vehicle Trim Compatibility

Ford F-150 Raptor (2017-2021)

Specifications

Details/Specs

Shipping Weight: 5lbs
Type: 30” LED Light Bar
Housing: CNC Aircraft-Grade Aluminum
Location: Roof, Bumper, Grille, Rack
Light Color: White
Lens Color: Clear
Wattage: 180W
Amp Draw at 13.8V: 17.9A
Voltage: 9V-36V
IP Rating: IP68
DIM (Light Only): L 31” x D 1.5” x H 2”
DIM (Light W/ Bracket): L 32” x D 1.5” x H “2.4
Lumens: 21780 lm
Lux At 10m:

• Spot: 6188 lx
• Flood: 1316 lx
• Combo: 4239 lx

Candela:

• Spot: 618750 cd
• Flood: 131625 cd
• Combo: 423900 cd

Beam Distance:

• Spot: 1573 m
• Flood: 726 m
• Combo: 1302 m

DOT Compliant: No
Prop 65: No
SAE/ECE: No
