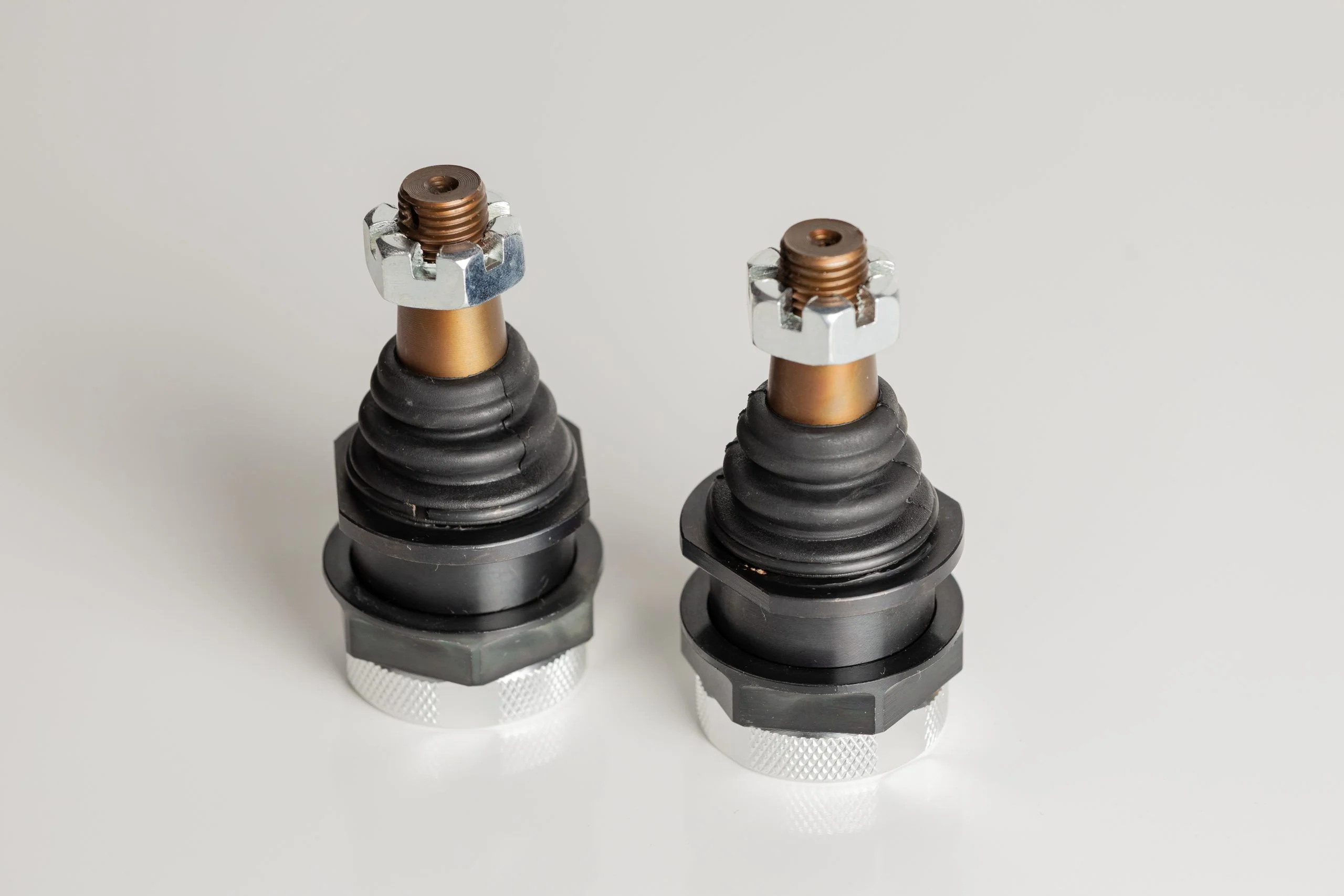

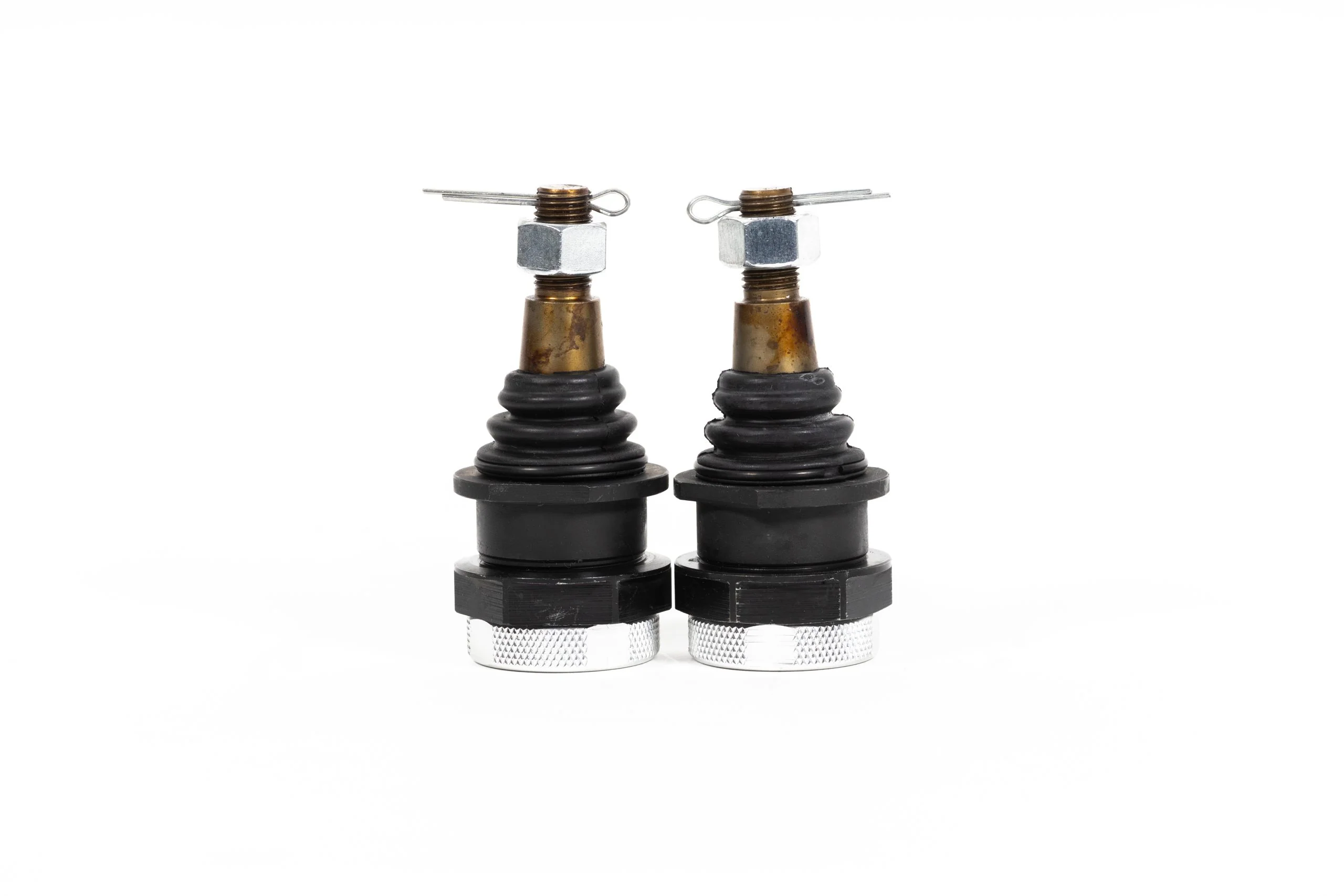

Heavy Duty Can-Am Upper Ball Joint - 4340 Chromoly + 300M Steel Stud (Adjustable & Rebuildable)

The Heaviest-Duty Can-Am Upper Ball Joint on the Market — End the Squeaking, Knocking, and Failures

Stop dealing with the squeaking, knocking, and steering slop that comes with worn OEM upper ball joints. The Black Ops Machine Heavy Duty Can-Am Upper Ball Joint features a 4340 chromoly housing and support cup, a 300M aerospace steel stud, CR/Neoprene dust boots, and a 6061 aluminum adjustment plate cap — fully adjustable and rebuildable so you can ride longer, harder, and faster with minimal long-term maintenance. Sold individually; we always recommend replacing all ball joints at the same time.

Why Can-Am Riders Choose the Black Ops Machine Heavy Duty Upper Ball Joint

• 4340 Chromoly Housing & Support Cup – High-strength chromoly steel delivers exceptional toughness and impact resistance far beyond OEM mild steel construction.
• 300M Aerospace Steel Stud – The same ultra-high-strength steel used in aircraft landing gear and motorsports — significantly stronger than standard chromoly studs with superior tensile strength and ductility.
• CR/Neoprene Dust Boots – Premium neoprene rubber resists heat, oil, UV, and tearing — keeps grease in and contamination out far longer than OEM rubber boots.
• 6061 Aluminum Adjustment Plate Cap – Lightweight, corrosion-resistant cap that allows precise preload adjustment for your specific riding style and conditions.
• Fully Adjustable – Dial in your suspension setup for improved handling and performance — not possible with sealed OEM joints.

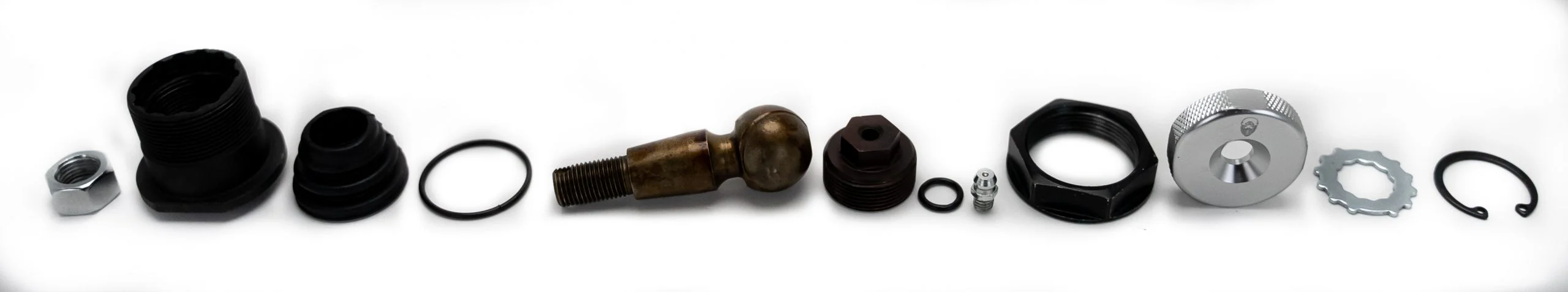

• Fully Rebuildable – Disassemble, clean, re-grease, and reassemble to restore like-new performance without buying a whole new joint.
• Buy 1, 2, 3, or 4 – Flexible quantity options with optional press cup and/or clamp add-ons to get exactly what you need for your install.
• Tested to Failure – Black Ops Machine doesn't list a product until it's been ridden hard and tested to its limits by the team in the desert.

Perfect For

🏜️ Desert bashing • 🪨 Rock crawling • 🌲 Trail riding • 🏁 Racing builds • 🔧 Preventive upgrades • 💥 High-horsepower Can-Am builds

Complete Kit Includes

• ✓ Heavy duty upper ball joint(s) — quantity of your choice (1, 2, 3, or 4)
• ✓ CR/Neoprene dust boot(s)
• ✓ 6061 aluminum adjustment plate cap(s)
• ✓ Optional: Press cup add-on available
• ✓ Optional: Clamp add-on available
• ✓ Optional: Press cup & clamp bundle available

Technical Specifications

Vehicle Fitment

• Can-Am Maverick X3 (all configurations) — upper ball joint position
• Can-Am Maverick X3 MAX (all configurations) — upper ball joint position
• Can-Am Maverick X3 RS (all configurations) — upper ball joint position
• Can-Am Defender (compatible configurations) — upper ball joint position

Why Can-Am OEM Upper Ball Joints Fail — And How to Fix It for Good

Upper ball joint failure on the Can-Am X3 and Defender is one of the most common complaints in the community — and it's not a fluke. OEM upper joints use mild steel housings and standard carbon steel studs engineered to a cost target, not a performance standard. The first sign of failure is usually a squeak or knock from the front suspension, followed by increasing steering slop as the stud wears loose in the housing. Left unchecked, the joint eventually fails entirely — often at the worst possible moment on the trail. Black Ops Machine addresses every failure point: 4340 chromoly housing for impact toughness, 300M steel stud for tensile strength that far exceeds OEM, CR/Neoprene boots that actually seal out contamination, and a rebuildable design so you can service the joint before it fails rather than after. The adjustable preload cap lets you dial in steering feel for your specific setup — a capability no OEM joint offers. Replace all joints at the same time for consistent suspension geometry and maximum service life.

Real Riders, Real Results

"Had the classic X3 upper ball joint knock after one hard season. Replaced all four with Black Ops joints and the steering is tighter than when the machine was new. The rebuildable design is a huge bonus — I can maintain these myself."

"The 300M stud and chromoly housing are immediately noticeable in hand — these are not cheap parts. Two seasons of desert and rock riding and they're still dialed in. Best suspension upgrade I've done on my X3."

100% Risk-Free With R1 Protect

✓ 30-Day Returns - Don't love it? Return it hassle-free
✓ Fast Shipping - Quick dispatch on in-stock orders
✓ Expert Support - 801-899-2520 | Real UTV techs

Stop chasing that knock. Upgrade once, rebuild as needed, and ride with confidence.
