20" Curved LED Light Bar - 120W Flood/Spot Combo + 9,600 Lumens (Radius)
Big Light in a Compact Package — The 20" Curved LED Bar for Tight Builds

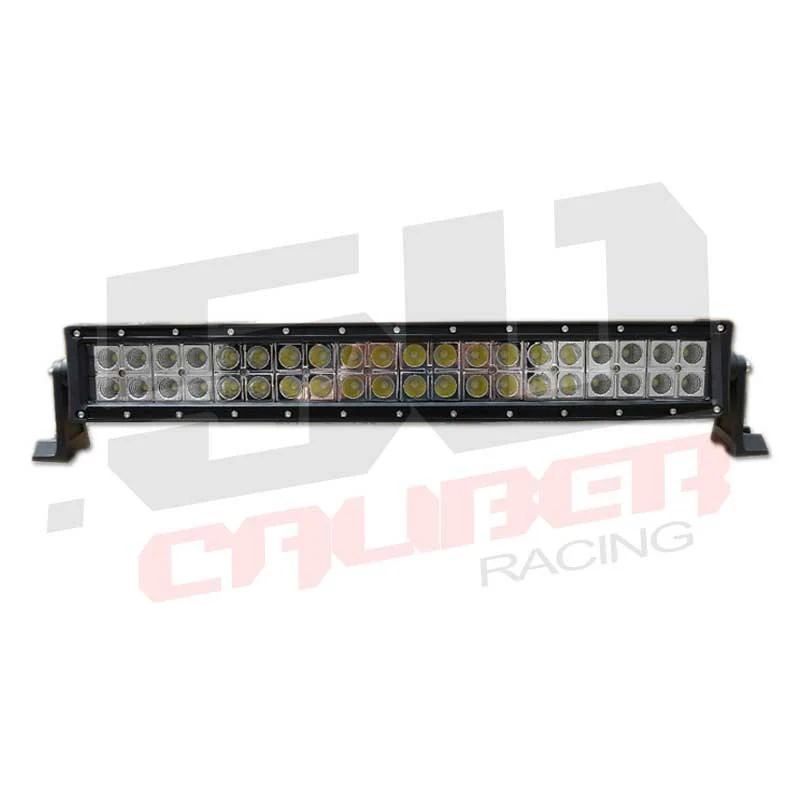

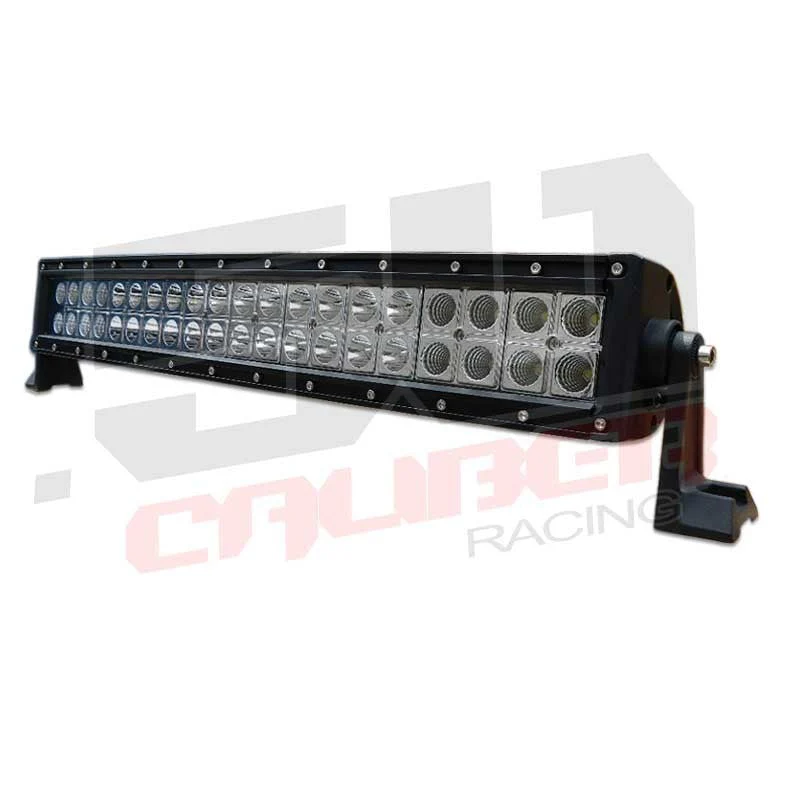

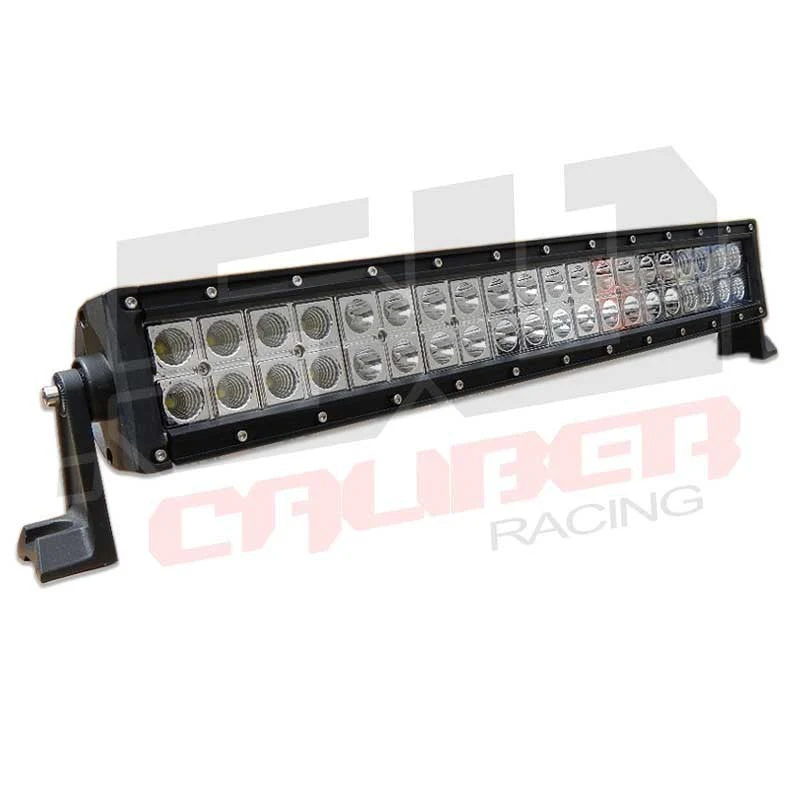

Stop compromising on lighting just because you have limited mounting space. This 20" radius (curved) LED light bar from 50 Caliber Racing delivers 9,600 lumens of 6000K white light through 40 high-output 3-watt LEDs in a flood and spot combo beam. The curved housing wraps your field of view for better peripheral coverage than a straight bar of the same size. Built to IP68 standards — fully submersible — and rated for 150,000 hours of life. Sand, mud, monsoon rain, desert heat: this bar handles all of it without flinching.
Why Off-Road Riders Choose This Light Bar
- 120 Watts of Output — 40 LEDs at 3 watts each, serious brightness in a compact 20" form factor
- 9,600 Lumens at 6000K — Crisp daylight-white light that cuts through dust, fog, and darkness
- Flood + Spot Combo Beam — Wide flood coverage plus long-range spot throw in a single bar

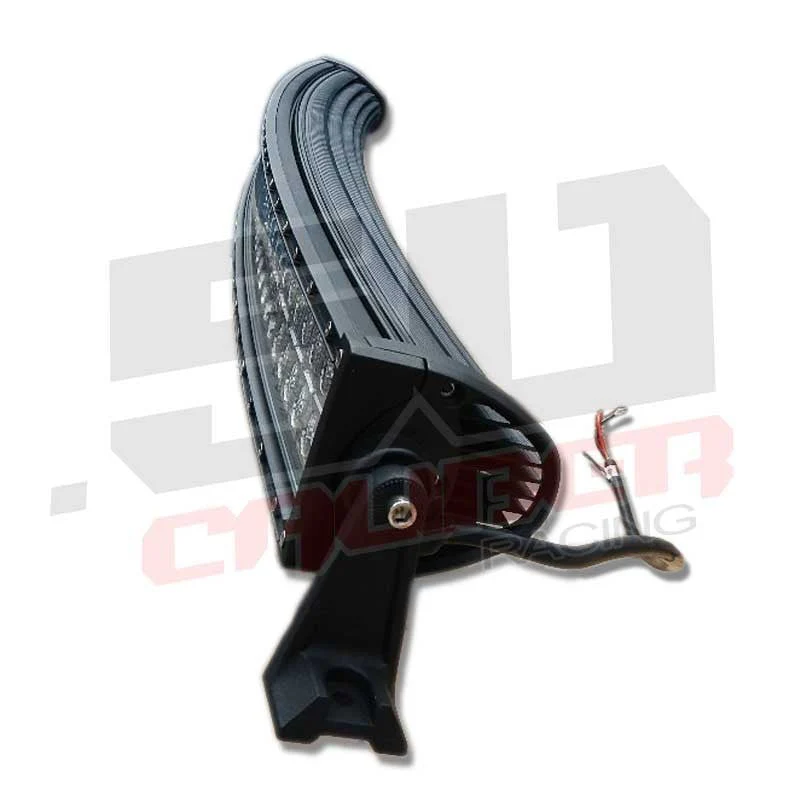

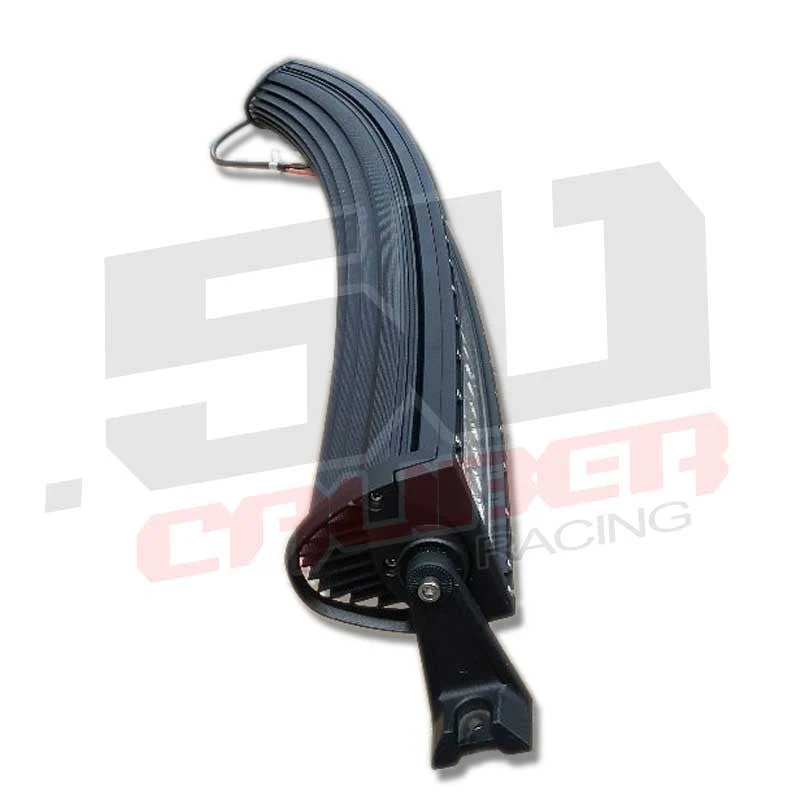

- Radius (Curved) Design — Wraps your peripheral field of view for better situational awareness at speed
- IP68 Waterproof Rating — Fully submersible, handles mud, rain, river crossings, and pressure washing
- 150,000 Hour Life Expectancy — Buy it once, run it for years

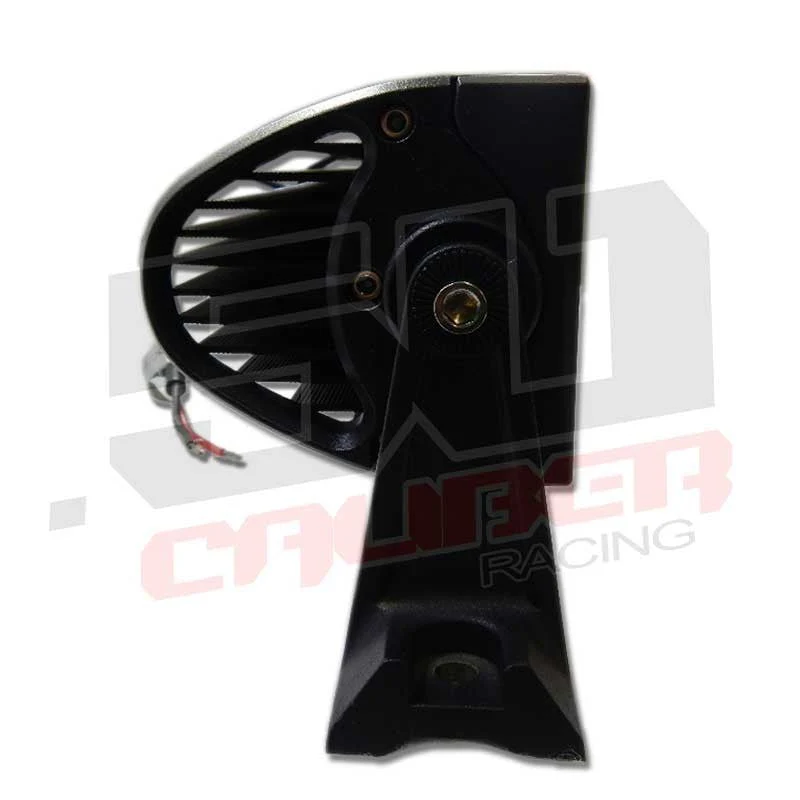

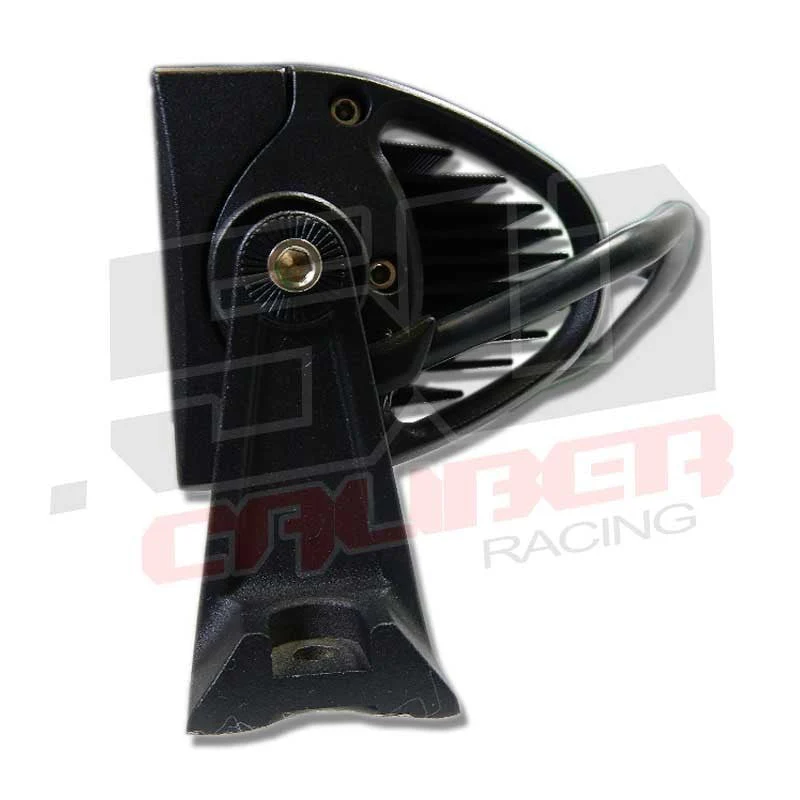

- Pivoting Mounting System — Adjustable aim angle right out of the box
- Simple 2-Wire Install — Straightforward wiring, no harness headaches
Perfect For
🐢 Compact UTV builds | 🌲 Tight trail riding | 🏍️ Auxiliary lighting on larger rigs | 🏎️ A-arm or hood mounts | 🌊 Mud and water crossings
Complete Kit Includes
- ✓ 20" Curved LED light bar
- ✓ Pivoting mounting hardware
- ✓ Free 50 Caliber Racing koozie

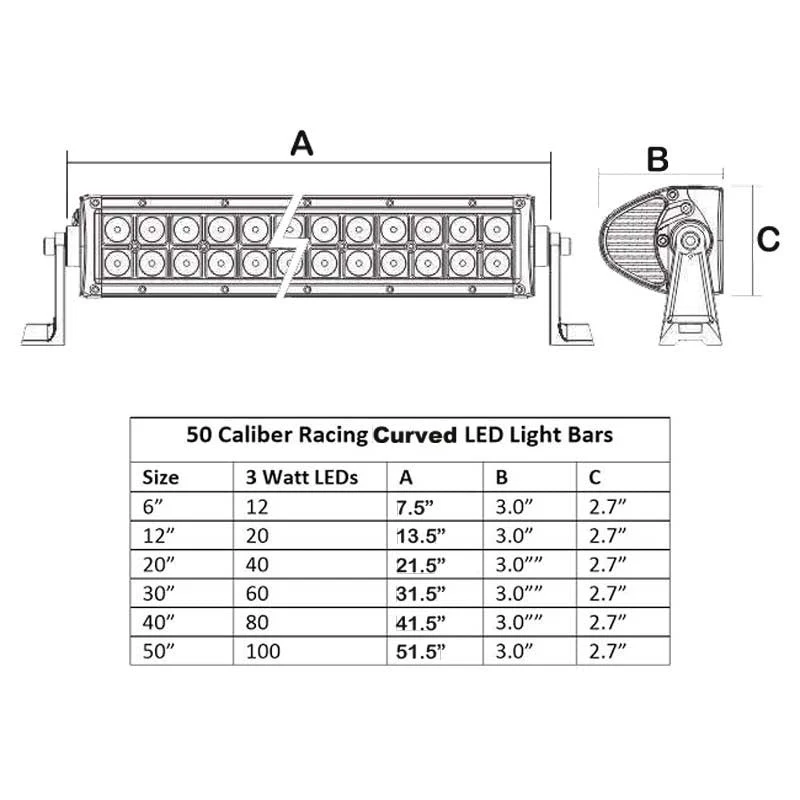

Technical Specifications
| Size | 20" (L) x 2.7" (H) x 3" (D) |
| Mount Width | 21.5" between side mounts |
| Style | Radius (Curved) |
| Total Wattage | 120W (40 x 3W LEDs) |
| Lumens | 9,600 Lumens |
| Color Temperature | 6000K |
| Beam Pattern | Flood + Spot Combo |
| Voltage | 9-36V DC (12V and 24V compatible) |
| Amperage | 4A at 12V / 2A at 24V |
| IP Rating | IP68 (fully submersible) |
| Life Expectancy | 150,000 hours |
| Wiring | 2-wire installation |
| Warranty | 1 Year |
Vehicle Fitment
- Universal fit — compatible with any vehicle with a 21.5" mounting span and 9-36V DC electrical system
Why Curved Beats Straight for Off-Road Lighting
A straight light bar throws a flat wall of light directly in front of you. A curved (radius) bar wraps that light around your peripheral vision, giving you earlier warning of obstacles coming in from the sides — critical when you are moving fast on a trail or in tight terrain. Even at 20", the radius design gives you noticeably better situational awareness than a straight bar of the same length. Combined with the flood and spot combo beam, you get both the wide wash for close-in terrain reading and the long-range throw for navigation. It is the smartest compact lighting upgrade you can make.
Mounted this on the A-arms of my RZR as auxiliary lighting. The curved beam fills in the sides perfectly. No more blind spots on tight trails. — Verified Buyer
IP68 is legit. Went through a full river crossing and the bar never missed a beat. Bright, tough, and easy to wire up. — Verified Buyer
100% Risk-Free With R1 Protect
- 30-Day Returns — Not the right fit? Send it back, no hassle
- Fast Shipping — In stock and ready to ship
- Expert Support — 801-899-2520 | Real UTV techs, not a call center
⚡ Ready to Light Up the Trail?
In Stock Now
Join thousands of off-road riders who trust R1 Industries for serious trail lighting.
Stop riding with blind spots. 9,600 lumens of curved light — compact size, serious output.
Original: $89.99
-65%$89.99
$31.50
