Panhard Bar Fabrication Kit - 3/4"-16 Chromoly Heim Joints + Bungs for 1.5" OD Tubing - Optional Misalignment Spacers

Build It Right the First Time — Complete Panhard Bar Fab Kit with Chromoly Heims and Bungs

Stop sourcing heim joints, jam nuts, and bungs from three different suppliers. This complete fabrication kit from 50 Caliber Racing gives you everything you need to build a custom panhard bar, tie rod, radius arm, or steering link for 1.5" OD tubing. The 3/4"-16 chromoly heim joints are made from 4130 steel with a nylon/Teflon PTFE liner for smooth articulation and long service life. Static radial load rating of 28,081 lbs. Right-hand and left-hand thread heims, jam nuts, and weld-in bungs all included. Available with or without high misalignment spacers.

Why Fabricators Choose This Kit

• 4130 Chromoly Steel Heims — Heat-treated for strength and durability under extreme suspension and steering loads
• 28,081 lb Static Radial Load Rating — Engineered for high-load applications including panhard bars, drag links, and radius rods
• PTFE Nylon Liner — Smooth articulation, self-lubricating, and resistant to contamination
• RH + LH Thread Included — Both right-hand and left-hand heims and jam nuts in one kit for proper length adjustment

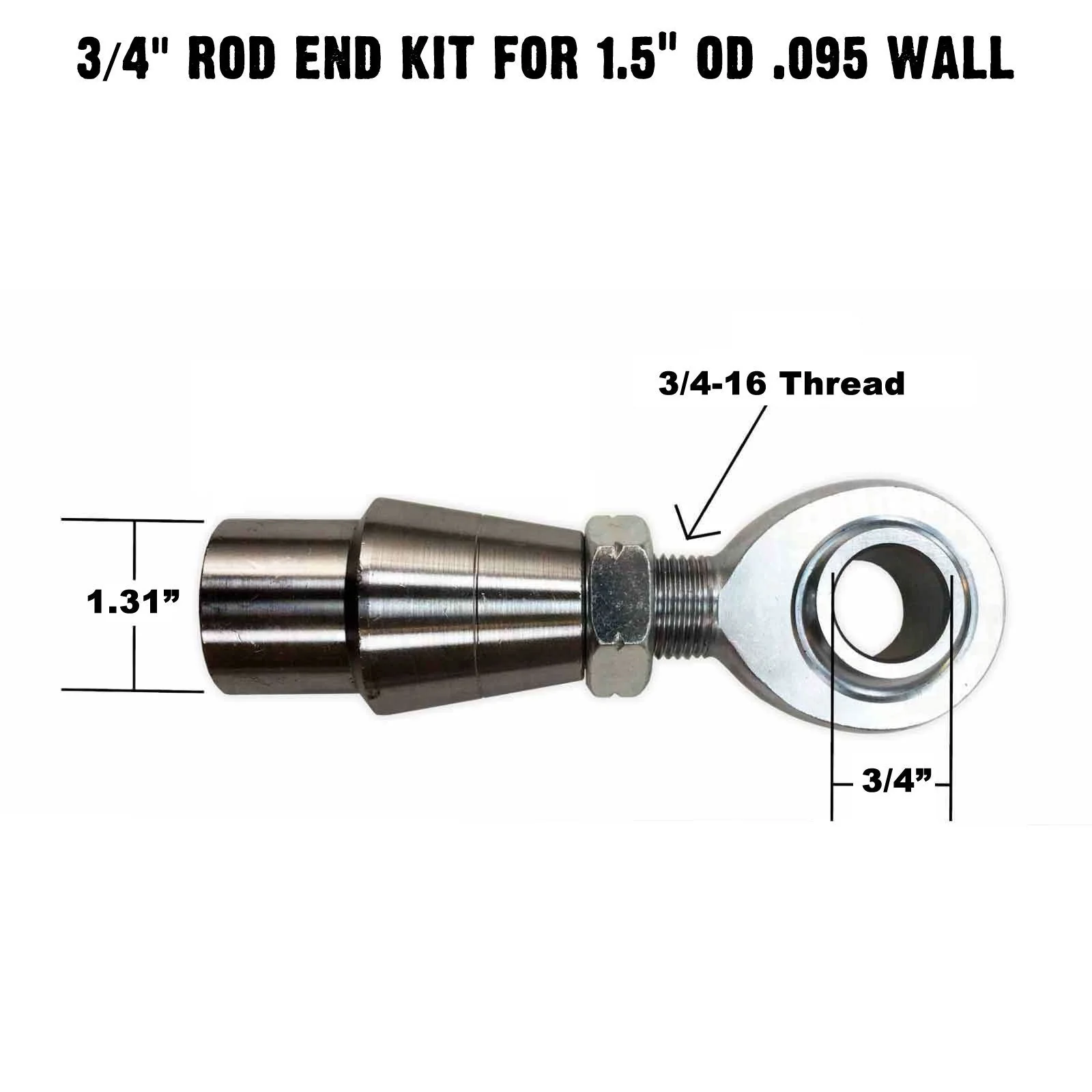

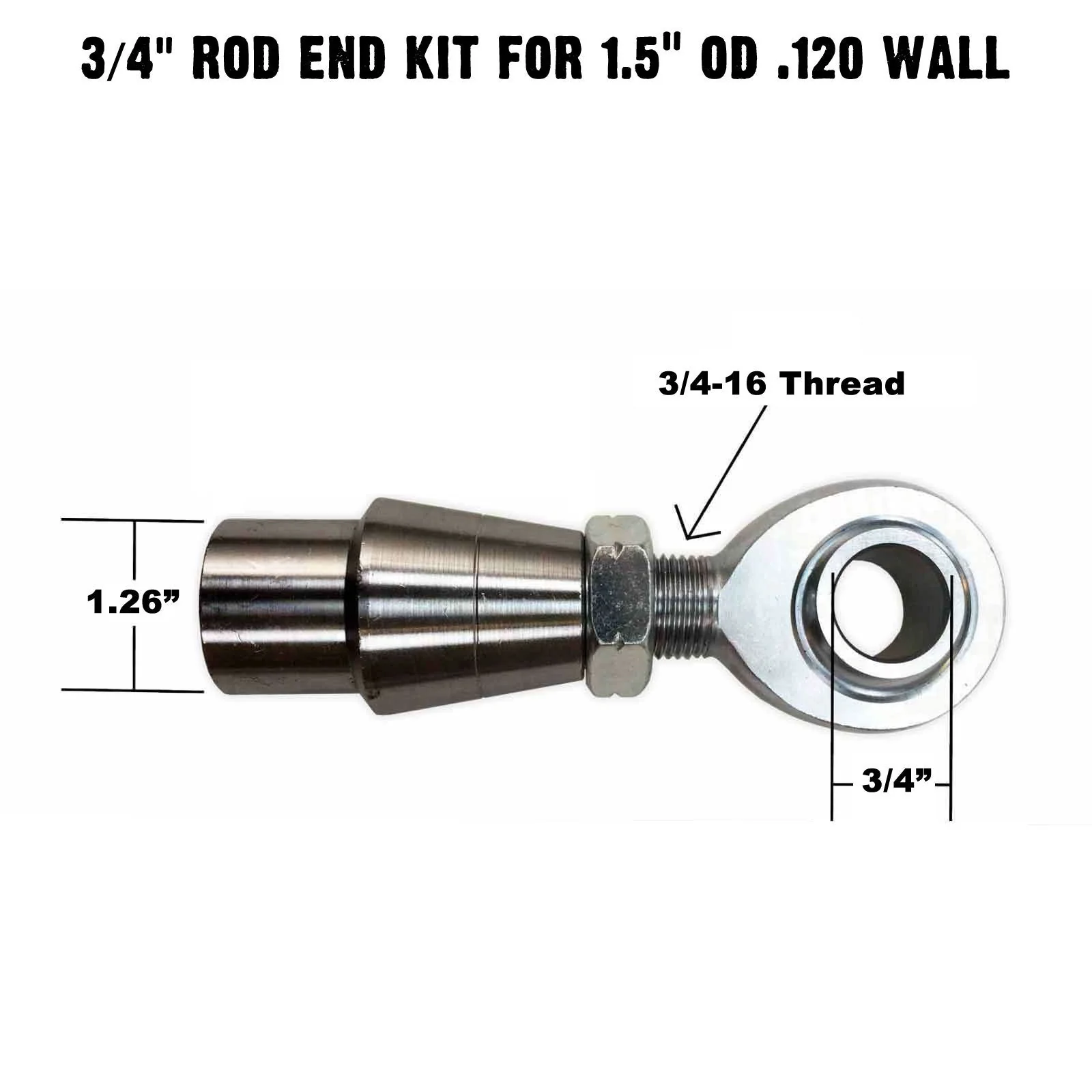

• Weld-In Bungs Included — Matched to 1.5" OD tubing in .095 or .120 wall thickness — select your wall at checkout

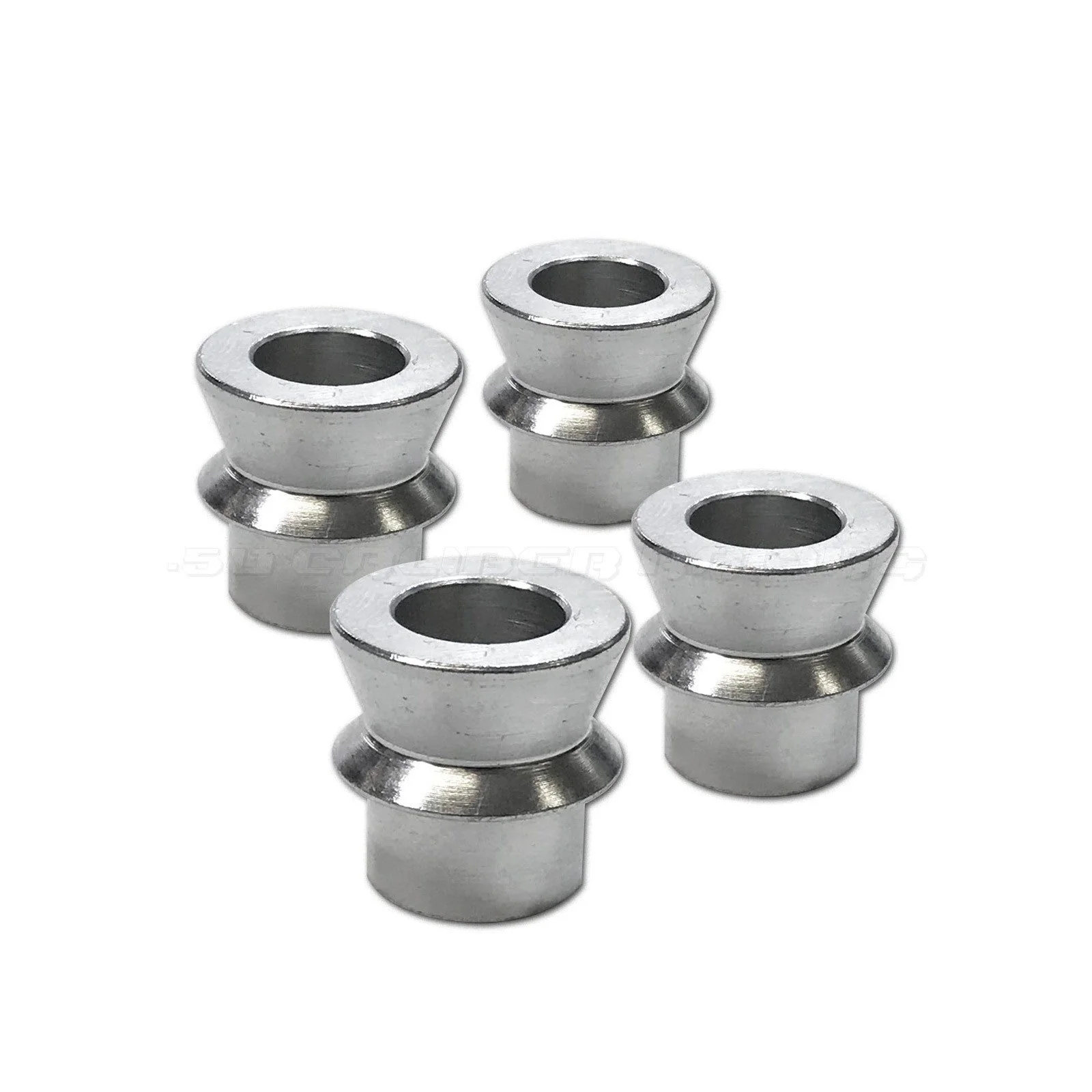

• Optional High Misalignment Spacers — Add 4 chromoly zinc-plated spacers for increased articulation range

Perfect For

🛠️ Panhard bar / trackbar  |  🔗 Drag link  |  🔧 Hi-steer components  |  🛣️ Radius rods  |  🔗 Sway bar links  |  🛠️ Tie rods  |  🔧 Control arms  |  🛣️ 3-link / 4-link suspension  |  🛠️ Custom mounts

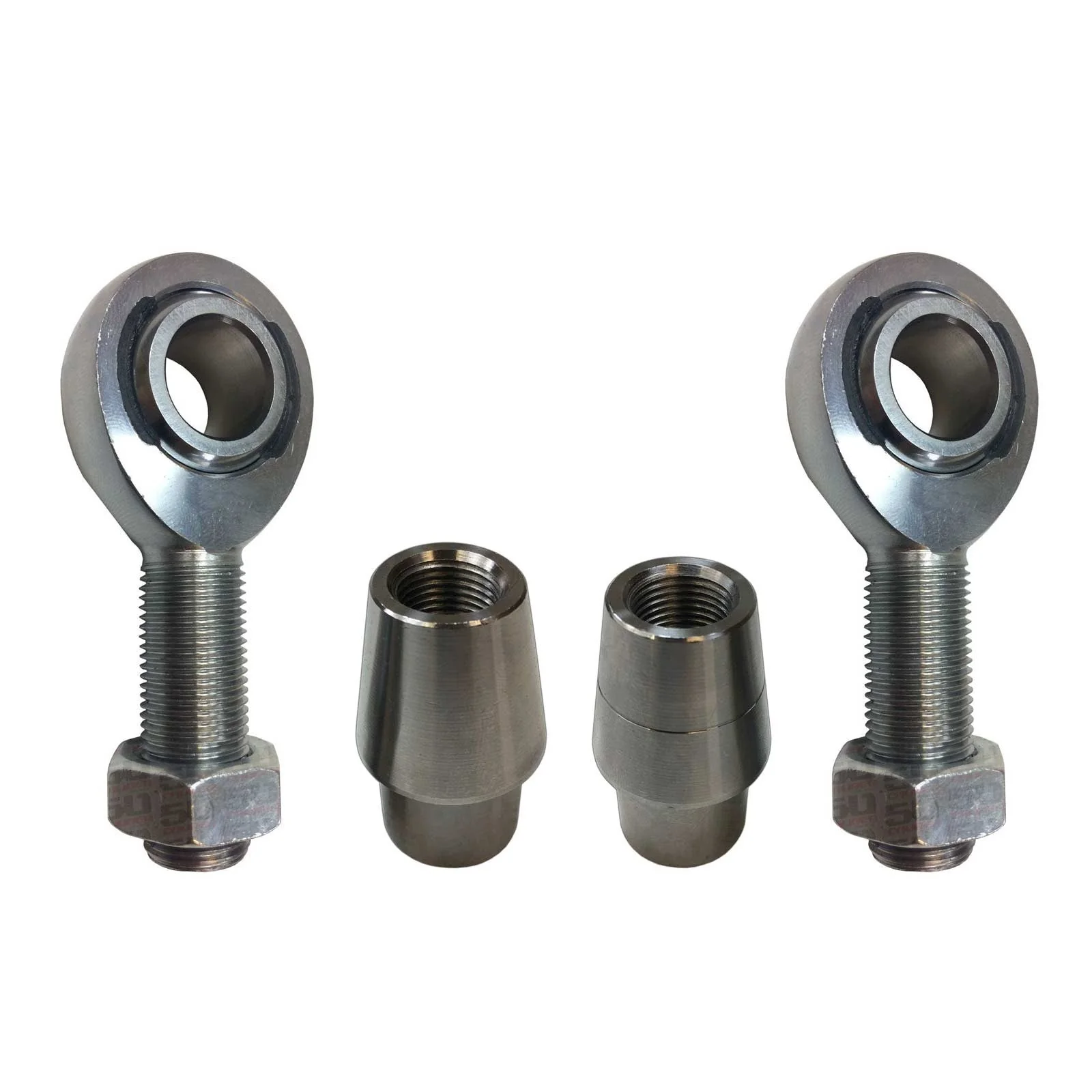

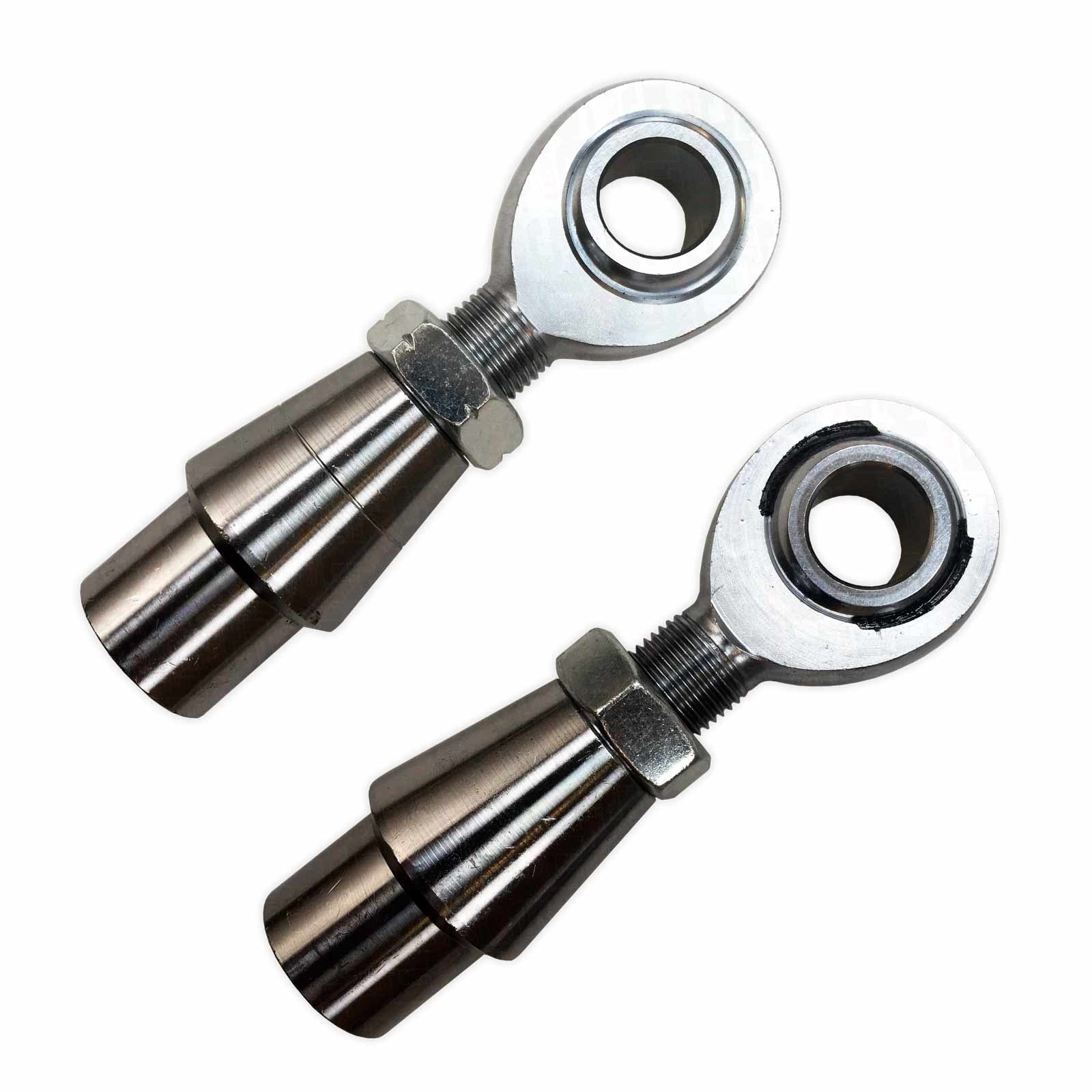

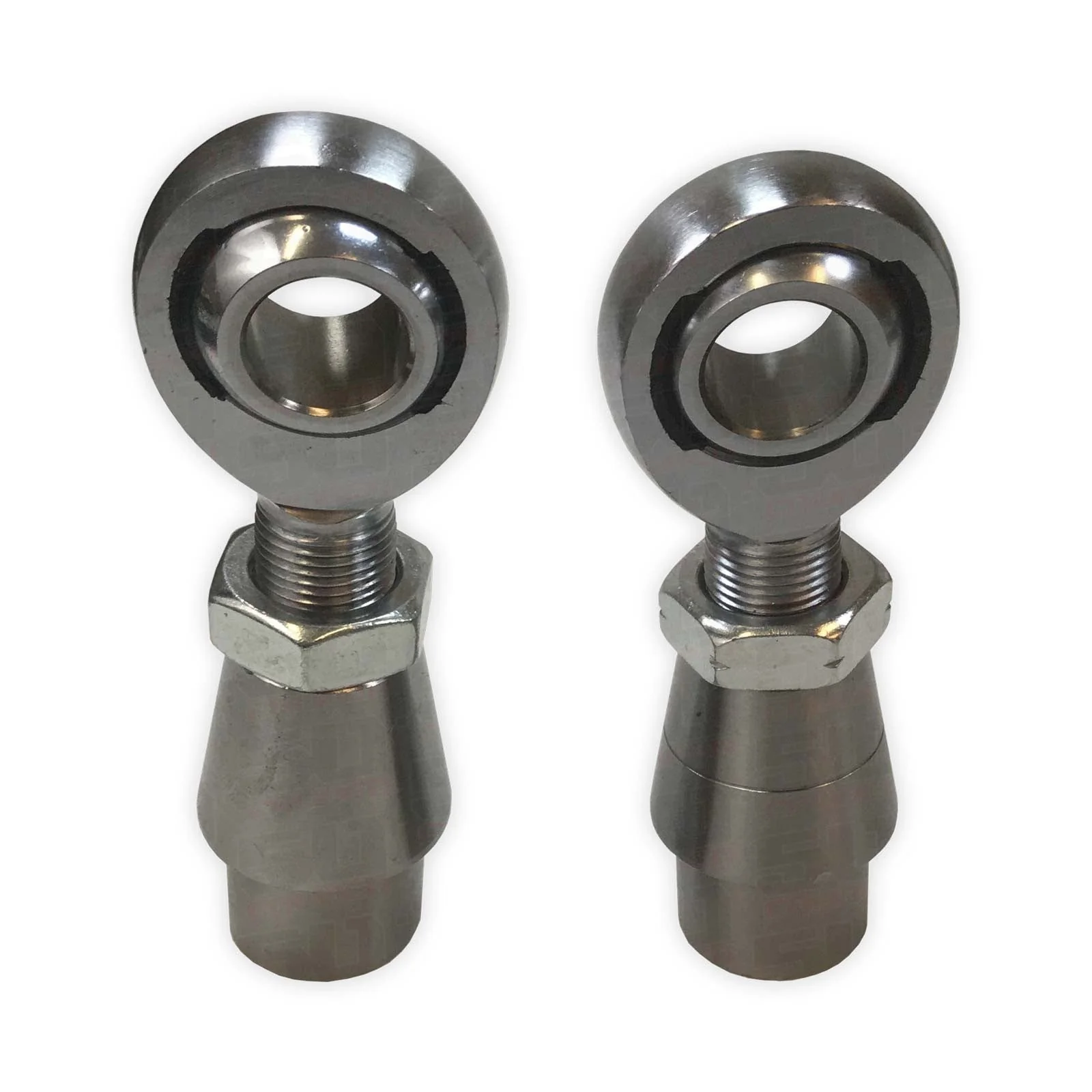

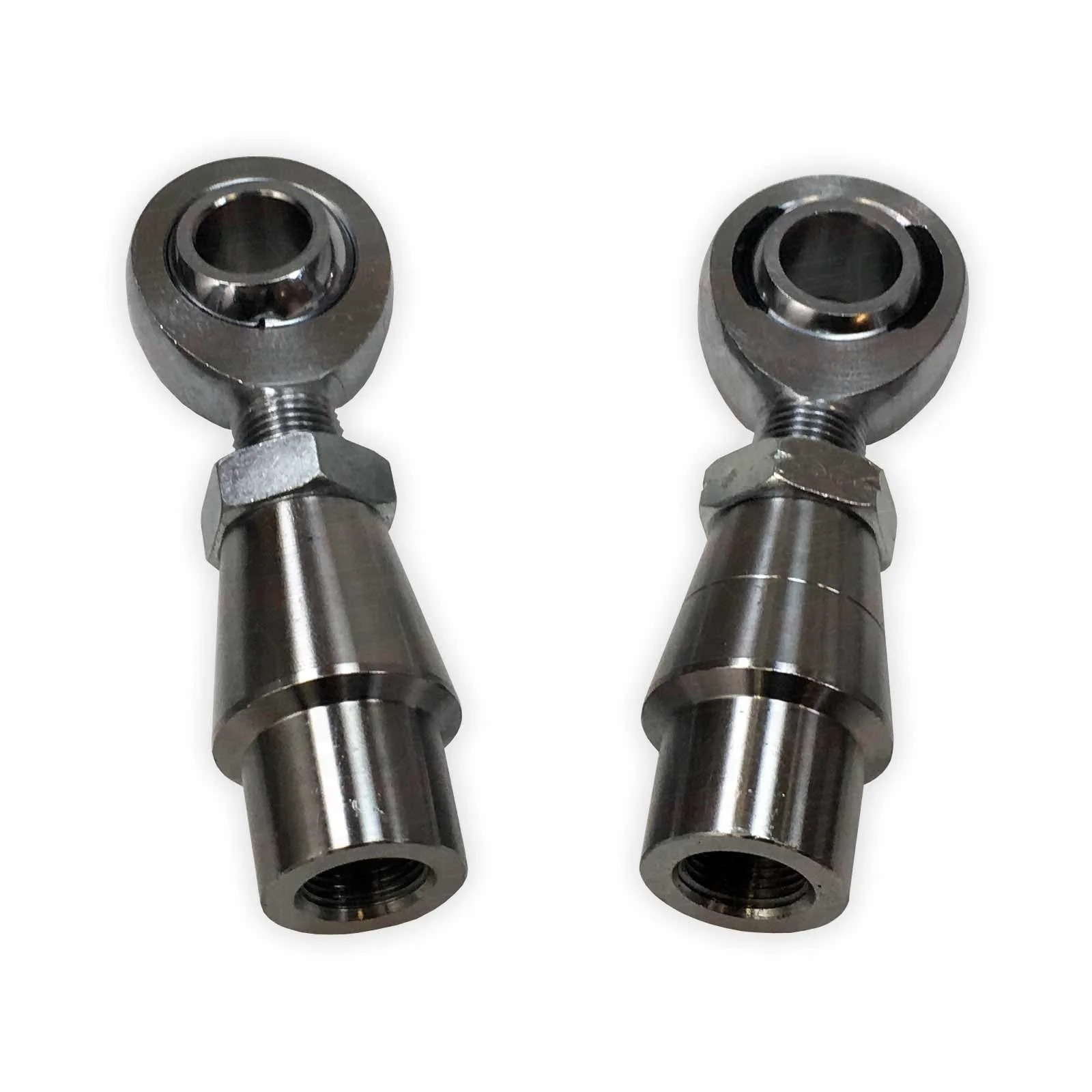

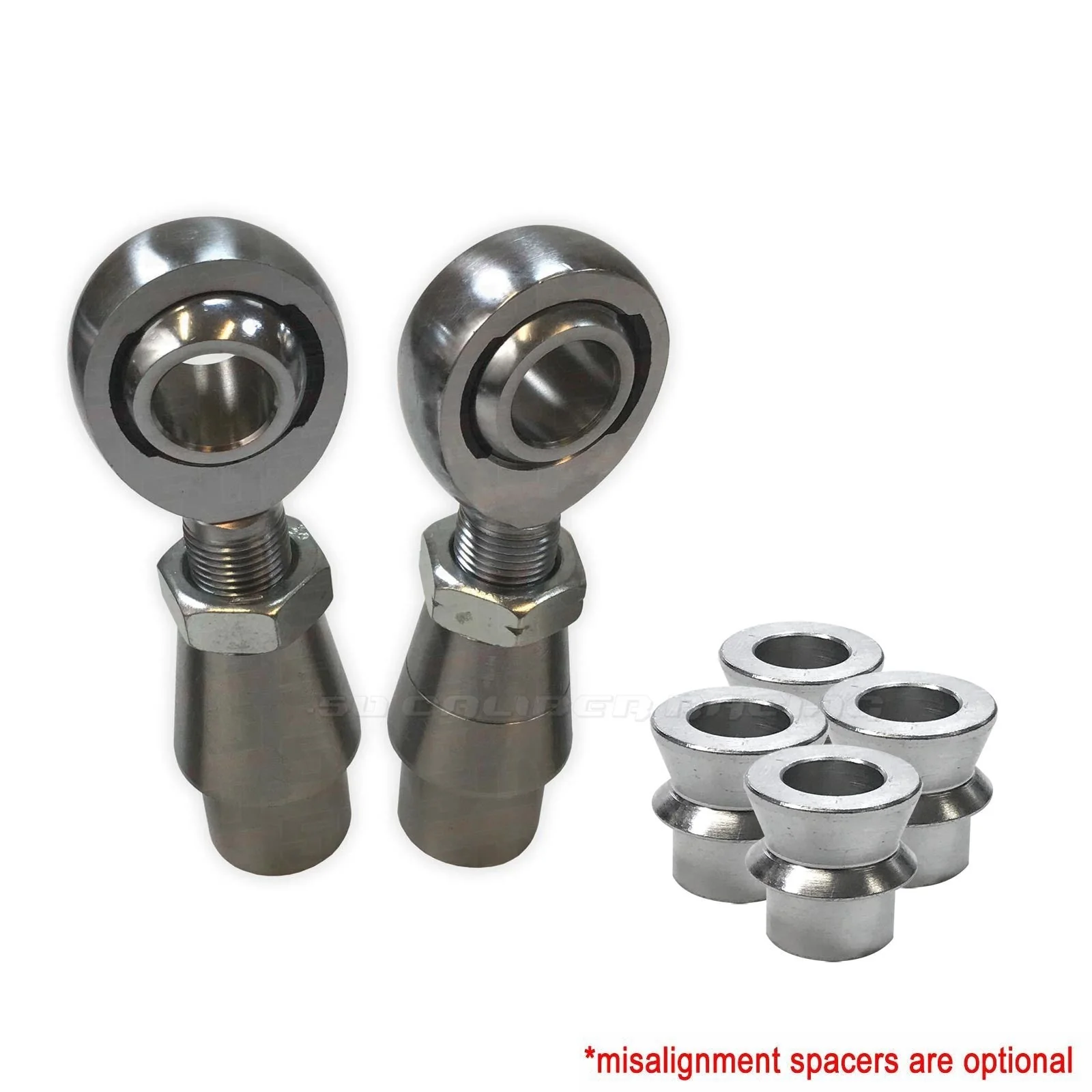

Complete Kit Includes

• ✓ (1) 3/4-16 x 3/4" bore Heim — RH Thread
• ✓ (1) 3/4-16 x 3/4" bore Heim — LH Thread
• ✓ (1) RH Jam Nut
• ✓ (1) LH Jam Nut

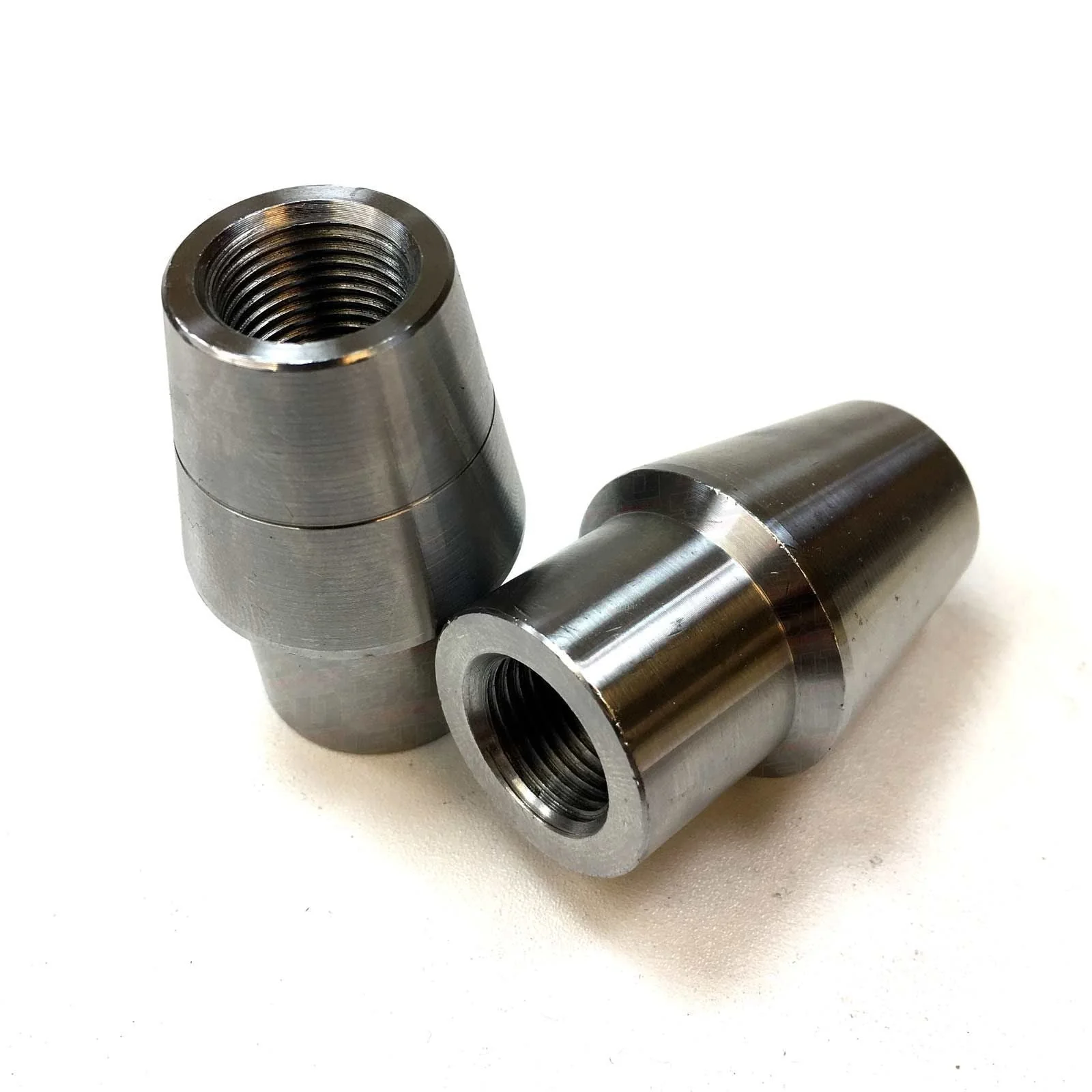

• ✓ (1) RH Weld-In Bung (tubing adapter)
• ✓ (1) LH Weld-In Bung (tubing adapter)

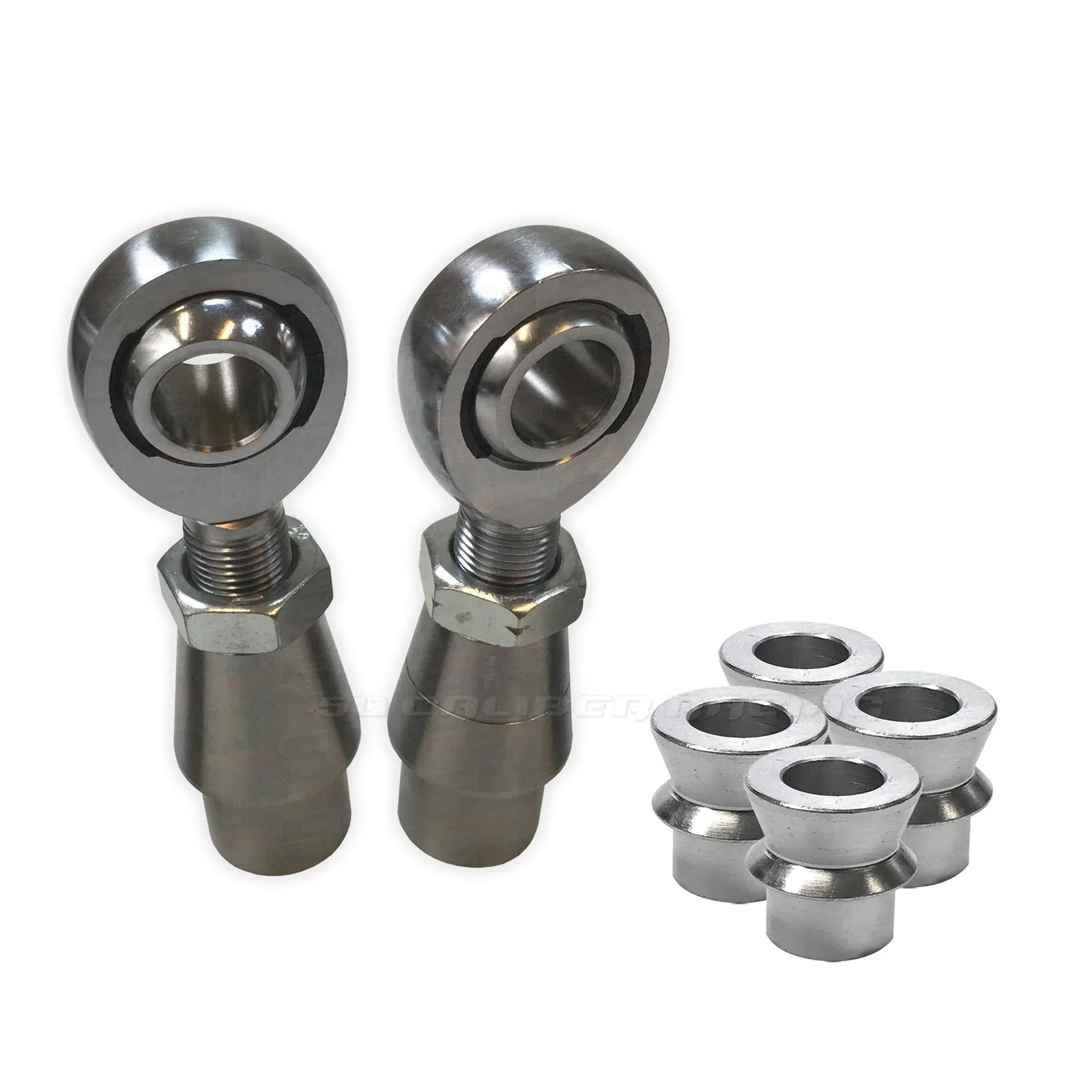

• ✓ Optional: (4) High Misalignment Spacers — select at checkout

Technical Specifications

Vehicle Fitment

• Universal — fits any custom fabrication using 1.5" OD tubing with .095 or .120 wall thickness
• 4x4 trucks and SUVs
• Rock crawlers
• Sand rails
• Hot rods
• Jeeps
• UTVs and off-road vehicles with custom suspension links

Why Chromoly Beats Standard Steel for Suspension Links

Standard mild steel heim joints are fine for light-duty applications, but suspension and steering links see dynamic loads that are far higher than static ratings suggest — especially on rough terrain where impacts are sudden and directional. 4130 chromoly steel has a tensile strength roughly 30–40% higher than mild steel at the same weight, which means you get a stronger joint without adding mass to your unsprung weight. The PTFE liner eliminates the need for grease fittings and resists contamination from mud, water, and debris — critical for off-road builds where you can't always service your links after every run. If you are building a panhard bar, drag link, or radius rod that needs to last, chromoly is the right material and this kit gives you everything to do it properly.

Used this kit to build a custom panhard bar for my rock crawler. The heims are beefy, the bungs welded in perfectly, and the PTFE liner is smooth. Everything fit exactly as described. — Verified Buyer

Great quality chromoly heims at a fair price. Having both RH and LH in one kit with the bungs saves a lot of time sourcing parts. Added the misalignment spacers and couldn't be happier. — Verified Buyer

100% Risk-Free With R1 Protect

• 30-Day Returns — Not the right fit? Send it back, no hassle
• Fast Shipping — In stock and ready to ship
• Expert Support — 801-899-2520 | Real UTV techs, not a call center

Stop sourcing parts from three suppliers. Complete chromoly fab kit — heims, bungs, jam nuts, ready to weld.
