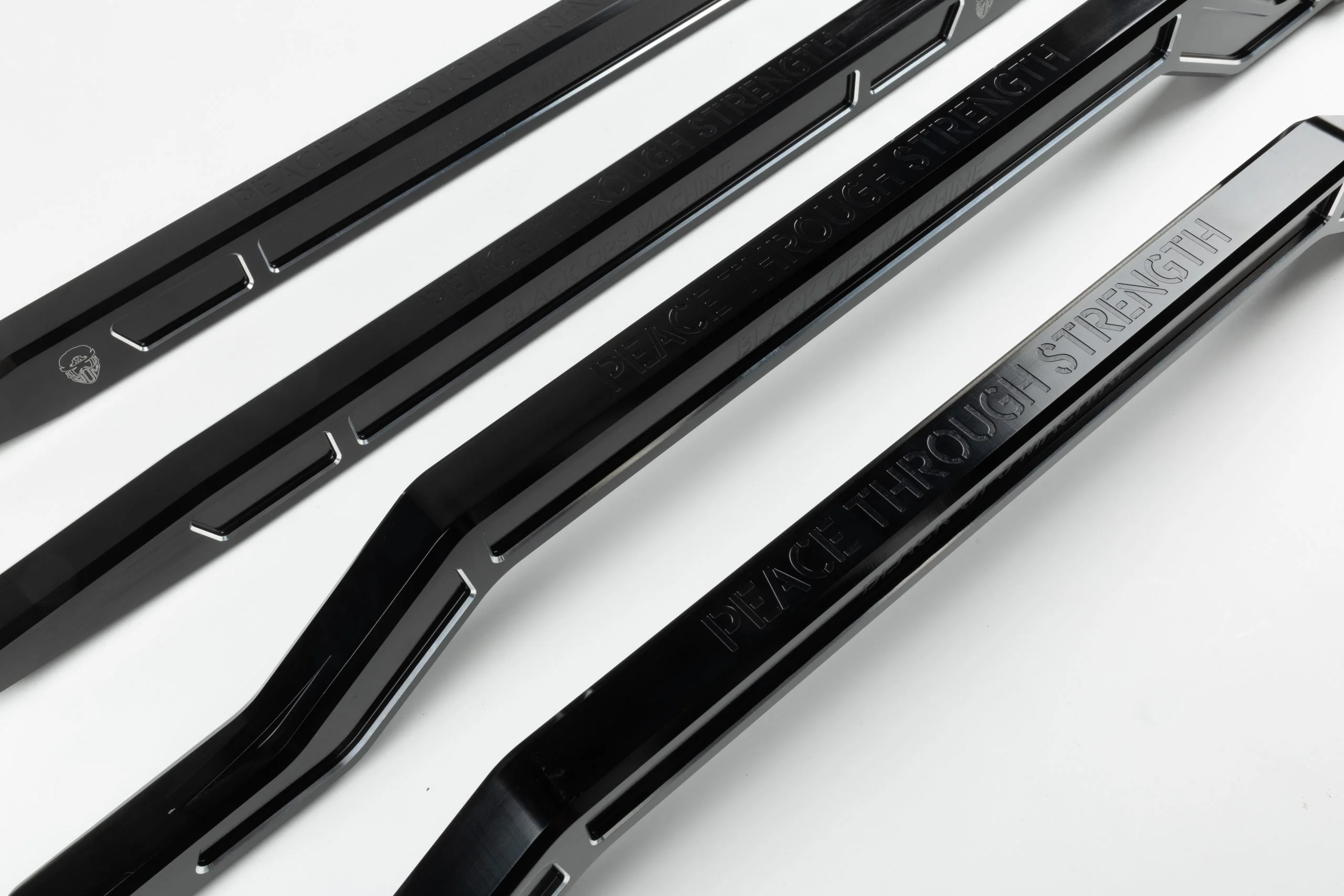

Polaris RZR XP 1000 Billet Radius Rods - High-Clearance + Lifetime Durability (2014-2018)
The Last Radius Rods Your RZR XP 1000 Will Ever Need
Stop breaking stock radius rods on the trail. The Black Ops Machine RZR XP 1000 Billet Radius Rods are machined from 6061 aerospace-grade aluminum and paired with self-lubricating teflon race heims — delivering high-clearance performance and extreme durability at a price that won't wreck your build budget.
Why RZR Riders Choose the XP 1000 Billet Radius Rods
- 6061 Aerospace-Grade Billet Aluminum – Machined from aircraft-quality aluminum for a strength-to-weight ratio that leaves stock rods in the dust.
- Self-Lubricating Teflon Race Heims – Eliminates binding and reduces maintenance, keeping your suspension moving freely through every hit.
- High-Clearance Design – Engineered to maximize ground clearance and protect your suspension components on rocky, technical terrain.
- Direct Bolt-On Installation – No drilling, no fabrication. Fits 2014-2016 (10mm bolts) and 2017.5+ (12mm bolts) models right out of the box.
- Two Fixed Lower Arms + Two Adjustable Upper Rods – Complete geometry correction with 5/8" spherical bearings and rod ends for precise alignment.
- Stainless Steel Spacers Included – Every hardware piece needed for a clean, rattle-free install is in the kit.
- Available in Black Anodized or Raw Finish – Match your build aesthetic without sacrificing protection or performance.
- Lifetime Warranty – Black Ops Machine fully tests every product before it ships and backs it with a lifetime warranty.
Perfect For
🏜️ Desert racing • 🪨 Rock crawling • 🌲 Trail riding • 🏁 Weekend warriors • 🔧 Performance builds • 💥 High-impact terrain

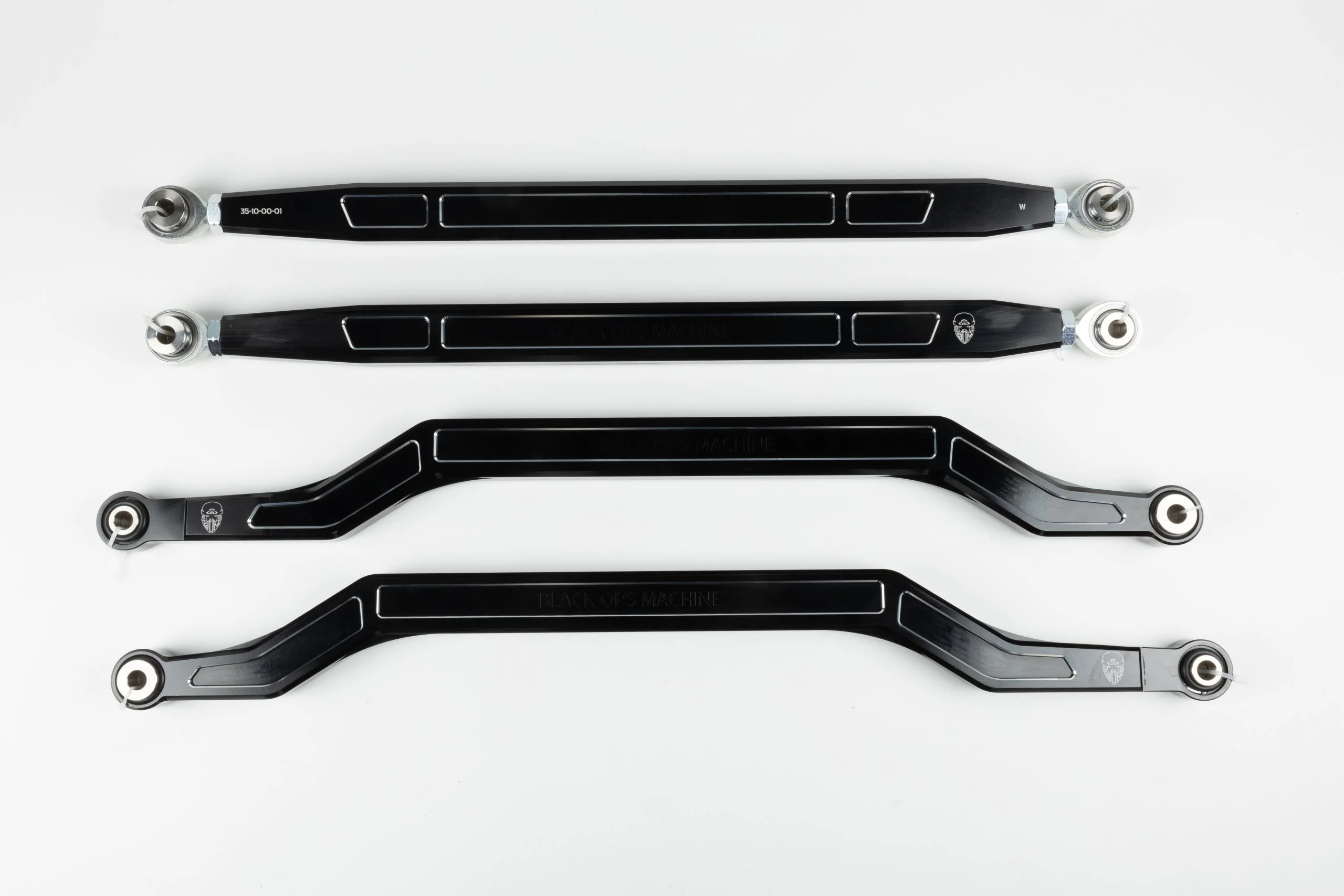

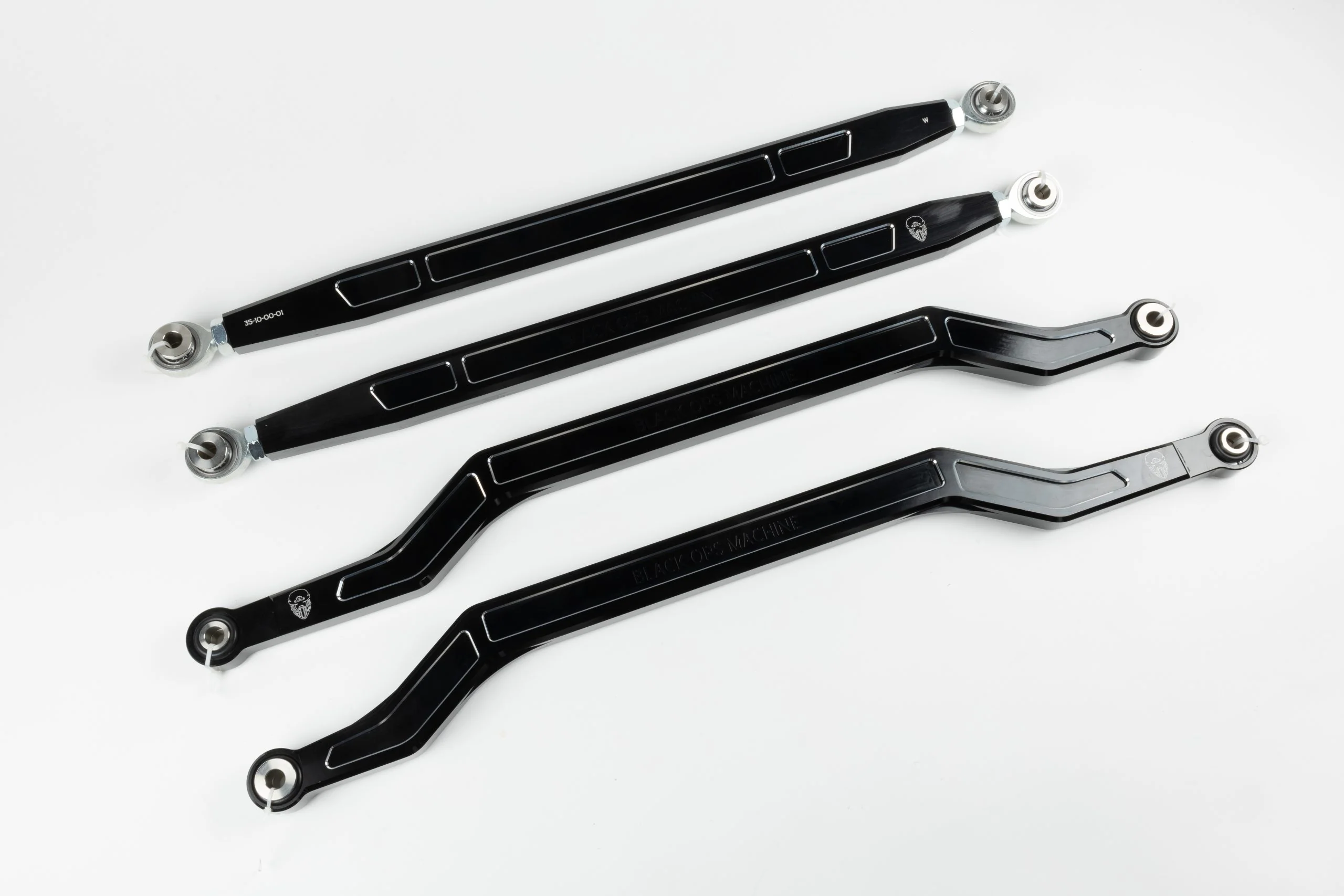

Complete Kit Includes
- ✓ Two (2) fixed-length high-clearance lower arms
- ✓ Two (2) adjustable upper rods
- ✓ 5/8" spherical bearings (lower arms)
- ✓ 5/8" rod ends (upper rods)
- ✓ Teflon-coated race heims
- ✓ Stainless steel spacers
- ✓ All required mounting hardware
Technical Specifications
| Material | 6061 Aerospace-Grade Billet Aluminum |
| Heim Type | Self-Lubricating Teflon Race Heims |
| Bearing Size | 5/8" Spherical Bearings |
| Rod End Size | 5/8" Rod Ends |
| Bolt Size (2014-2016) | 10mm (15mm socket) |
| Bolt Size (2017.5+) | 12mm (18mm socket) |
| Finish Options | Black Anodized / Raw |
| Hardware | Stainless Steel Spacers Included |
| Warranty | Lifetime |
| Weight | 23 lbs |
Vehicle Fitment
- Polaris RZR XP 1000 (2014-2016) — 10mm bolts, 2-seat
- Polaris RZR XP 1000 (2017-2018) — 12mm bolts, 2-seat
- Polaris RZR XP 4 1000 (2014-2016) — 10mm bolts, 4-seat
- Polaris RZR XP 4 1000 (2017-2018) — 12mm bolts, 4-seat
- Polaris RZR Turbo (2017-2018) — 12mm bolts, 2-seat
- Polaris RZR Turbo 4 (2017-2018) — 12mm bolts, 4-seat
Why Billet Aluminum Beats Stock Radius Rods
Stock Polaris radius rods are made from mild steel tubing — adequate for casual trail use, but prone to bending and cracking under the lateral loads of aggressive riding, jumps, or rock impacts. 6061 billet aluminum offers a superior strength-to-weight ratio: it's lighter than steel while resisting deformation under impact. Combined with high-clearance geometry, these rods also reduce the risk of the arm contacting rocks or terrain features that would damage a stock rod. The teflon race heims eliminate the slop and binding common in OEM rubber bushings, giving you more precise steering feedback and longer service life without greasing.
Real Riders, Real Results
"Installed these on my XP 1000 before a desert trip and the difference in steering feel was immediate. No more vague, sloppy front end. These things are bomber — highly recommend Black Ops Machine."
"Bent my stock rods on a rock garden. Put these billet rods on and haven't looked back. Bolt-on fit was perfect, and the raw finish looks aggressive. Worth every penny."
100% Risk-Free With R1 Protect
✓ 30-Day Returns - Don't love it? Return it hassle-free
✓ Fast Shipping - Quick dispatch on in-stock orders
✓ Expert Support - 801-899-2520 | Real UTV techs
⚡ Ready to Upgrade Your Suspension?
In Stock Now
Join thousands of RZR riders who trust Black Ops Machine for trail-proven performance
Stop bending stock rods. Ride harder, go further, and never look back.
