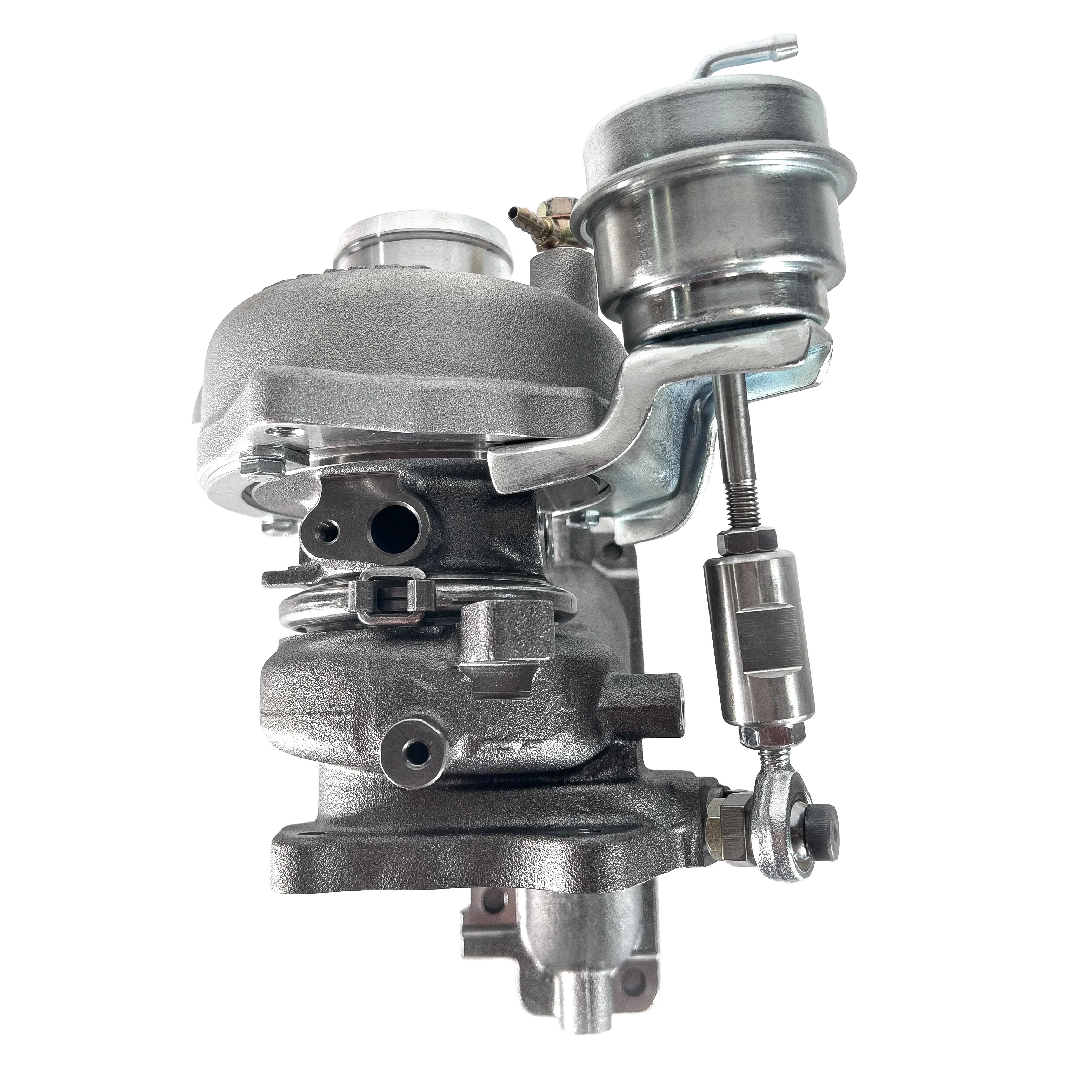

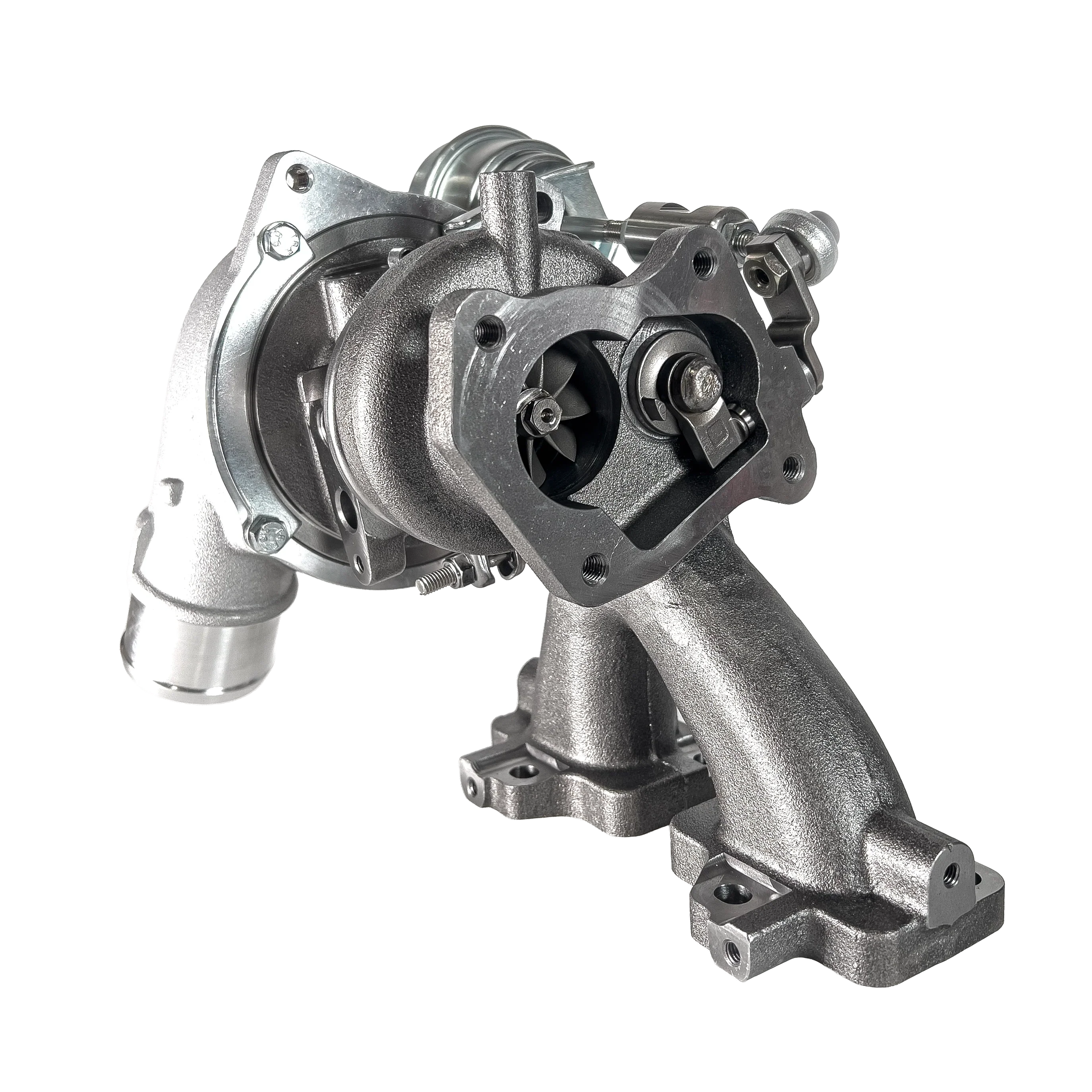

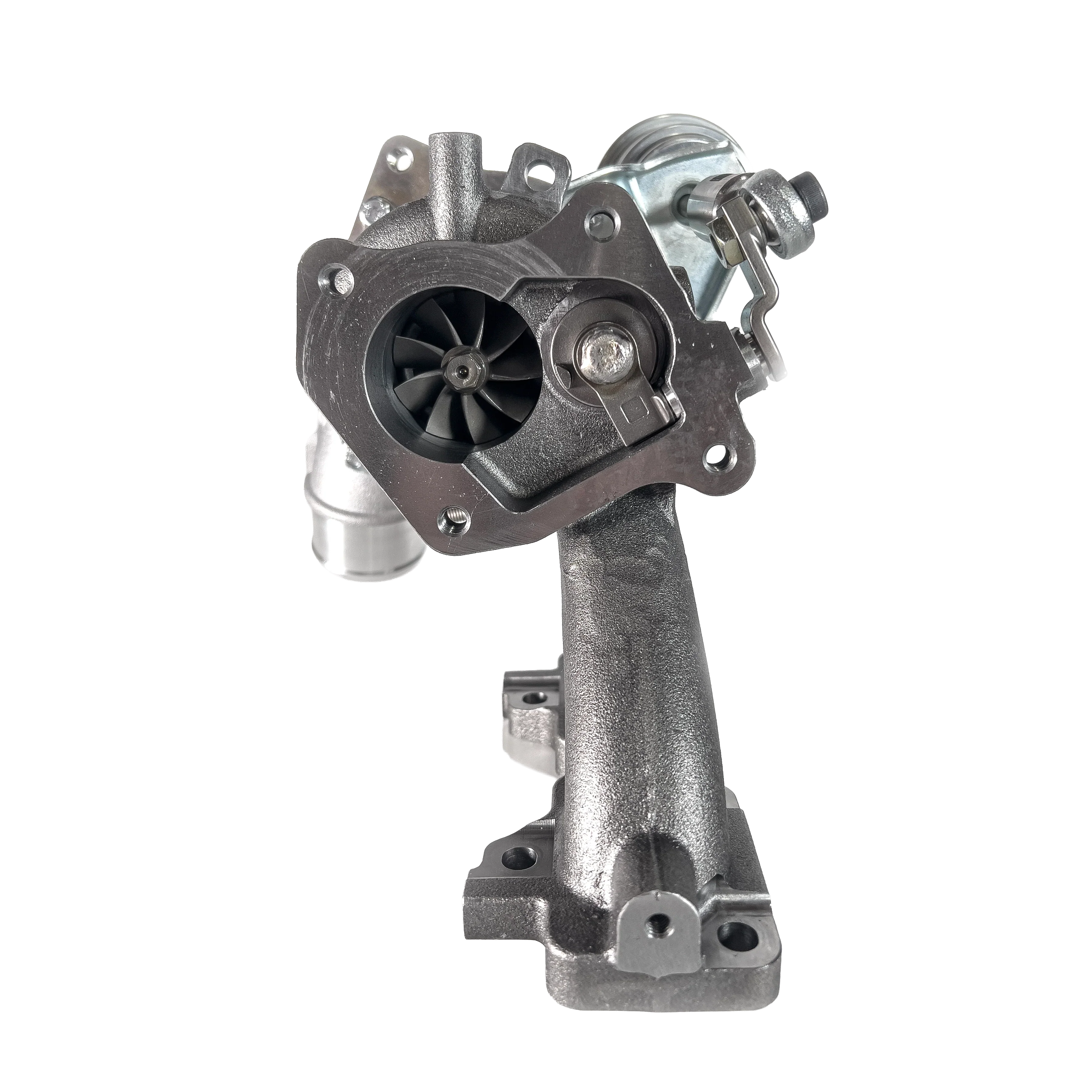

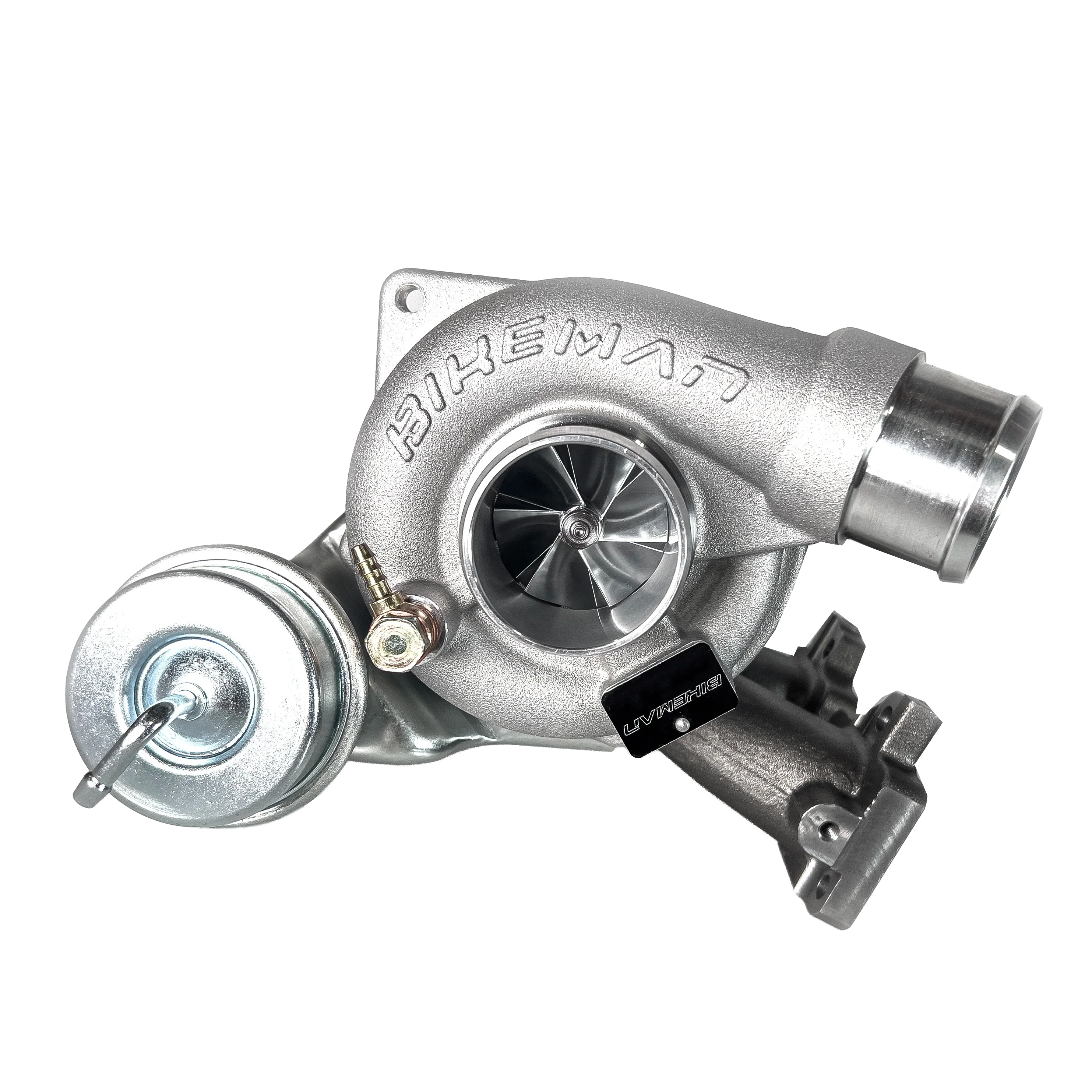

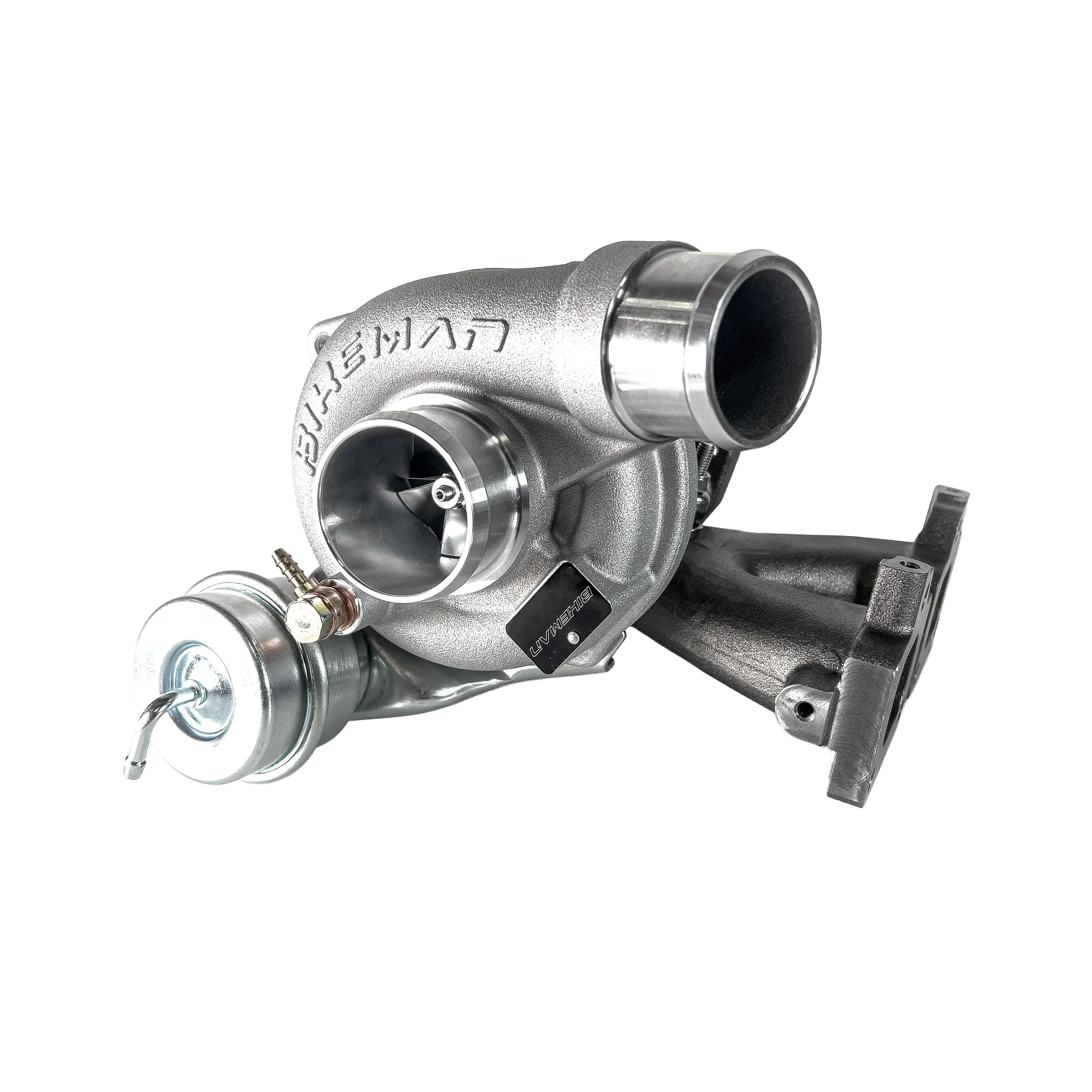

OEM Replacement Turbocharger for Polaris RZR Pro XP / Turbo R
Replace your stock ProS, ProXP, or TurboR RZR Turbo with this direct bolt-on solution. This unit is designed for seamless installation and is compatible with all the parts you need right out of the box.
Compatibility and Installation
- Fitment: Bolt-on OEM replacement for 2020+ Pro XP or Turbo R. 2020-2023 models must use Billet Aluminum Oil Drain (sku: 10-312).
- XPT Models: Can be used on older XPT models without an adaption kit.
- Older XP Turbos: This turbo can be adapted to older XP turbos without a kit.
Tuning Note: We also offer tunes that optimize this turbo's performance along with other hardware changes like an exhaust, should you decide to pursue maximum power.
Important Installation Notes
- Core Exchange: No Core exchange needed. The price is for the turbocharger purchased outright.
- Drain Tube Requirement: Requires billet drain tube if your existing turbo has a bolt together center oil section vs the newer V-band clamp center section.
Technical Specifications
| Component | Detail |
|---|---|
| Compressor Specs | 39/40 inducer/exducer (Stock Reference) |
| Bearing System | 360° Thrust |
Highly Recommended Upgrade: Add the Turbosmart Actuator
Upgrade your performance and reliability with the superior Turbosmart Wastegate Actuator for a special bundled discount!
Why Upgrade? (Strongly Recommended)
The stock wastegate actuator is often the weakest link in a factory turbo system. The Turbosmart IWG75 Actuator replaces the OEM unit to provide:
- Faster Boost Response: The increased 'Working Ratio' is engineered to deliver peak boost earlier in the RPM band for immediate throttle response.
- Sustained Performance: It is built to hold boost pressures more accurately and for longer into the higher RPMs, eliminating the 'boost taper' common with stock units.
- Enhanced Durability: Features high-grade billet aluminum construction and a proprietary Silicon Nomex Diaphragm for superior reliability and long life, especially under demanding conditions.
The result is a significantly broader and more usable power curve that perfectly complements the performance of your new replacement turbocharger.
We offer a 1 year from purchase date warranty on Bikeman turbos
Note no warranty for race machines
Recommended Add-Ons (Gaskets)
For a leak-free installation, we recommend adding the required gaskets.
| Item | SKU | Price |
|---|---|---|
| Turbo Gasket | CM-EX1307042AM | $30.00 |
| Exhaust Gasket | CM-EX1408064AM | $20.00 |
